FRAME FITTINGS

ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA

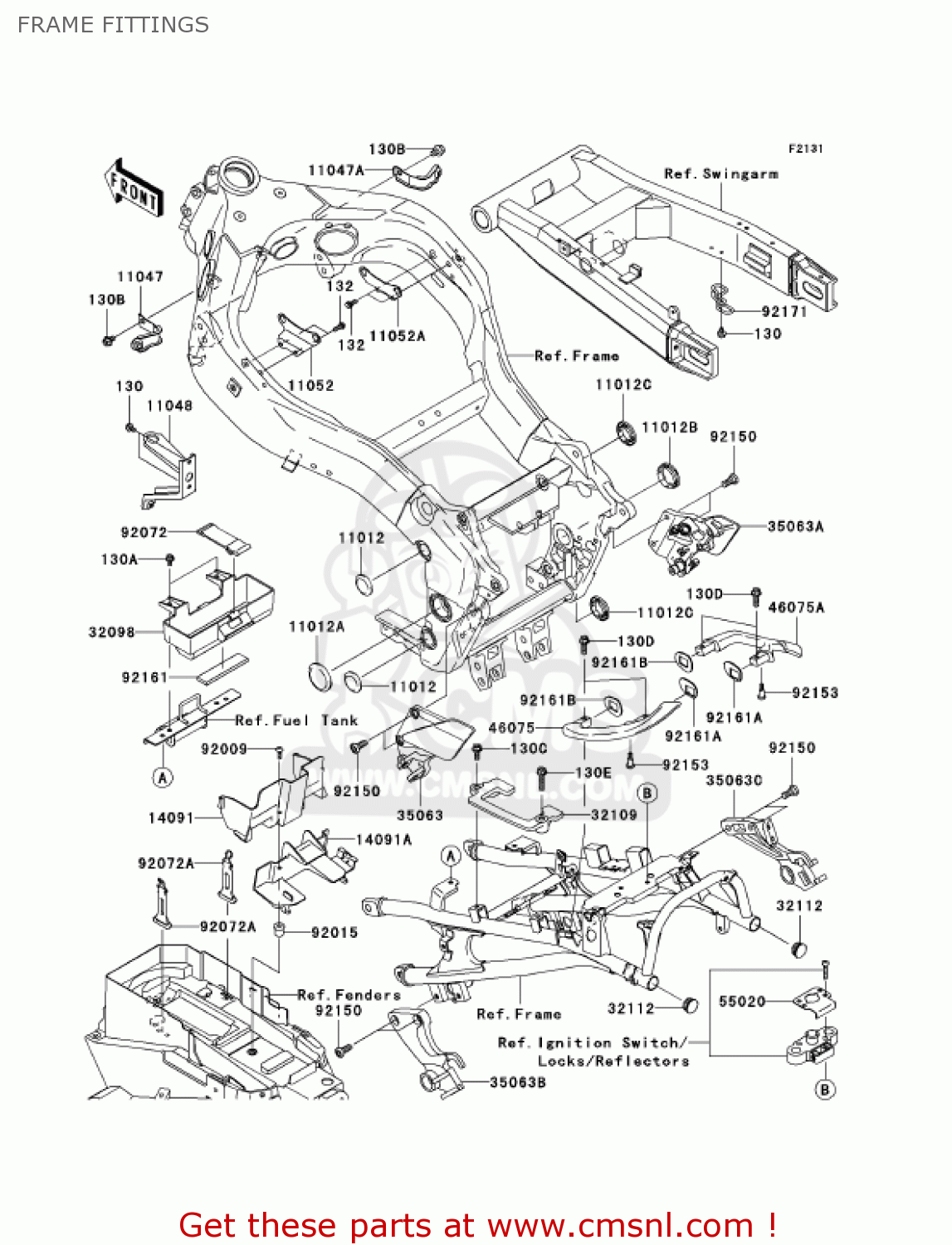

Frame fittings diagram ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA

FRAME FITTINGS ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA
FRAME FITTINGS ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA
FRAME FITTINGS ZX1200C1 ZZR1200 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0610
ref: 130
BOLT-FLANGED
130J0610
€ 1.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
130C
130J0820
ref: 130C
BOLT-FLANGED,8X20
130J0820
€ 0.50
130D
130J0825
ref: 130D
BOLT-FLANGED,8X25,BLA
130J0825
€ 2.00
130E
130J0835
ref: 130E
BOLT-FLANGED,8X35,BLA
€ 2.50
132
132J0616
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
11012
110121460
ref: 11012
CAP
110121460
€ 7.50
11012A
110121657
ref: 11012A
CAP
110121657
€ 11.00
11012B
110121688
ref: 11012B
CAP
110121688
€ 11.50
11012C
110121821
ref: 11012C
CAP,PIVOT
110121821
€ 8.50
11047
110471931
ref: 11047
BRACKET,RADIATOR,UPP,
110471931
€ 9.50
11047A
110471932
ref: 11047A
BRACKET,RADIATOR,UPP,
€ 9.50
11048
110481169
ref: 11048
BRACKET,OIL COOLER&RA
110481169
€ 23.50
11052
110521695
ref: 11052
BRACKET,IGNITION COIL
€ 5.50
11052A
110521696
ref: 11052A
BRACKET,IGNITION COIL
€ 5.50
14091
140911459
ref: 14091
COVER,STORAGE,FR
€ 22.00
14091A
140911460
ref: 14091A
COVER,STORAGE,RR
€ 22.00
32098
320981141
ref: 32098
CASE-TOOL
€ 22.00
32109
321091306
ref: 32109
GRIP-FRAME
€ 68.00
32112
32112008
ref: 32112
PLUG,22X3
32112008
€ 3.00
35063
350631216458
ref: 35063
STAY,FR,LH,P.SILVER
350631216458
€ 142.50
35063A
350631217458
ref: 35063A
STAY,FR,RH,P.SILVER
350631217458
€ 131.50
35063B
350631218458
ref: 35063B
STAY,RR,LH,P.SILVER
€ 103.00
35063C
350631219458
ref: 35063C
STAY,RR,RH,P.SILVER
350631219458
€ 98.00
46075
46075120621
ref: 46075
GRIP,GRAB RAIL,LH,F.B
46075120621
€ 82.00
46075A
46075120721
ref: 46075A
GRIP,GRAB RAIL,RH,F.B
46075120721
€ 82.00
55020
550201498
ref: 55020
GUARD,SEAT STRIKER
€ 13.00
92009
920091655
ref: 92009
SCREW, 5X18 BLACK
920091655
€ 2.50
92015
920151757A
ref: 92015
NUT,5MM
920151757A
€ 5.00
92072
920721176
ref: 92072
BAND,BATTERY CASE
920721176
€ 10.50
92072A
920721428
ref: 92072A
BAND,U LOCK
€ 13.00
92150
921501839
ref: 92150
BOLT
921501839
€ 1.50
92153
921531180
ref: 92153
BOLT,SOCKET,6MM
€ 4.00
92161
921611274
ref: 92161
DAMPER
€ 2.00
92161A
921611316
ref: 92161A
DAMPER,GRAB RAIL,RR
921611316
€ 2.00
92161B
921611317
ref: 92161B
DAMPER,GRAB RAIL,FR
921611317
€ 2.00
92171
921711532
ref: 92171
CLAMP,HOSE
€ 7.00
