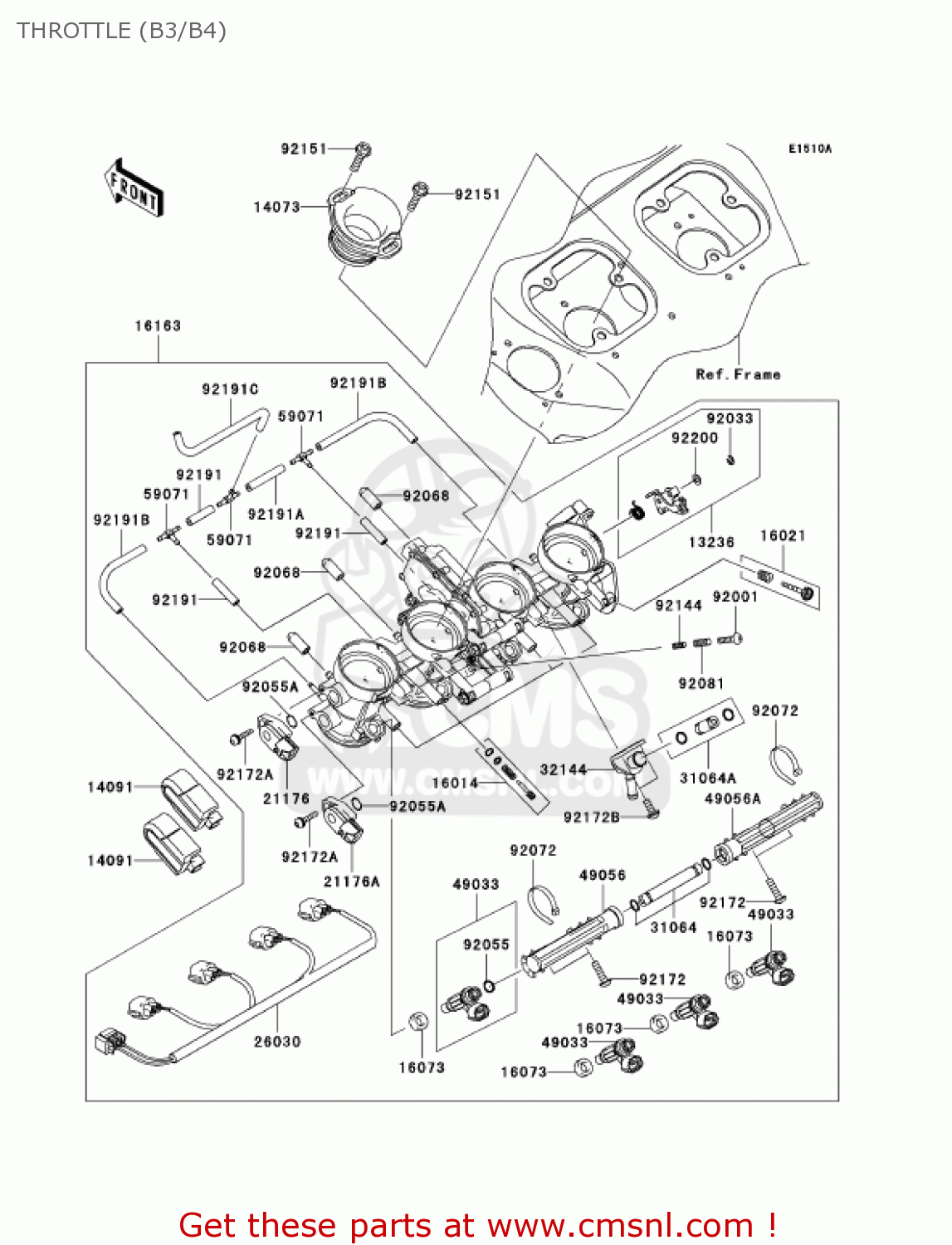

THROTTLE (B3/B4)

ref

part #

description

quantity

13236

132360065
ref: 13236

LEVER-COMP

€ 70.50

14073

140730042
ref: 14073

DUCT,FUNNEL

€ 23.00

14091

140910286
ref: 14091

COVER

€ 8.50

16014

160140002
ref: 16014

SCREW-PILOT AIR

€ 17.50

16021

160210009
ref: 16021

SCREW-THROTTLE STOP

€ 92.50

16073

160733707
ref: 16073

INSULATOR

€ 4.00

16163

161630043
ref: 16163

THROTTLE-ASSY

€ 3,189.00

21176

211760002
ref: 21176

SENSOR,TPS,MAIN

€ 188.00

21176A

211760003
ref: 21176A

SENSOR,MAIN

€ 191.50

26030

260301672
ref: 26030

HARNESS

€ 98.00

31064

310640019
ref: 31064

PIPE-COMP,FUEL

€ 52.00

31064A

310640020
ref: 31064A

PIPE-COMP,FUEL

€ 31.50

32144

321440003
ref: 32144

PIPE-ASSY,FUEL

€ 29.50

49033

490330003
ref: 49033

NOZZLE-INJECTION

€ 147.00

49056

490560007
ref: 49056

PIPE-INJECTION

€ 84.00

49056A

490560008
ref: 49056A

PIPE-INJECTION

€ 84.00

59071

590713752
ref: 59071

JOINT,3WAY,T

€ 6.00

92001

920011998
ref: 92001

BOLT,THROTTLE ADJUST

€ 11.50

92033

920330004
ref: 92033

RING-SNAP,FAST IDLE

€ 2.00

92055

920551622
ref: 92055

RING-O,INJECTION NOZZ

€ 1.50

92055A

920551671
ref: 92055A

RING-O,THROTTLE SENSO

€ 2.50

92068

92068006
ref: 92068

RUBBER PLUG

€ 2.50

92072

920720012
ref: 92072

BAND,SUB-HARNESS

€ 3.00

92081

920811620
ref: 92081

SPRING,THROTTLE ADJUS

€ 3.00

92144

921441451
ref: 92144

SPRING

€ 7.00

92151

921511236
ref: 92151

BOLT,6X22

€ 1.50

92172

921720064
ref: 92172

SCREW,PIPE INJECTION

€ 2.00

92172A

921720080
ref: 92172A

SCREW

€ 3.00

92172B

921720169
ref: 92172B

SCREW

€ 3.00

92191

921910025
ref: 92191

TUBE

€ 1.50

92191A

921910150
ref: 92191A

TUBE,3X7X45

€ 4.00

92191B

921910151
ref: 92191B

TUBE,3X7X110

€ 8.00

92191C

921910152
ref: 92191C

TUBE,3X7X160.5

€ 11.50

92200

922000033
ref: 92200

WASHER,FAST IDLE

€ 1.50

all assemblies
