Genuine ZX Kawasaki Parts delivered quickly!


ENGINE COVER(S)

ZX1200B4 ZX12R 2005 USA CALIFORNIA CANADA

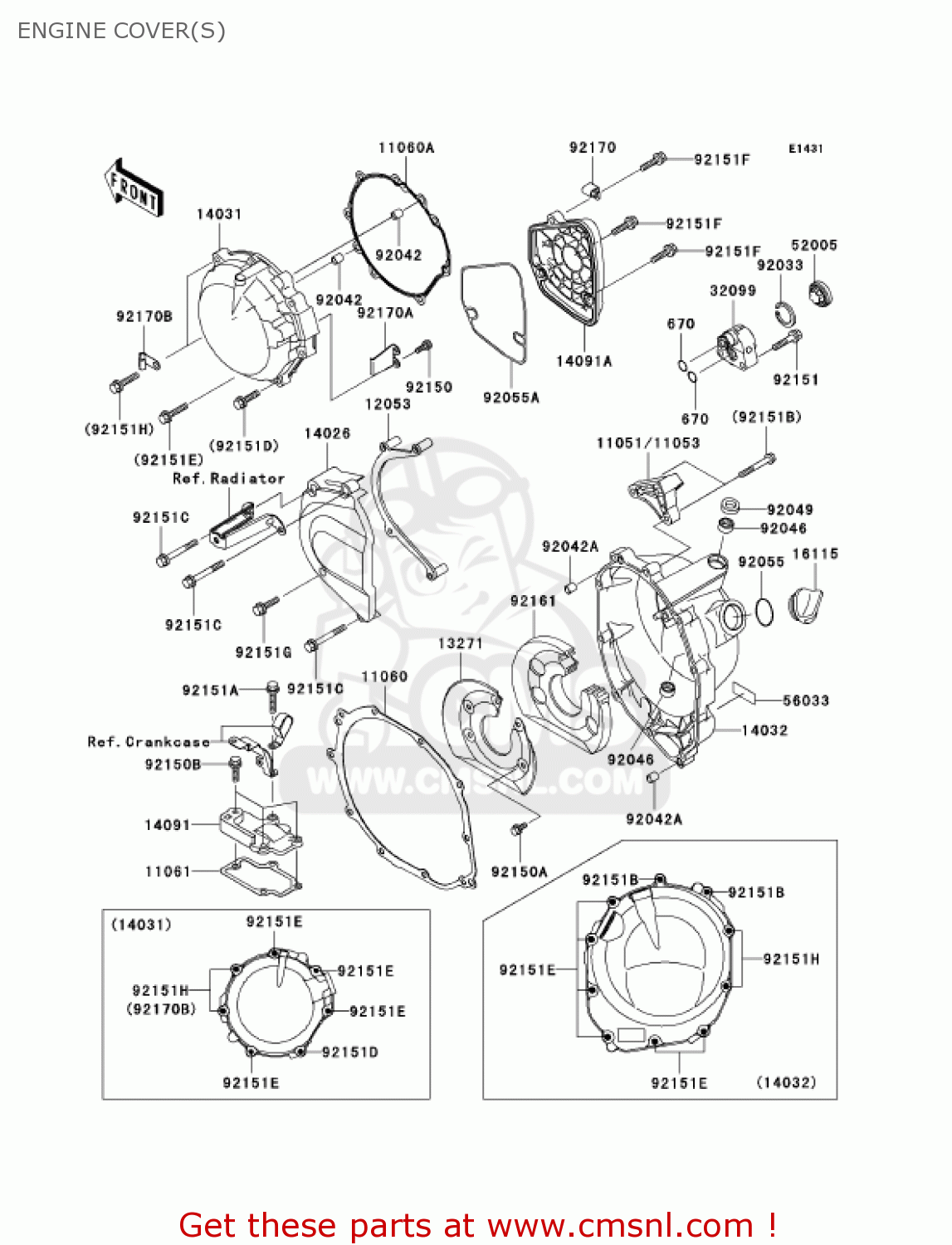

Engine cover(s) diagram ZX1200B4 ZX12R 2005 USA CALIFORNIA CANADA

ENGINE COVER(S) ZX1200B4 ZX12R 2005 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX1200B4 ZX12R 2005 USA CALIFORNIA CANADA
ENGINE COVER(S) ZX1200B4 ZX12R 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
670
670D2012
ref: 670
O RING,12MM
670D2012
€ 1.50
11053
110531283
ref: 11053
BRACKET,CABLE
€ 27.00
11060
110601910
ref: 11060
GASKET,CLUTCH COVER (NAS)
110601910
€ 21.00
11060A
110601911
ref: 11060A
GASKET,GENERATOR COVE (NAS)
110601911
€ 32.50
11061
110611087
ref: 11061
GASKET,BREATHER COVER (NAS)
110611087
€ 8.00
12053
120531434
ref: 12053
GUIDE-CHAIN
120531434
€ 38.50
13271
132711229
ref: 13271
PLATE,SOUND ARRESTER
132711229
€ 13.00
14026
140261266
ref: 14026
COVER-CHAIN
140261266
€ 200.00
14031
140311404
ref: 14031
COVER-GENERATOR
140311404
€ 257.50
14032
140321498
ref: 14032
COVER-CLUTCH
140321498
€ 267.00
14091
140911129
ref: 14091
COVER,BREATHER
€ 29.50
14091A
140911446
ref: 14091A
COVER,PULSING
€ 93.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
32099
320991213
ref: 32099
CASE,OIL GAUGE
€ 34.00
52005
520051120
ref: 52005
GAUGE
520051120
€ 14.50
56033
560331203
ref: 56033
LABEL-MANUAL,OIL CAPA
560331203
€ 4.50
92033
920331305
ref: 92033
RING-SNAP
920331305
€ 1.50
92042
92042007
ref: 92042
PIN-DOWEL
92042007
€ 4.00
92042A
92042044
ref: 92042A
PIN,DOWEL
92042044
€ 3.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491475
ref: 92049
SEAL-OIL,CLUTCH RELEA
920491475
€ 2.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551601
ref: 92055A
RING-O
920551601
€ 13.00
92150
921501180
ref: 92150
BOLT
921501180
€ 2.50
92150A
921501406
ref: 92150A
BOLT
921501406
€ 2.00
92150B
921501846
ref: 92150B
BOLT,6X22
€ 3.00
92151
921511134
ref: 92151
BOLT,6X30
921511134
€ 1.50
92151A
921511139
ref: 92151A
BOLT,6X30
921511139
€ 1.50
92151B
921511521
ref: 92151B
BOLT,6X45
921511521
€ 1.50
92151C
921511545
ref: 92151C
BOLT,6X50
921511545
€ 1.50
92151D
921511546
ref: 92151D
BOLT,6X25
921511546
€ 1.50
92151E
921511547
ref: 92151E
BOLT,6X30
921511547
€ 1.50
92151F
921511556
ref: 92151F
BOLT,6X25
921511556
€ 1.50
92151G
921511773
ref: 92151G
BOLT
921511773
€ 1.50
92151H
921511883
ref: 92151H
BOLT
921511883
€ 1.50
92161
921611056
ref: 92161
DAMPER,SOUND ARRESTER
€ 22.50
92170
921701577
ref: 92170
CLAMP
921701577
€ 3.00
92170A
921701579
ref: 92170A
CLAMP
921701579
€ 2.50
92170B
921701900
ref: 92170B
CLAMP
€ 4.00
