Genuine ZX Kawasaki Parts delivered quickly!


STARTER MOTOR

ZX1100D9 NINJAZX11 2001 USA CALIFORNIA

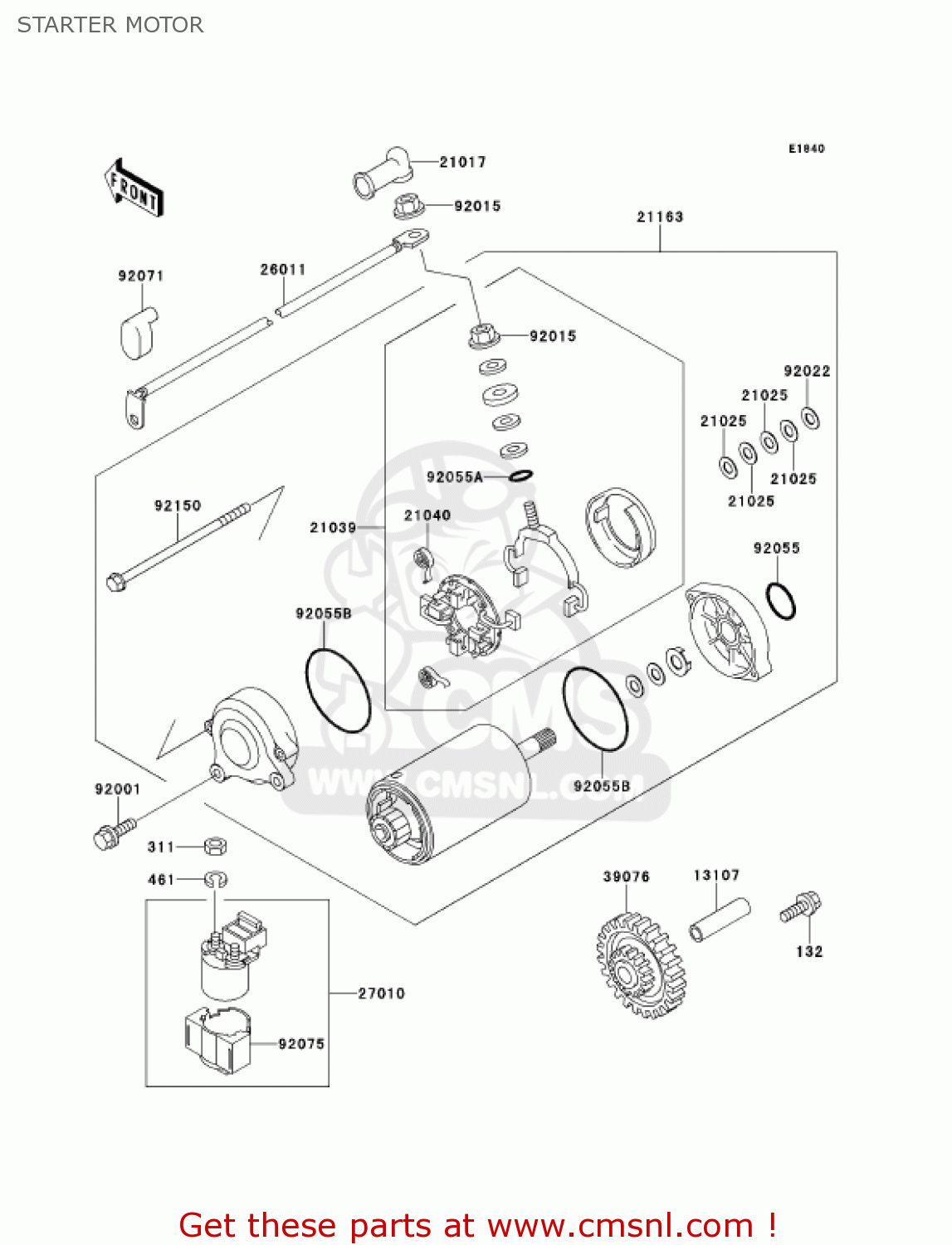

Starter motor diagram ZX1100D9 NINJAZX11 2001 USA CALIFORNIA

STARTER MOTOR ZX1100D9 NINJAZX11 2001 USA CALIFORNIA
STARTER MOTOR ZX1100D9 NINJAZX11 2001 USA CALIFORNIA
STARTER MOTOR ZX1100D9 NINJAZX11 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
311
311B0600
ref: 311
NUT,6MM
311B0600
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
461F0600
€ 0.50
13107
131071106
ref: 13107
SHAFT,IDLE GEAR
131071106
€ 11.50
21017
21017017
ref: 21017
GROMMET-CORD
21017017
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
21025011
€ 4.00
21039
210391060
ref: 21039
BRUSH,CARBON
210391060
€ 74.00
21040
210401055
ref: 21040
SPRING-BRUSH
210401055
€ 5.50
21163
211631212
ref: 21163
STARTER-ELECTRIC
€ 574.50
26011
260111479
ref: 26011
WIRE-LEAD,STARTER MOT
€ 40.50
27010
270101254
ref: 27010
SWITCH,MAGNETIC
270101254
€ 124.00
39076
390761061
ref: 39076
LIMITER,STARTER IDLE
390761061
€ 105.00
92001
920011947
ref: 92001
BOLT,6X20
920011947
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
920151476
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
920221132
€ 4.00
92055
920551276
ref: 92055
RING-O
920551276
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
920551370
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
920551381
€ 6.50
92071
920711130
ref: 92071
GROMMET,TERMINAL
920711130
€ 7.00
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
920751863
€ 14.00
92150
921501693
ref: 92150
BOLT
€ 6.50
