CARBURETOR
ZX1100D9 NINJAZX11 2001 USA CALIFORNIA

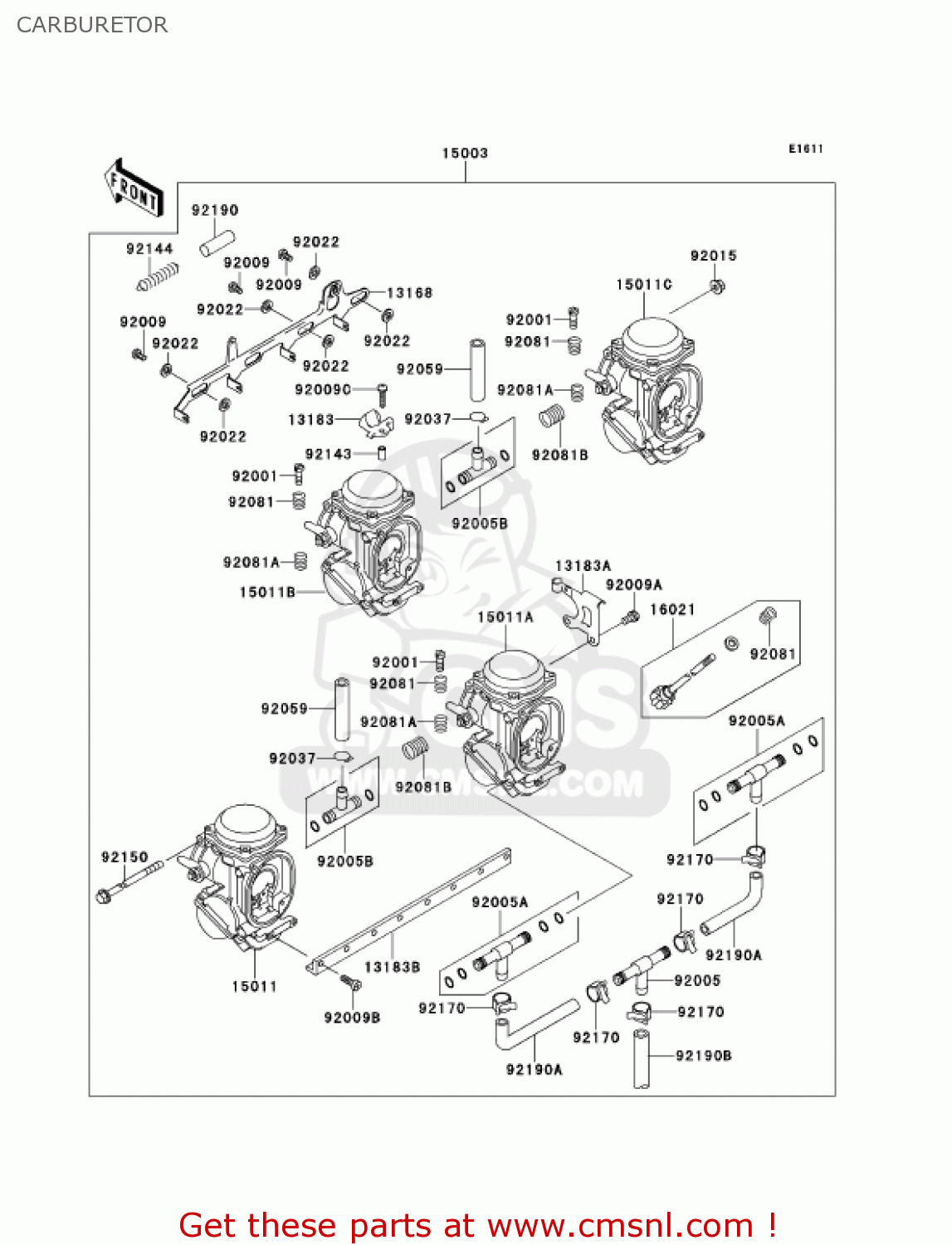

Carburetor diagram ZX1100D9 NINJAZX11 2001 USA CALIFORNIA
CARBURETOR ZX1100D9 NINJAZX11 2001 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13168
131681405
ref: 13168
LEVER,STARTER
€ 87.00
13183
131831592
ref: 13183
PLATE,STARTER CABLE
€ 26.00
13183A
131831606
ref: 13183A
PLATE,THROTTLE CABLE
€ 36.00
13183B
131831321
ref: 13183B
PLATE,CARBURETOR,STAY
€ 59.50
15003
150031379
ref: 15003
CARBURETOR ASSEMBLY
€ 1,010.50
15011
150111395
ref: 15011
CARBURETOR,OUTSIDE,LH
€ 430.50
15011A
150111396
ref: 15011A
CARBURETOR,INSIDE,LH
€ 430.50
15011B
150111397
ref: 15011B
CARBURETOR,INSIDE,RH
€ 430.50
15011C
150111398
ref: 15011C
CARBURETOR,OUTSIDE,RH
€ 430.50
16021
160211190
ref: 16021
SCREW-THROTTLE STOP
€ 81.00
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051119
ref: 92005
FITTING,T-TYPE
€ 17.50
92005A
920051294
ref: 92005A
FITTING
€ 22.00
92005B
920051338
ref: 92005B
FITTING
€ 17.00
92009
920091262
ref: 92009
SCREW
€ 4.00
92009A
920091365
ref: 92009A
SCREW
€ 4.50
92009B
920091591
ref: 92009B
SCREW,5X14
€ 3.00
92009C
920091632
ref: 92009C
SCREW
€ 4.00
92015
920151259
ref: 92015
NUT,FLANGED,5MM
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92037
920371531
ref: 92037
CLAMP,TUBE
€ 3.50
92059
920591738
ref: 92059
TUBE,7X11X45
€ 17.00
92081
920811620
ref: 92081
SPRING,THROTTLE ADJUS
€ 3.00
92081A
920811621
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811622
ref: 92081B
SPRING,THROTTLE ADJUS
€ 6.50
92143
921431265
ref: 92143
COLLAR,4X5.2X9.6
€ 3.00
92144
921441518
ref: 92144
SPRING,STARTER LEVER
€ 14.50
92150
921501211
ref: 92150
BOLT,5X305
€ 17.50
92170
921701051
ref: 92170
CLAMP,TUBE
€ 5.50
92190
921901157
ref: 92190
TUBE,STARTER SPRING
€ 4.50
92190A
921901165
ref: 92190A
TUBE,L=110
€ 25.00
92190B
921901466
ref: 92190B
TUBE 7.3X12.5X70+27
€ 19.50
