CRANKCASE

ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST

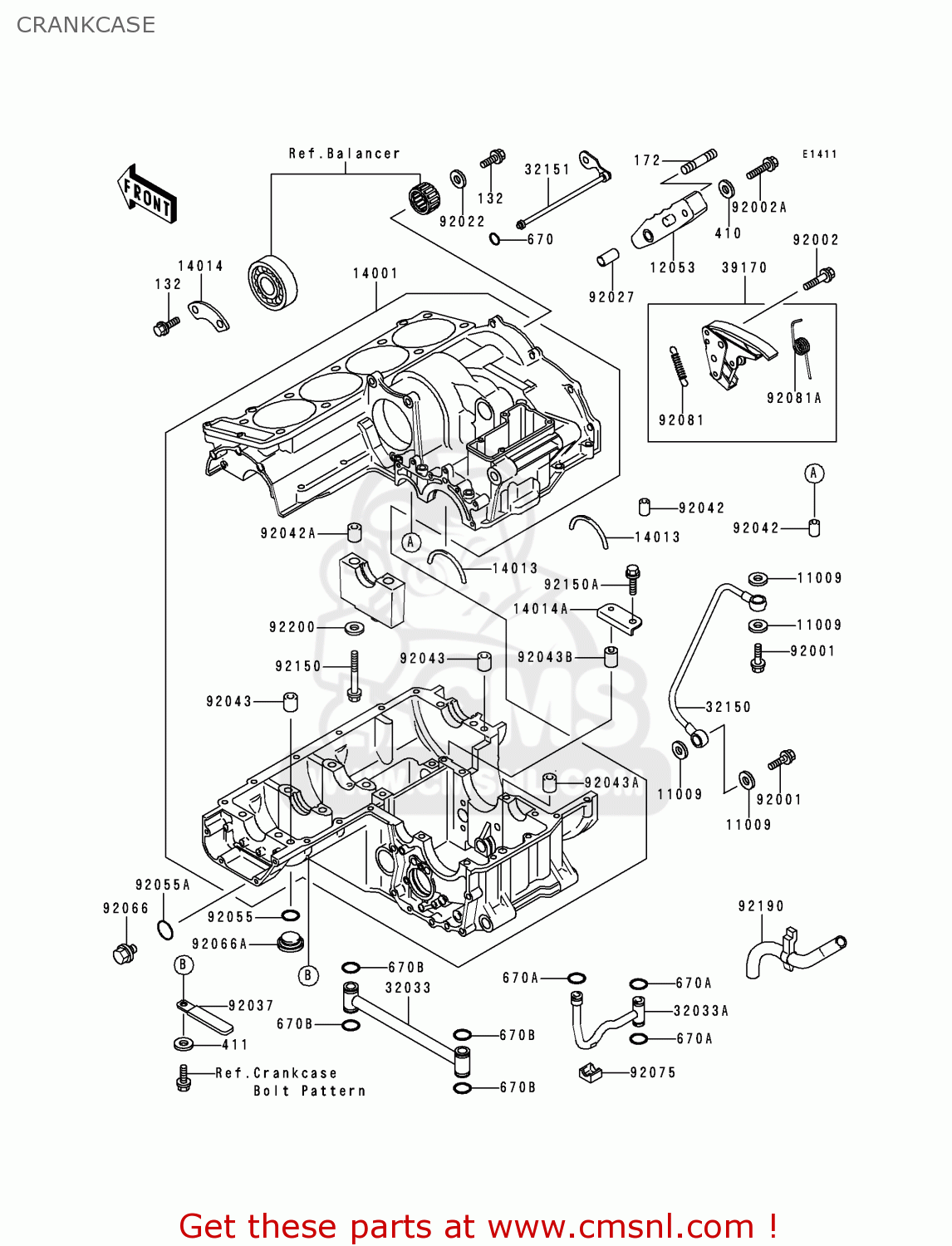

Crankcase diagram ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST

CRANKCASE ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST
CRANKCASE ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST
CRANKCASE ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
132G0612
€ 1.50
172
172G0616
ref: 172
STUD,6X16
172G0616
€ 1.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
410B0600
€ 0.50
411
411F0600
ref: 411
WASHER-PLAIN,6MM,BLAC
411F0600
€ 0.50
670
670B1506
ref: 670
O RING,6MM
670B1506
€ 1.00
670A
670D1509
ref: 670A
O RING,9MM
670D1509
€ 3.00
670B
670D2016
ref: 670B
O RING,16MM
670D2016
€ 1.00
11009
110091376
ref: 11009
GASKET,12.5X18X1.5 (NAS)
110091376
€ 1.50
12053
120531189
ref: 12053
GUIDE-CHAIN
120531189
€ 13.50
14001
140011222
ref: 14001
SET-CRANKCASE
€ 2,245.50
14013
140131005
ref: 14013
RING-POSITION
140131005
€ 3.00
14014
140141056
ref: 14014
PLATE-POSITION
140141056
€ 9.50
14014A
140141101
ref: 14014A
PLATE-POSITION
140141101
€ 4.00
32033
320331201
ref: 32033
PIPE,MAIN GALLARY
320331201
€ 37.50
32033A
320331202
ref: 32033A
PIPE
320331202
€ 27.50
32150
321501033
ref: 32150
PIPE
€ 35.50
32151
321511482
ref: 32151
PIPE,OIL
321511482
€ 35.50
39170
391701059
ref: 39170
TENSIONER-COMP
391701059
€ 168.50
92001
920011871
ref: 92001
BOLT,BANJO,12X23
920011871
€ 12.50
92002
920021534
ref: 92002
BOLT,6X30
920021534
€ 4.00
92002A
920021609
ref: 92002A
BOLT
920021609
€ 3.00
92022
920221517
ref: 92022
WASHER,6X19.5X2
920221517
€ 1.50
92027
920271079
ref: 92027
COLLAR,8X15
920271079
€ 2.50
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92042
92042016
ref: 92042
PIN,DOWEL,6X16
92042016
€ 3.50
92042A
92042031
ref: 92042A
PIN,DOWEL,12X14
92042031
€ 4.50
92043
920431037
ref: 92043
PIN,DOWEL,10X8.2X14
920431037
€ 0.50
92043A
920431279
ref: 92043A
PIN,11.5X14X14
920431279
€ 3.00
92043B
920431281
ref: 92043B
PIN,BALANCER
920431281
€ 6.50
92055
920551136
ref: 92055
RING-O,OILPAN CAP
920551136
€ 3.00
92055A
920551146
ref: 92055A
RING-O
920551146
€ 5.50
92066
920661096
ref: 92066
PLUG,MAIN GALLARY,18X
920661096
€ 7.50
92066A
920661161
ref: 92066A
PLUG,25X8
920661161
€ 7.00
92075
920751785
ref: 92075
DAMPER
920751785
€ 3.00
92081
920811668
ref: 92081
SPRING
920811668
€ 9.00
92081A
920811971
ref: 92081A
SPRING
€ 5.00
92150
921501364
ref: 92150
BOLT,9X90
921501364
€ 5.50
92150A
921501868
ref: 92150A
BOLT,6X12
921501868
€ 2.00
92190
921901118
ref: 92190
TUBE,BREATHER
921901118
€ 14.00
92200
922001037
ref: 92200
WASHER,9.5X18X1.2
922001037
€ 2.00
