COWLING

ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST

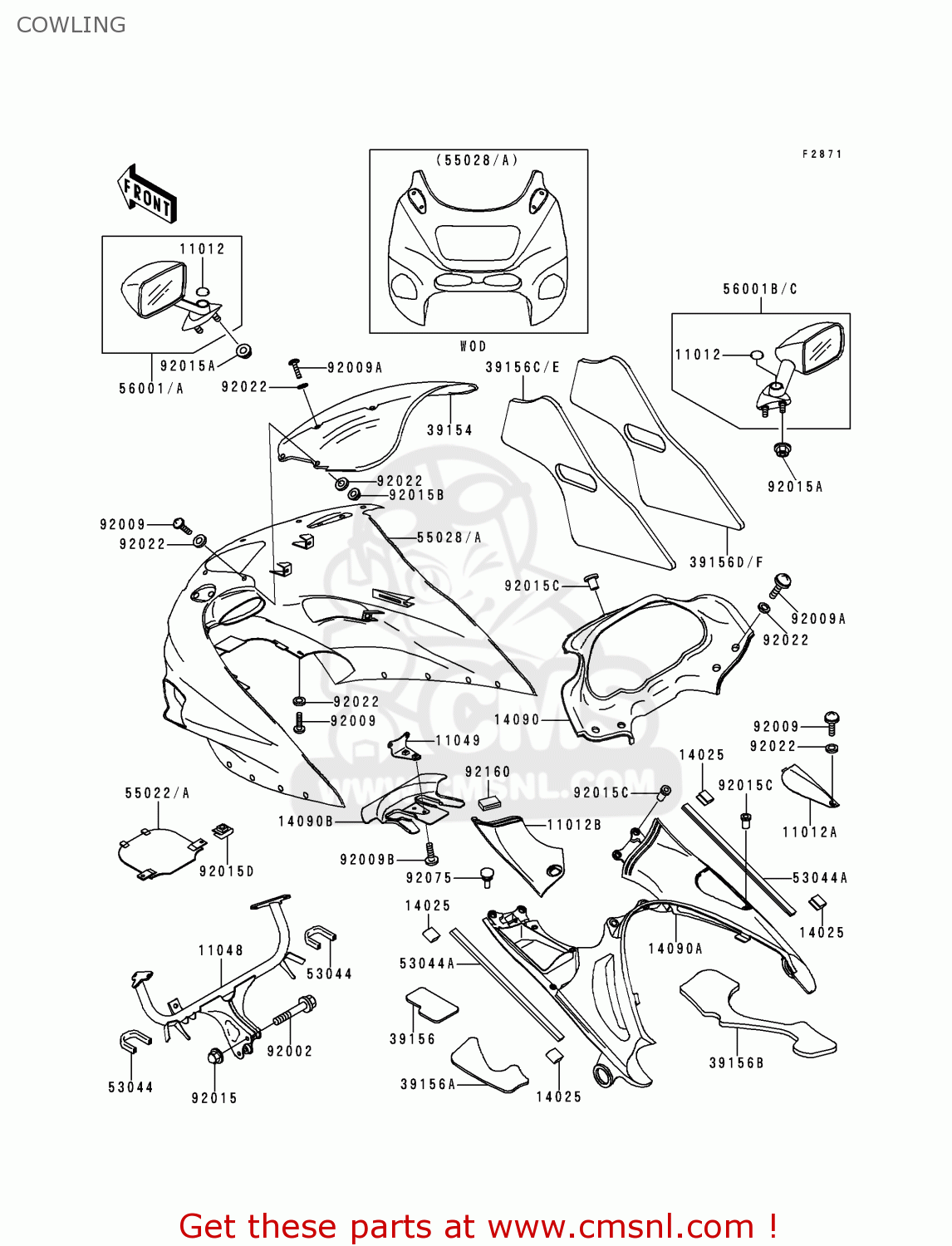

Cowling diagram ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST

COWLING ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST
COWLING ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST
COWLING ZX1100D7 ZZR1100 1999 EUROPE UK FR NL GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
11012
1101217516Z
ref: 11012
CAP,MIRROR,BLACK
1101217516Z
€ 2.50
11012A
11012187611
ref: 11012A
CAP,INNER COWLING,RH,
11012187611
€ 42.00
11012B
11012187711
ref: 11012B
CAP,INNER COWLING,LH,
11012187711
€ 42.00
11048
110481884
ref: 11048
BRACKET,UPP COWLING
110481884
€ 243.50
11049
110491070
ref: 11049
BRACKET
€ 22.50
14025
140251756
ref: 14025
COVER,TRIM END
140251756
€ 4.50
14090
14090141811
ref: 14090
COVER,INNER COWLING,F
14090141811
€ 108.50
14090A
14090142711
ref: 14090A
COVER,INNER COWLING,R
14090142711
€ 113.00
14090B
140901565
ref: 14090B
COVER,HOSE&CABLE
€ 16.50
39154
391541122
ref: 39154
WINDSHIELD
391541122
€ 184.50
39156
391561329
ref: 39156
PAD,INNER COWLING,LH,
391561329
€ 6.00
39156A
391561330
ref: 39156A
PAD,INNER COWLING,LH,
391561330
€ 8.00
39156B
391561331
ref: 39156B
PAD,INNER COWLING,RH
391561331
€ 8.00
39156C
391561332
ref: 39156C
ST
PAD,UPP COWLING,LH
391561332
€ 12.00
39156D
391561333
ref: 39156D
ST
PAD,UPP COWLING,RH
391561333
€ 12.00
39156E
391561451
ref: 39156E
EUFRGRITNLNRSPUK
PAD,UPP COWLING,LH
391561451
€ 12.00
39156F
391561452
ref: 39156F
EUFRGRITNLNRSPUK
PAD,UPP COWLING,RH
391561452
€ 12.00
53044
530441200
ref: 53044
TRIM-HEADLAMP COVER
530441200
€ 5.00
53044A
530441255
ref: 53044A
TRIM,L=385
530441255
€ 16.50
55022
550221074H3
ref: 55022
COVER-HEAD LAMP,C.W.R
€ 108.00
55022A
550221074H8
ref: 55022A
EUFRGRITNLNRSTUK
COVER-HEAD LAMP,EBONY
550221074H8
€ 101.50
55028
550281300H3
ref: 55028
COWLING,UPP,C.W.RED
€ 345.00
55028A
550281300H8
ref: 55028A
EUFRGRITNLNRSTUK
COWLING,UPP,EBONY
550281300H8
€ 472.00
56001
560011390H3
ref: 56001
MIRROR-ASSY,LH,C.W.RE
560011390H3
€ 130.00
56001A
560011390H8
ref: 56001A
EUFRGRITNLNRSTUK
MIRROR-ASSY,LH,EBONY
560011390H8
€ 130.00
56001B
560011391H3
ref: 56001B
MIRROR-ASSY,RH,C.W.RE
€ 136.00
56001C
560011391H8
ref: 56001C
EUFRGRITNLNRSTUK
MIRROR-ASSY,RH,EBONY
560011391H8
€ 136.00
92002
920021198
ref: 92002
BOLT,8X35
920021198
€ 3.00
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92009A
920091657
ref: 92009A
SCREW
920091657
€ 2.50
92009B
920091661
ref: 92009B
SCREW
920091661
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
920151233
€ 3.50
92015B
920151263
ref: 92015B
NUT,LOCK 5MM
920151263
€ 4.50
92015C
920151757A
ref: 92015C
NUT,5MM
920151757A
€ 5.00
92015D
920151798
ref: 92015D
NUT
920151798
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751808
ref: 92075
DAMPER,6X10X15
920751808
€ 1.50
92160
921601190
ref: 92160
DAMPER
921601190
€ 2.50
