FRAME FITTINGS

ZX1100D3 NINJAZX11 1995 USA CALIFORNIA CANADA

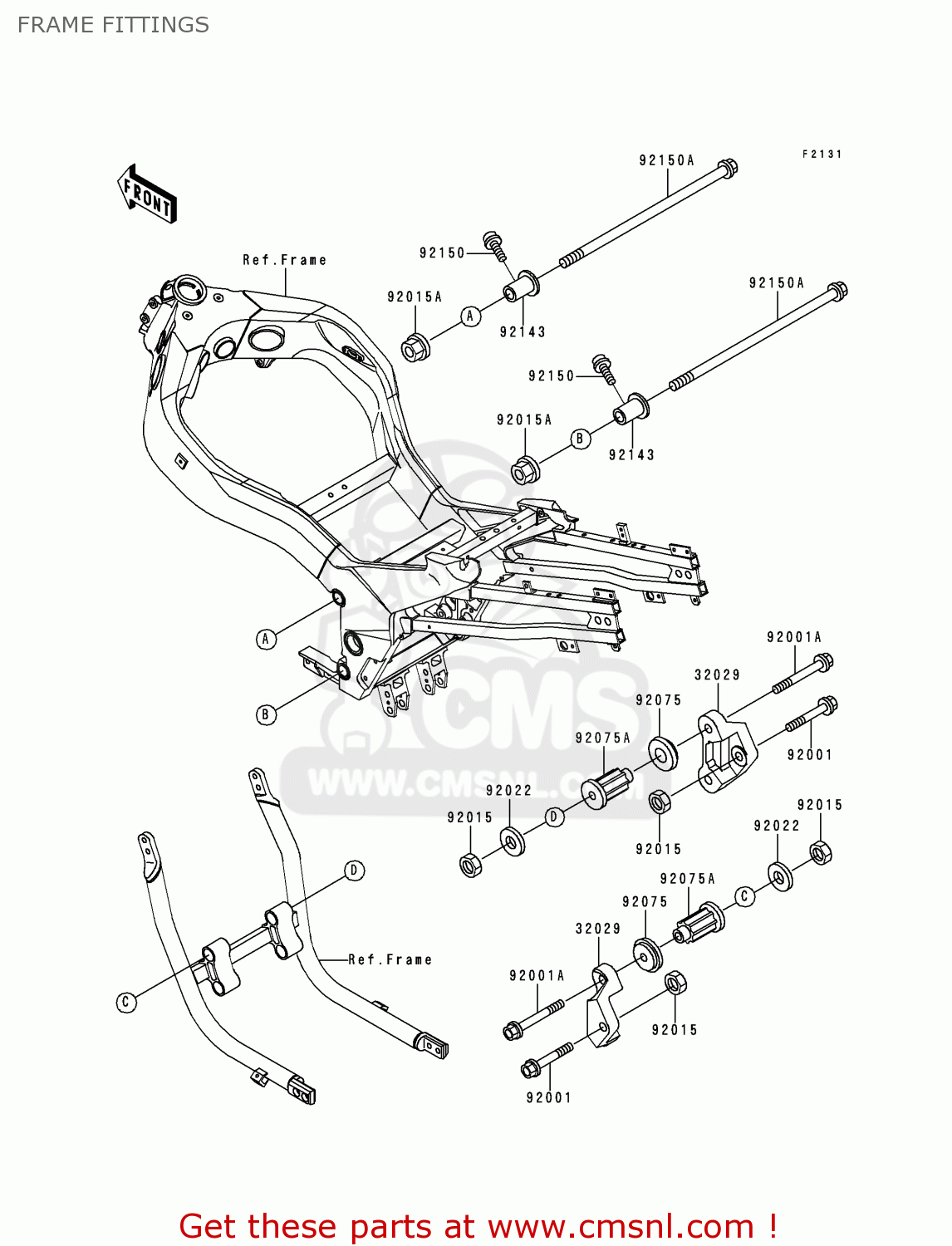

Frame fittings diagram ZX1100D3 NINJAZX11 1995 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

32029

320291615
ref: 32029

BRACKET-ENGINE

€ 43.50

92001

920011617
ref: 92001

BOLT,FLANGED,10X60

€ 6.50

92001A

920011619
ref: 92001A

BOLT,FLANGED,10X85

€ 5.50

92015

920151429
ref: 92015

NUT,10MM

€ 4.50

92015A

920151522
ref: 92015A

NUT,LOCK,10MM

€ 4.50

92022

920221246
ref: 92022

WASHER,10.5X37X1.6

€ 3.50

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50

92143

921431615
ref: 92143

COLLAR,ENGINE MOUNT,L

€ 11.50

92150

921501156
ref: 92150

BOLT,SOCKET,8X30

€ 4.50

92150A

921501263
ref: 92150A

BOLT,FLANGED,10X235

€ 10.50
