CRANKCASE BOLT PATTERN

ZX1100D3 NINJAZX11 1995 USA CALIFORNIA CANADA

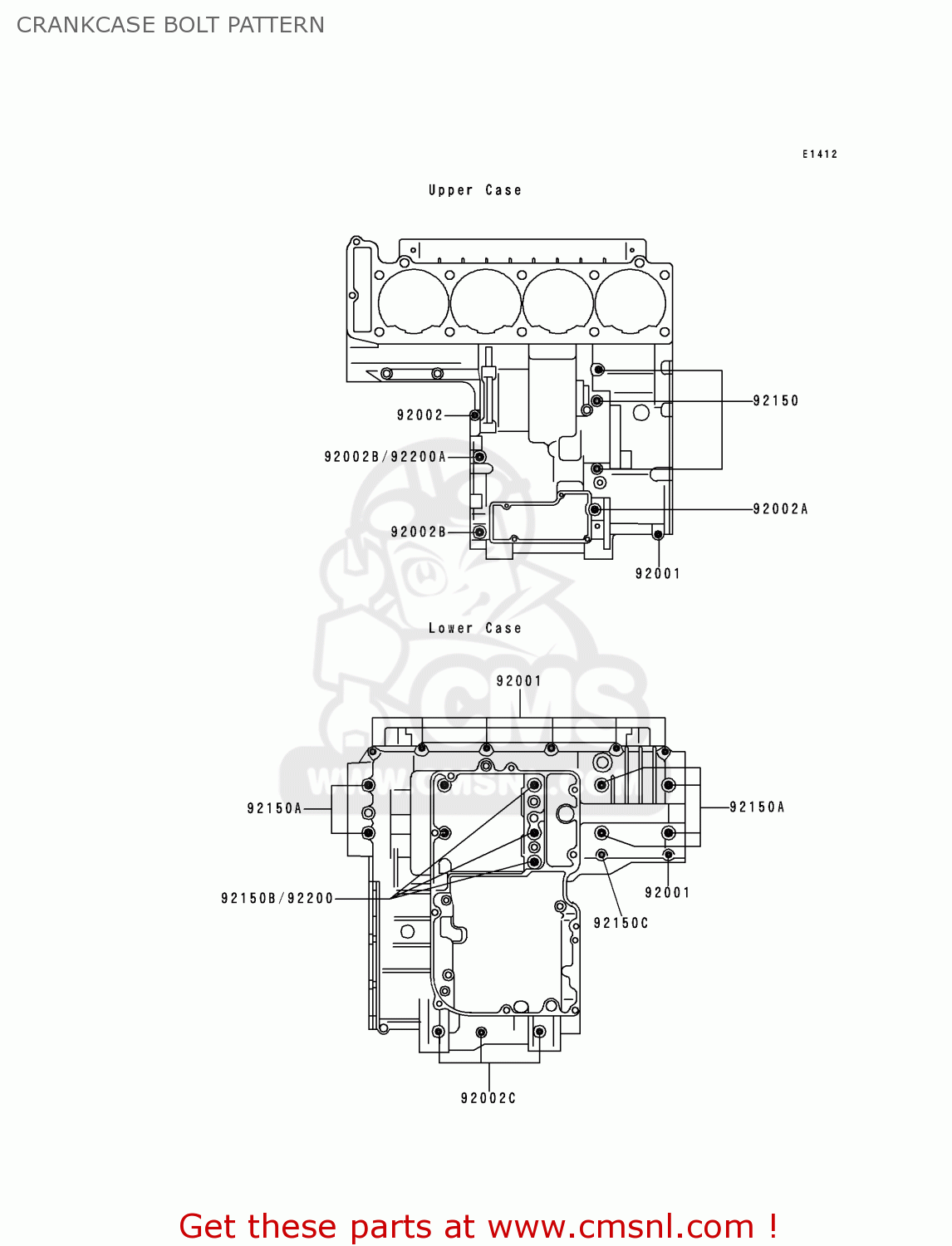

Crankcase bolt pattern diagram ZX1100D3 NINJAZX11 1995 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

92001

920011899
ref: 92001

BOLT,6X38

€ 2.50

92002

920021054
ref: 92002

BOLT,6X55

€ 3.00

92002A

920021306
ref: 92002A

BOLT

€ 3.50

92002B

920021308
ref: 92002B

BOLT

€ 5.50

92002C

920021654
ref: 92002C

BOLT

€ 4.50

92150

921501140
ref: 92150

BOLT

€ 4.00

92150A

921501364
ref: 92150A

BOLT,9X90

€ 5.50

92150B

921501365
ref: 92150B

BOLT,9X140

€ 6.50

92150C

921501367
ref: 92150C

BOLT,7X38

€ 4.50

92200

922001037
ref: 92200

WASHER,9.5X18X1.2

€ 2.00

92200A

922001063
ref: 92200A

WASHER

€ 2.50
