OIL COOLER

ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

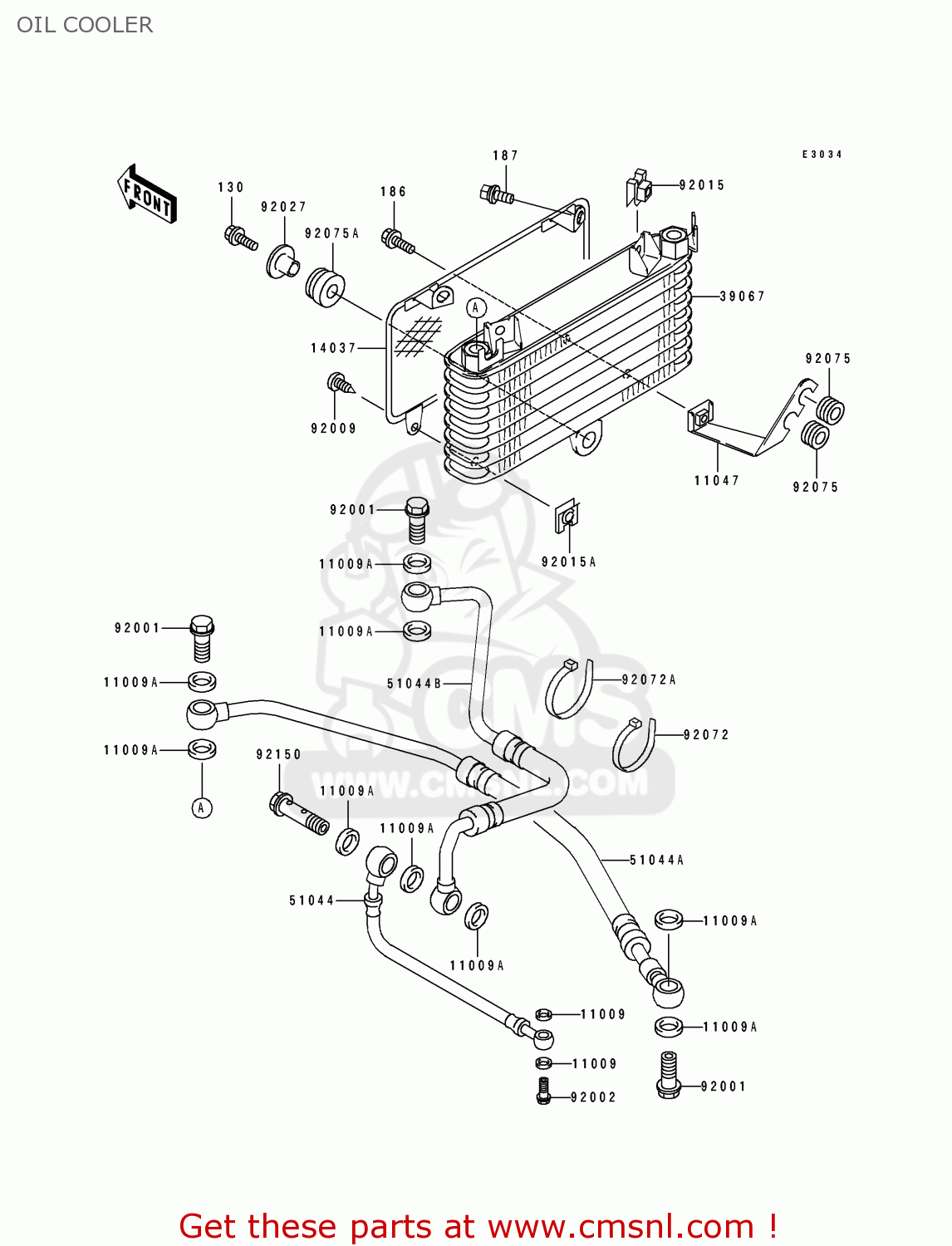

Oil cooler diagram ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

OIL COOLER ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
OIL COOLER ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
OIL COOLER ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0625
ref: 130
BOLT-FLANGED,6X25
130J0625
€ 2.00
186
186G0612
ref: 186
BOLT-UPSET-WP
€ 1.50
187
187G0616
ref: 187
BOLT-UPSET-WSP
187G0616
€ 1.50
11009
110091344
ref: 11009
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
11009A
110091461
ref: 11009A
GASKET,14X19.5X1.4 (NAS)
110091461
€ 3.50
11047
110471888
ref: 11047
BRACKET,OIL TUBE
110471888
€ 13.50
14037
140371173
ref: 14037
SCREEN,OIL COOLER
140371173
€ 45.00
39067
390671060
ref: 39067
COOLER-OIL
€ 555.00
51044
510441130
ref: 51044
TUBE-ASSY,OIL
€ 155.00
51044A
510441152
ref: 51044A
TUBE-ASSY,LH
510441152
€ 216.00
51044B
510441153
ref: 51044B
TUBE-ASSY,RH
€ 179.50
92001
920011930
ref: 92001
BOLT,14X28.5
920011930
€ 6.50
92002
920021429
ref: 92002
BOLT,8X20
920021429
€ 7.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92015
920151487
ref: 92015
NUT
920151487
€ 3.00
92015A
920151758
ref: 92015A
NUT
920151758
€ 4.50
92027
920271651
ref: 92027
COLLAR
920271651
€ 2.50
92072
920721195
ref: 92072
BAND,L=185
920721195
€ 1.00
92072A
920721237
ref: 92072A
BAND,L=250
920721237
€ 2.00
92075
920751942
ref: 92075
DAMPER,OIL COOLER
920751942
€ 3.50
92075A
92075277
ref: 92075A
DAMPER
92075277
€ 1.00
92150
921501324
ref: 92150
BOLT
921501324
€ 15.00
