CHASSIS ELECTRICAL EQUIPMENT

ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

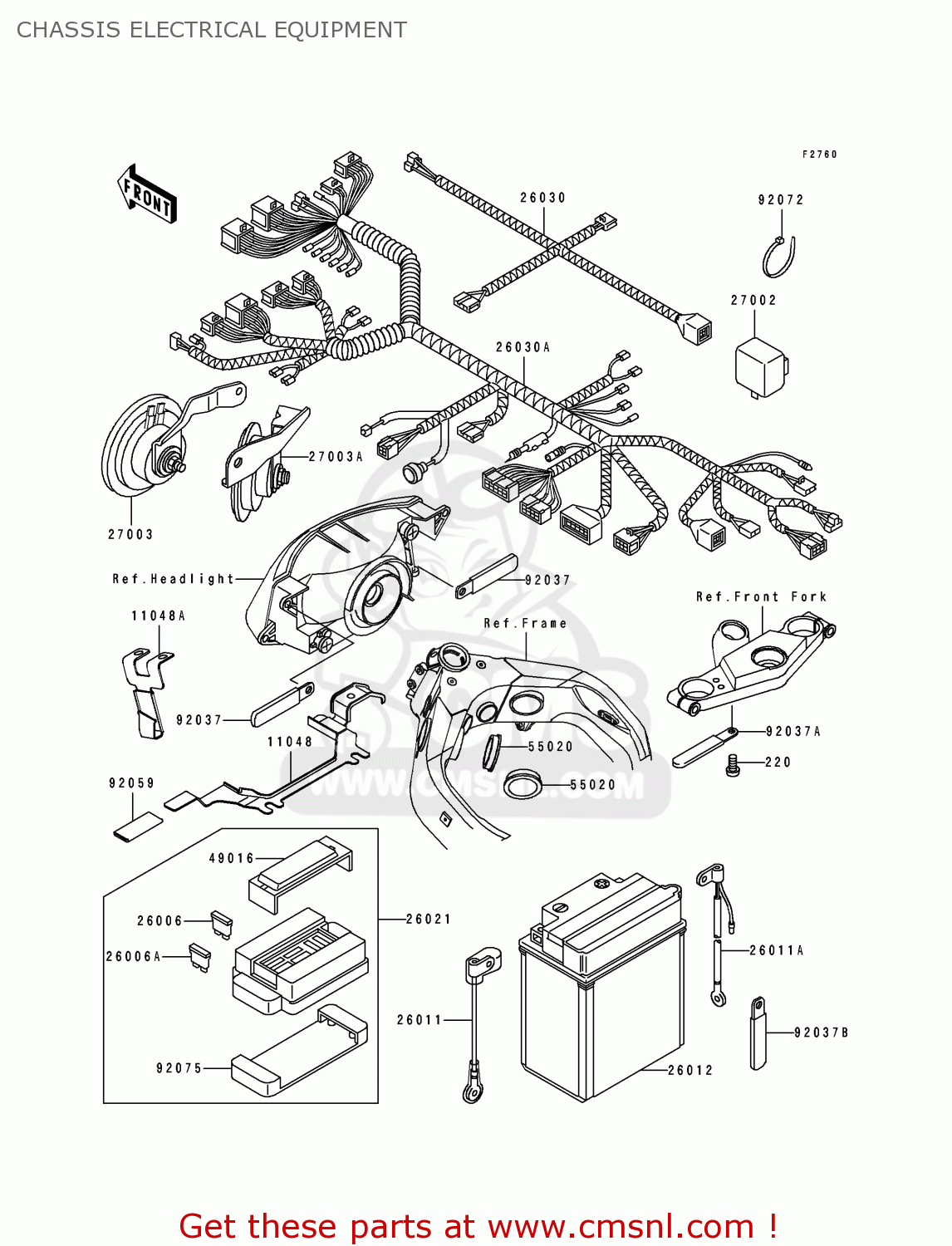

Chassis electrical equipment diagram ZX1100D2 ZZR1100 1994 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.50

11048

110481193
ref: 11048

BRACKET,CLAMP

€ 22.00

11048A

110481241
ref: 11048A

BRACKET,RELAY

€ 9.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111563
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 17.50

26011A

260111564
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 29.50

26012

260121279
ref: 26012

BATTERY,YTX14-BS,12V

€ 124.50

26021

260211081
ref: 26021

JUNCTION, BOX

€ 106.50

26030

260301016
ref: 26030

HARNESS,FR

€ 55.50

26030A

260301179
ref: 26030A

HARNESS,MAIN

€ 176.00

27002

270021060
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 65.50

27003

270031320
ref: 27003

HORN,LH

€ 58.50

27003A

270031363
ref: 27003A

HORN,RH

€ 55.50

49016

490161124
ref: 49016

COVER-SEAL,FUSE

€ 6.00

55020

550201481
ref: 55020

GUARD,HARNESS

€ 6.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371539
ref: 92037A

CLAMP,L=45

€ 3.00

92037B

920371993
ref: 92037B

CLAMP

€ 3.50

92059

920591637
ref: 92059

TUBE,11X12X40

€ 2.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50
