Genuine ZX Kawasaki Parts delivered quickly!


VALVE(S)

ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

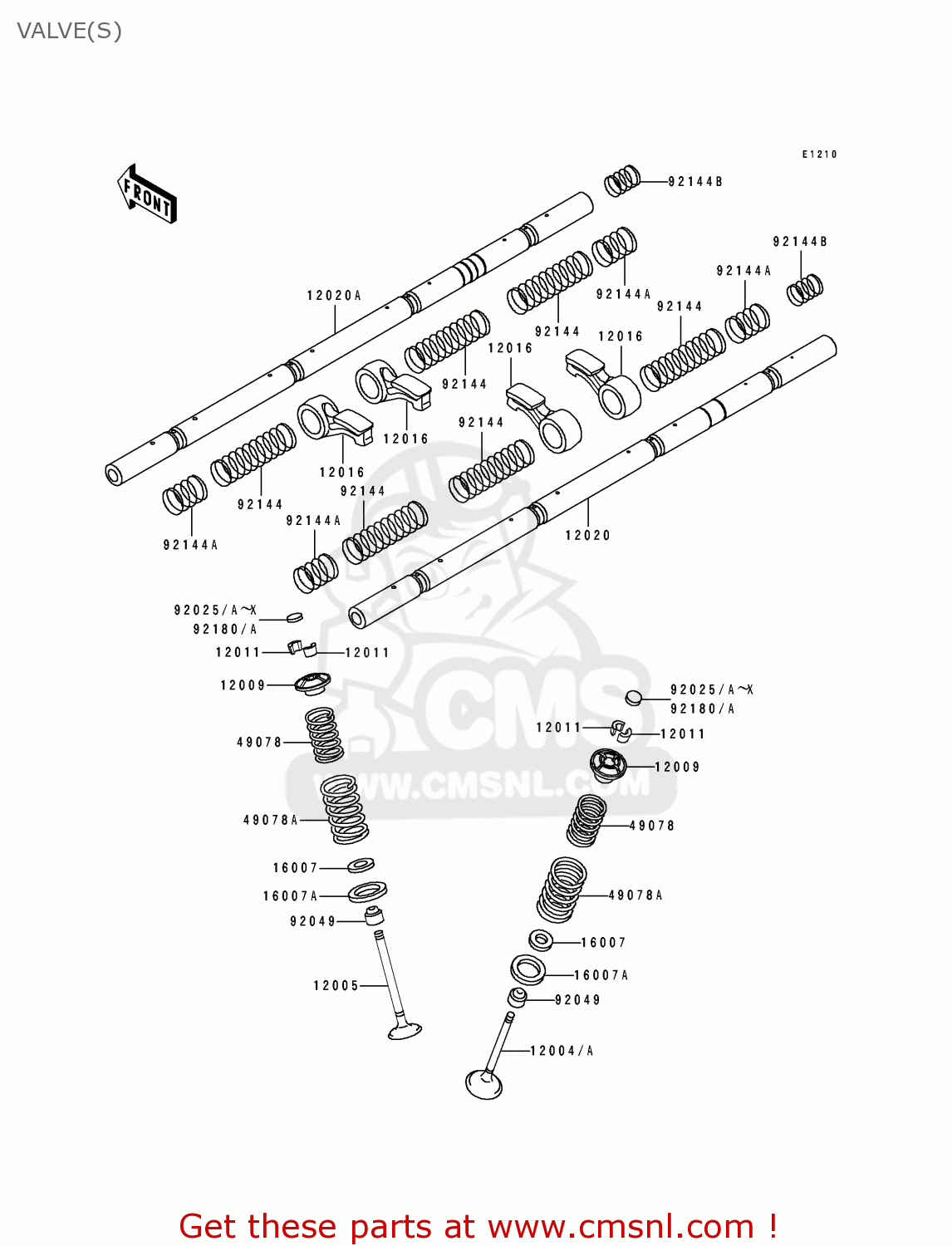

Valve(s) diagram ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

VALVE(S) ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
VALVE(S) ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
VALVE(S) ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
12004
120041093
ref: 12004
VALVE-INTAKE
€ 38.50
12005
120051148
ref: 12005
VALVE-EXHAUST
120051148
€ 71.00
12009
120091058
ref: 12009
RETAINER-VALVE SPRING
120091058
€ 8.00
12011
120111051
ref: 12011
COLLET
120111051
€ 1.50
12016
120161081
ref: 12016
ARM-ROCKER
120161081
€ 83.50
12020
120201062
ref: 12020
SHAFT-ROCKER,INTAKE
€ 60.00
12020A
120201063
ref: 12020A
SHAFT-ROCKER,EXHAUST
€ 60.00
16007
160071143
ref: 16007
SEAT-SPRING
160071143
€ 3.50
16007A
160071144
ref: 16007A
SEAT-SPRING
160071144
€ 4.00
49078
490781089
ref: 49078
SPRING-ENGINE VALVE,O
490781089
€ 11.00
49078A
490781090
ref: 49078A
SPRING-ENGINE VALVE,I
490781090
€ 10.00
92025
920251870
ref: 92025
SHIM,T=2.00
920251870
€ 10.50
92025A
920251871
ref: 92025A
SHIM,T=2.05
920251871
€ 10.50
92025B
920251872
ref: 92025B
SHIM,T=2.10
920251872
€ 10.50
92025C
920251873
ref: 92025C
SHIM,T=2.15
920251873
€ 10.50
92025D
920251874
ref: 92025D
SHIM,T=2.20
920251874
€ 10.50
92025E
920251875
ref: 92025E
SHIM,T=2.25
920251875
€ 10.50
92025F
920251876
ref: 92025F
SHIM,T=2.30
920251876
€ 10.50
92025G
920251877
ref: 92025G
SHIM,T=2.35
920251877
€ 10.50
92025H
920251878
ref: 92025H
SHIM,T=2.40
920251878
€ 10.50
92025I
920251879
ref: 92025I
SHIM,T=2.45
920251879
€ 10.50
92025J
920251880
ref: 92025J
SHIM,T=2.50
920251880
€ 10.50
92025K
920251881
ref: 92025K
SHIM,T=2.55
920251881
€ 10.50
92025L
920251882
ref: 92025L
SHIM,T=2.60
920251882
€ 10.50
92025M
920251883
ref: 92025M
SHIM,T=2.65
920251883
€ 10.50
92025N
920251884
ref: 92025N
SHIM,T=2.70
920251884
€ 10.50
92025O
920251885
ref: 92025O
SHIM,T=2.75
920251885
€ 10.50
92025P
920251886
ref: 92025P
SHIM,T=2.80
920251886
€ 10.50
92025Q
920251887
ref: 92025Q
SHIM,T=2.85
920251887
€ 10.50
92025R
920251888
ref: 92025R
SHIM,T=2.90
920251888
€ 10.50
92025S
920251889
ref: 92025S
SHIM,T=2.95
920251889
€ 10.50
92025T
920251890
ref: 92025T
SHIM,T=3.00
920251890
€ 10.50
92025U
920251982
ref: 92025U
SHIM,T=2.425
920251982
€ 10.50
92025V
920251983
ref: 92025V
SHIM,T=2.475
920251983
€ 10.50
92025W
920251984
ref: 92025W
SHIM,T=2.525
920251984
€ 10.50
92025X
920251985
ref: 92025X
SHIM,T=2.575
920251985
€ 10.50
92049
920491218
ref: 92049
SEAL-OIL,VSB58.558
920491218
€ 3.50
92144
921441254
ref: 92144
SPRING,ROCKER ARM,LON
€ 4.00
92144A
921441255
ref: 92144A
SPRING,ROCKER ARM,SHO
921441255
€ 4.00
92144B
921441256
ref: 92144B
SPRING
921441256
€ 4.00
92180
921801058
ref: 92180
SHIM,T=2.375
921801058
€ 10.50
92180A
921801059
ref: 92180A
SHIM,T=2.625
921801059
€ 10.50
