COWLING(ZX1100-D1)

ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

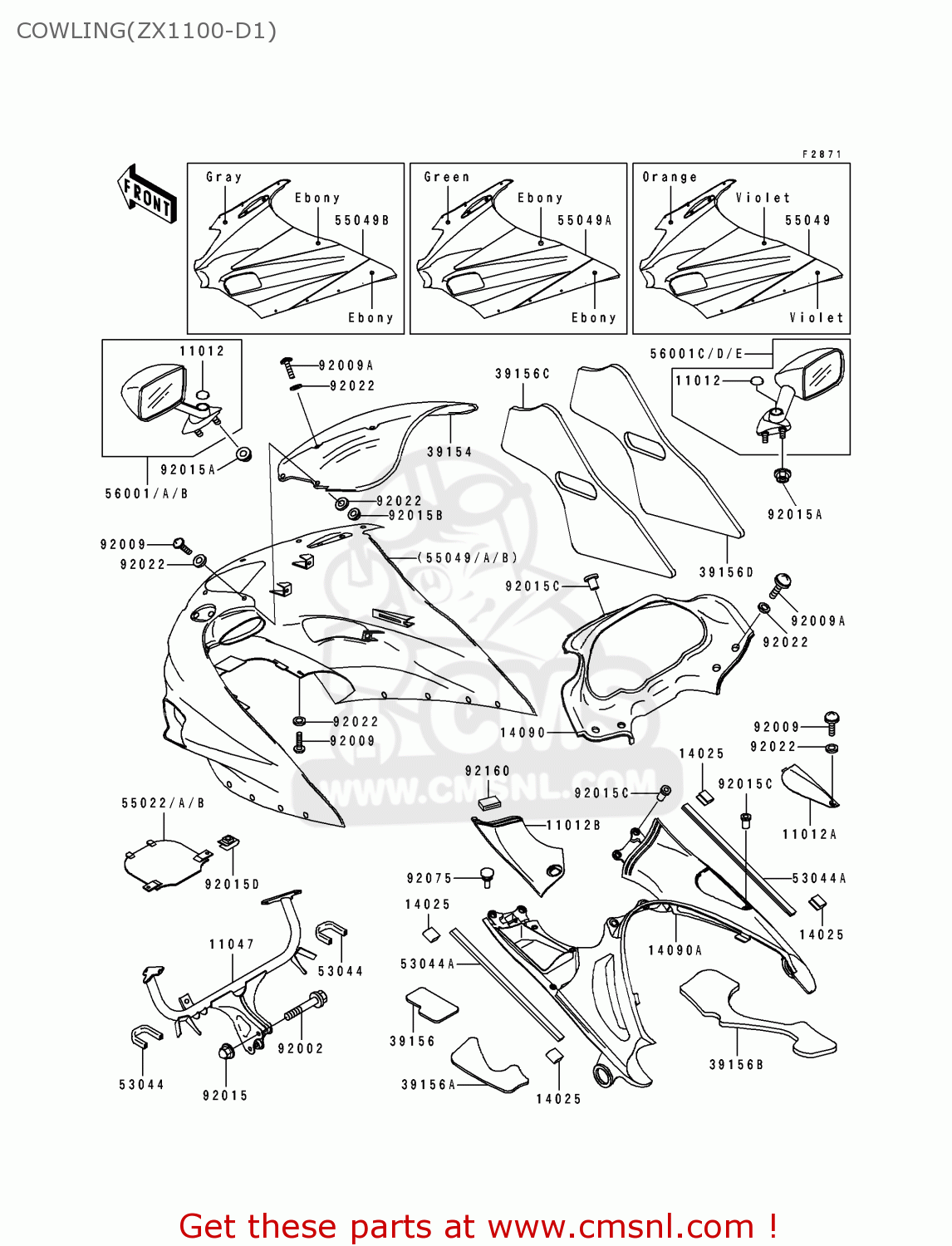

Cowling(zx1100-d1) diagram ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST

COWLING(ZX1100-D1) ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
COWLING(ZX1100-D1) ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
COWLING(ZX1100-D1) ZX1100D1 ZZR1100 1993 EUROPE UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11012
1101217516Z
ref: 11012
CAP,MIRROR,BLACK
1101217516Z
€ 2.50
11012A
11012183211
ref: 11012A
CAP,INNER COWLING,RH,
€ 42.00
11012B
11012183311
ref: 11012B
CAP,INNER COWLING,LH,
€ 42.00
11047
110471920
ref: 11047
BRACKET,UPP COWLING
110471920
€ 243.50
14025
140251756
ref: 14025
COVER,TRIM END
140251756
€ 4.50
14090
14090127311
ref: 14090
COVER,INNER COWLING,F
€ 108.50
14090A
14090127411
ref: 14090A
COVER,INNER COWLING,R
€ 113.00
39154
391541122
ref: 39154
WINDSHIELD
391541122
€ 184.50
39156
391561329
ref: 39156
PAD,INNER COWLING,LH,
391561329
€ 6.00
39156A
391561330
ref: 39156A
PAD,INNER COWLING,LH,
391561330
€ 8.00
39156B
391561331
ref: 39156B
PAD,INNER COWLING,RH
391561331
€ 8.00
39156C
391561332
ref: 39156C
PAD,UPP COWLING,LH
391561332
€ 12.00
39156D
391561333
ref: 39156D
PAD,UPP COWLING,RH
391561333
€ 12.00
53044
530441200
ref: 53044
TRIM-HEADLAMP COVER
530441200
€ 5.00
53044A
530441255
ref: 53044A
TRIM,L=385
530441255
€ 16.50
55022
550221074RK
ref: 55022
COVER-HEAD LAMP,C.S.O
550221074RK
€ 92.50
55022A
550221074SM
ref: 55022A
EUFGGRITNRST
COVER-HEAD LAMP,P.T.G
€ 78.50
55022B
550221074VV
ref: 55022B
AREUFRGRNLNRSDSPUK
COVER-HEAD LAMP,J.GRA
550221074VV
€ 92.50
55049
550495170VR
ref: 55049
COWLING.,UPP,VIOLET/O
€ 765.50
55049A
550495173VS
ref: 55049A
EUFGGRITNRST
COWLING.,UPP,EBONY/GR
€ 765.50
55049B
550495176VT
ref: 55049B
AREUFRGRNLNRSDSPUK
COWLING.,UPP,EBONY/J.
€ 765.50
56001
560011390H8
ref: 56001
AREUFRGRNLNRSDSPUK
MIRROR-ASSY,LH,EBONY
560011390H8
€ 130.00
56001A
560011390RK
ref: 56001A
MIRROR-ASSY,LH,C.S.OR
560011390RK
€ 119.00
56001B
560011390SM
ref: 56001B
EUFGGRITNRST
MIRROR-ASSY,LH,P.T.GR
560011390SM
€ 119.00
56001C
560011391H8
ref: 56001C
AREUFRGRNLNRSDSPUK
MIRROR-ASSY,RH,EBONY
560011391H8
€ 136.00
56001D
560011391RK
ref: 56001D
MIRROR-ASSY,RH,C.S.OR
560011391RK
€ 113.00
56001E
560011391SM
ref: 56001E
EUFGGRITNRST
MIRROR-ASSY,RH,P.T.GR
€ 119.00
92002
920021198
ref: 92002
BOLT,8X35
920021198
€ 3.00
92009
920091654
ref: 92009
SCREW
920091654
€ 0.50
92009A
920091657
ref: 92009A
SCREW
920091657
€ 2.50
92015
920151174
ref: 92015
NUT,CAP,8MM,BLACK
920151174
€ 3.00
92015A
920151233
ref: 92015A
NUT,FLANGED,6MM
920151233
€ 3.50
92015B
920151263
ref: 92015B
NUT,LOCK 5MM
920151263
€ 4.50
92015C
920151757A
ref: 92015C
NUT,5MM
920151757A
€ 5.00
92015D
920151798
ref: 92015D
NUT
920151798
€ 4.50
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751808
ref: 92075
DAMPER,6X10X15
920751808
€ 1.50
92160
921601190
ref: 92160
DAMPER
921601190
€ 2.50
