METER

ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA

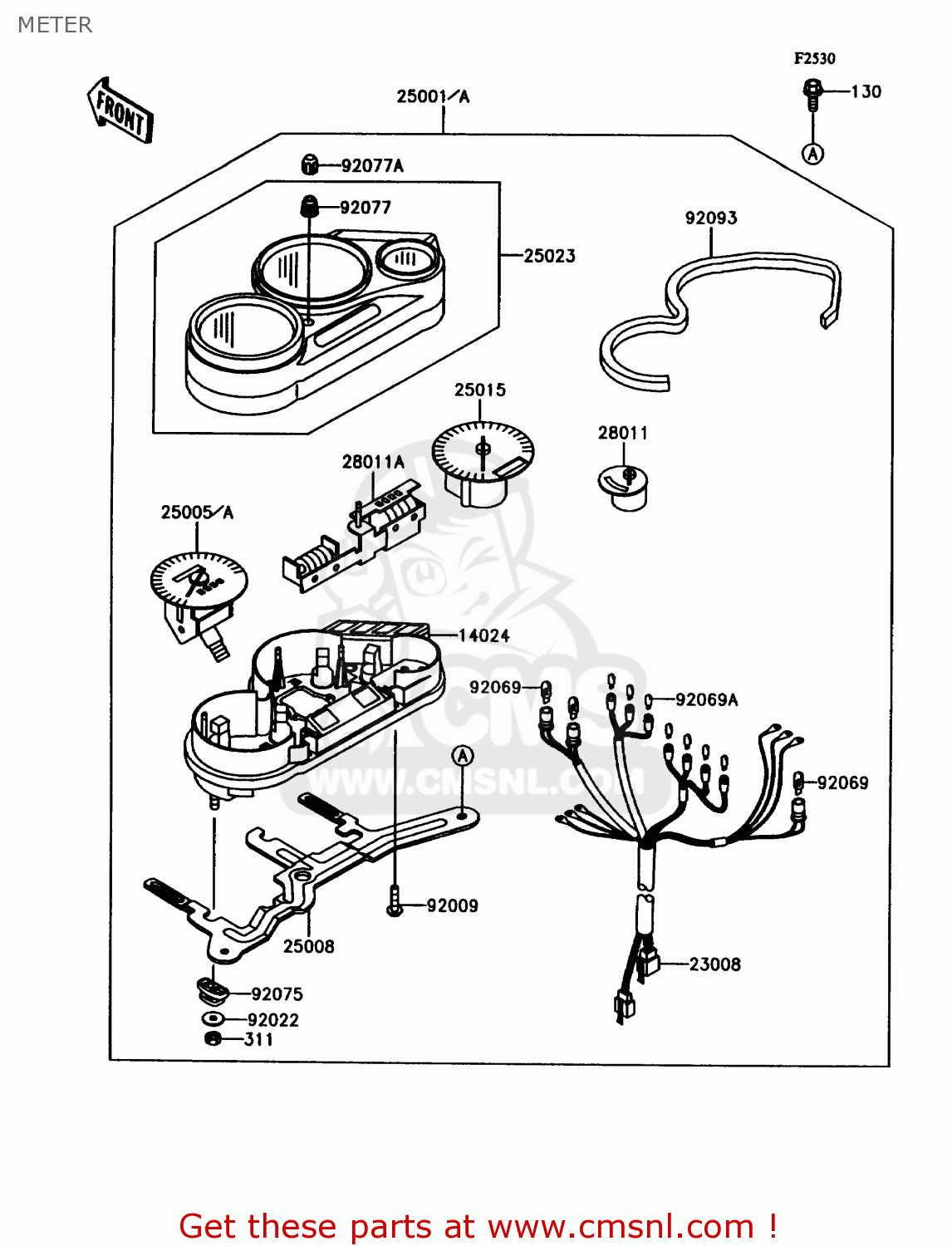

Meter diagram ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA

METER ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA
METER ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA
METER ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0620
ref: 130
BOLT-FLANGED,6X20
130J0620
€ 2.50
311
311B0500
ref: 311
NUT-HEX
311B0500
€ 0.50
14024
140241887
ref: 14024
COVER,METER HOUSING
140241887
€ 32.50
23008
230081419
ref: 23008
SOCKET-ASSY,METER
€ 84.00
25001
250011789
ref: 25001
CAUS
METER ASSEMBLY,MPH
€ 714.00
25001A
250011797
ref: 25001A
CN
METER-ASSY,KPH
€ 2,350.00
25005
250051435
ref: 25005
CAUS
SPEEDOMETER,MPH
€ 136.00
25005A
250051442
ref: 25005A
CN
SPEEDOMETER,KPH
250051442
€ 111.50
25008
250081160
ref: 25008
BRACKET-METER
250081160
€ 49.00
25015
250151288
ref: 25015
TACHOMETER,X1000R/MIN
250151288
€ 87.00
25023
250231167
ref: 25023
COVER-METER CASE,UPP
250231167
€ 93.50
28011
280111116
ref: 28011
METER,TEMP
280111116
€ 28.00
28011A
280111118
ref: 28011A
METER,TRIP
280111118
€ 175.50
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
92022263
€ 1.50
92069
920691059
ref: 92069
BULB,12V 1.7W
920691059
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
920691068
€ 2.50
92075
920751495
ref: 92075
DAMPER,METER BRACKET
920751495
€ 8.00
92077
920771087
ref: 92077
KNOB,TRIP RESET
920771087
€ 6.00
92077A
920771094
ref: 92077A
KNOB,TRIP RESET
920771094
€ 5.00
92093
920931308
ref: 92093
SEAL,METER
€ 9.50
