FRAME
ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA

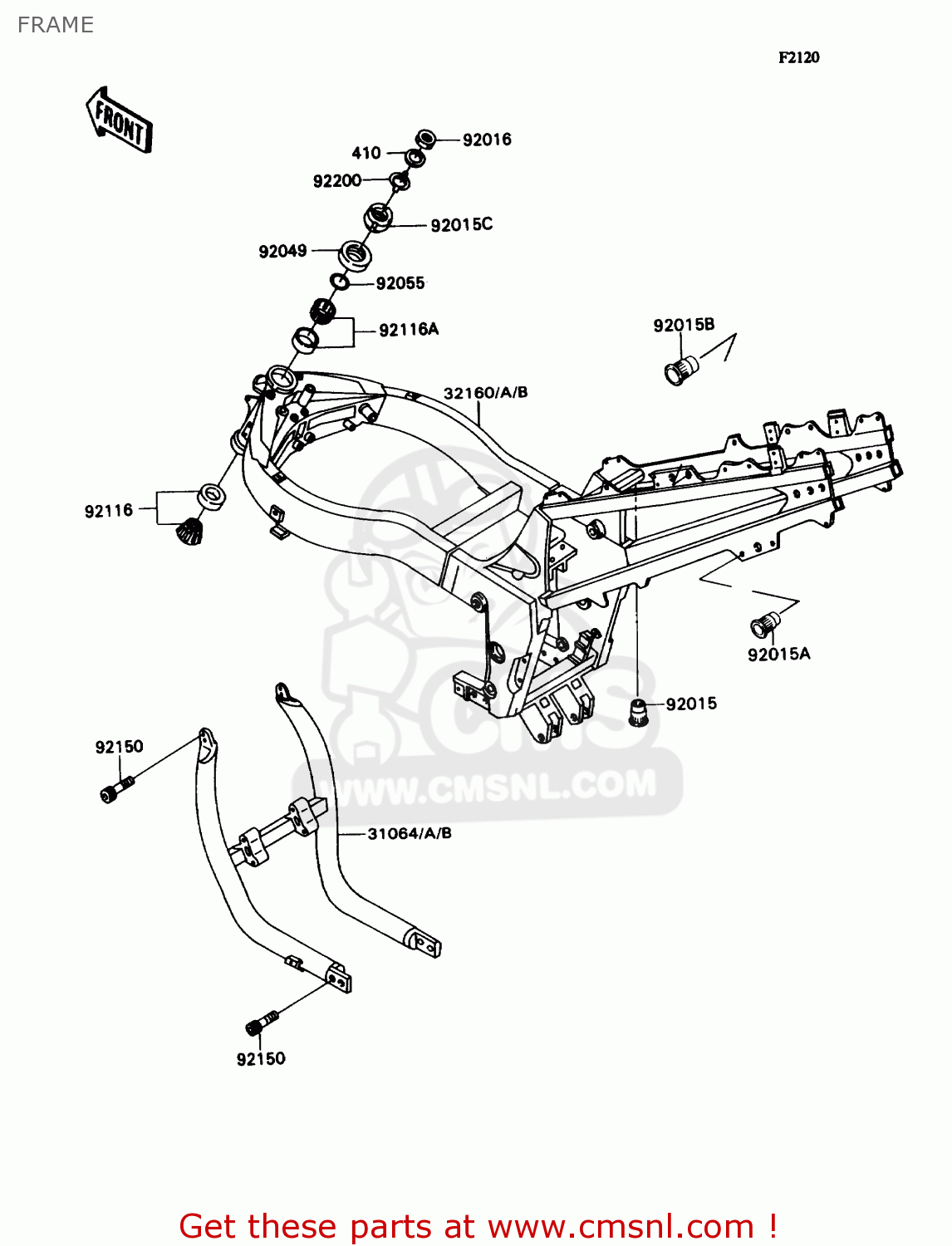

Frame diagram ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA
FRAME ZX1100C2 ZX11 1991 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
410
410F2000
ref: 410
W-PLAIN-S,20MM
€ 2.50
31064
310641114GD
ref: 31064
CN
PIPE-COMP,SIDE FRAME
€ 531.00
31064A
310641114HN
ref: 31064A
CAUS
SIDE FRAME PIPE,COMPLETE,GRAY
€ 230.00
32160
321601108GD
ref: 32160
CN
FRAME-COMP,G.GRAY
€ 1,813.00
32160A
321601108HN
ref: 32160A
CAUS
FRAME,COMPLETE,GRAY
€ 1,094.50
92015
920151791
ref: 92015
NUT,POP,6MM
€ 3.00
92015A
920151792
ref: 92015A
NUT,POP,6MM,L=16.5
€ 3.00
92015B
920151794
ref: 92015B
NUT,POP,8MM
€ 3.00
92015C
920151813
ref: 92015C
NUT,28MM
€ 11.00
92016
92016028
ref: 92016
NUT
€ 9.50
92049
920491351
ref: 92049
SEAL-OIL,XMH36X70X6.4
€ 9.50
92055
920551470
ref: 92055
RING-O,27.5X2
€ 2.50
92116
921161008
ref: 92116
BEARING-ROLLER,LWR,32
€ 78.00
92116A
921161067
ref: 92116A
BEARING-ROLLER,HR320/
€ 76.50
92150
921501405
ref: 92150
BOLT,SOCKET,10X30
€ 4.00
92200
922001041
ref: 92200
WASHER,CLAW,20.5X32X2
€ 3.00
