SWING ARM
ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA

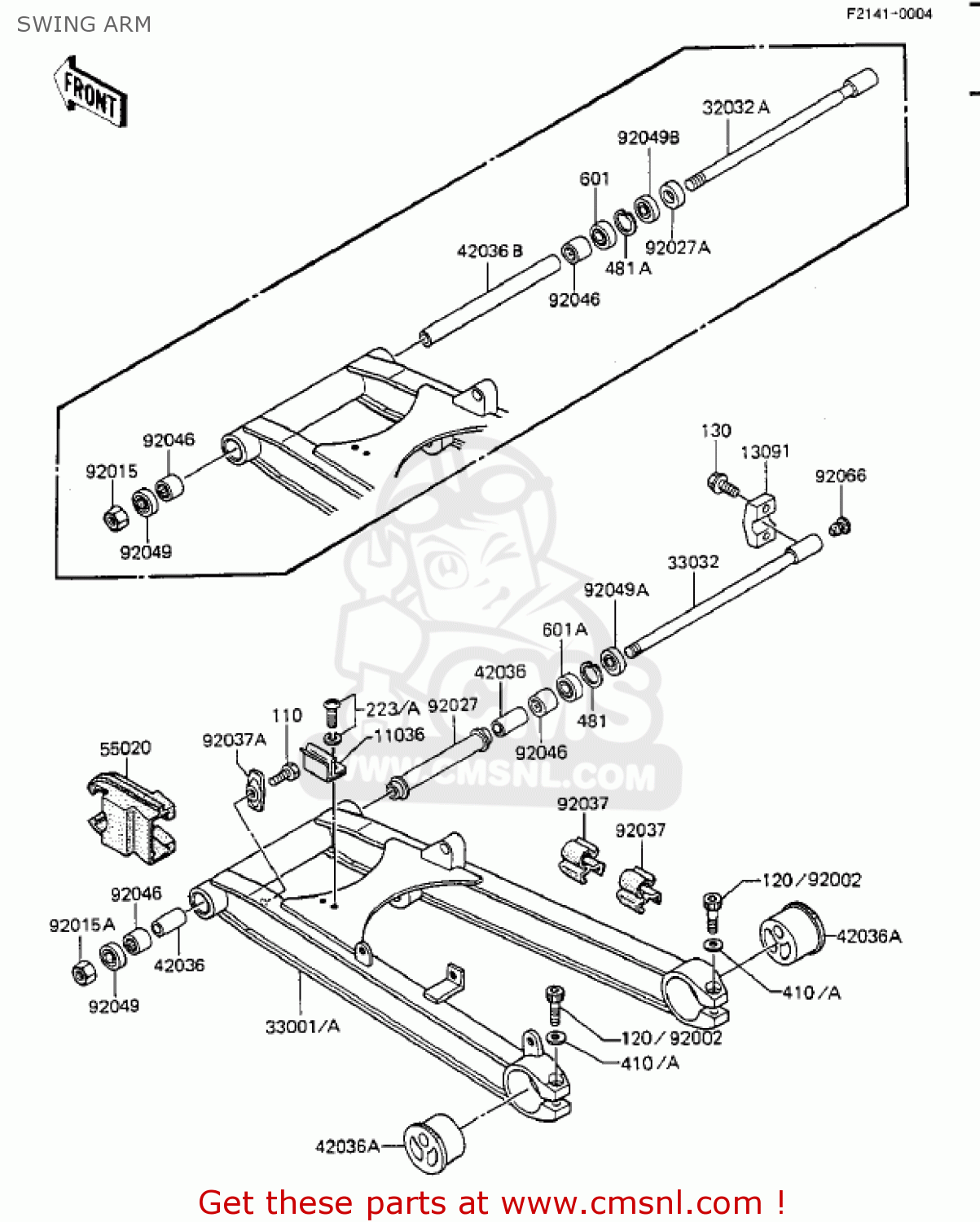

Swing arm diagram ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA
SWING ARM ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11036
110361868
ref: 11036
BRACKET-A,CHAIN CASE
€ 1.50
13091
130911180
ref: 13091
HOLDER,SWING ARM SHAF
€ 23.00
33001
330011168
ref: 33001
ARM-COMP-SWING
€ 814.50
33001A
330011213F2
ref: 33001A
ARM-COMP-SWING,G.SILV
€ 848.00
33032
330321039
ref: 33032
SHAFT-SWING ARM
€ 60.00
33032A
330321106
ref: 33032A
SHAFT-SWING ARM
€ 45.00
42036
420361073
ref: 42036
SLEEVE,SWING ARM
€ 15.00
42036A
420361074
ref: 42036A
SLEEVE,SWING ARM
€ 62.50
42036B
420361116
ref: 42036B
SLEEVE,17.1X25X231
€ 47.00
55020
550201100
ref: 55020
GUARD,CHAIN
€ 32.50
92002
920021452
ref: 92002
BOLT
€ 4.00
92015
920151207
ref: 92015
NUT,LOCK,16MM,BLACK
€ 7.50
92015A
920151212
ref: 92015A
NUT,LOCK,14MM,BLACK
€ 5.50
92027
920271561
ref: 92027
COLLAR,SWING ARM
€ 50.00
92027A
920271737
ref: 92027A
COLLAR
€ 7.50
92037
920371392
ref: 92037
CLAMP,BRAKE HOSE
€ 3.50
92037A
920371415
ref: 92037A
CLAMP,CHAIN GARD
€ 2.50
92046
920461035
ref: 92046
920461035
92049
920491060
ref: 92049
920491060
92049A
920491095
ref: 92049A
SEAL-OIL,DD20357
€ 11.00
92049B
920491110
ref: 92049B
SEAL-OIL,AG1258A0
€ 6.50
92066
920661125
ref: 92066
PLUG,SWING ARM SHAFT
€ 4.50
110
110B0508
ref: 110
BOLT
€ 0.50
120
120P1035
ref: 120
BOLT-SOCKET,10X35
€ 3.50
130
130S1030
ref: 130
BOLT-FLANGED,10X30,BL
€ 3.50
223
223B0508
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223X0508
ref: 223A
SCREW-PAN-WS-CROS
€ 1.50
410
410B1000
ref: 410
WASHER-PLAIN-SMALL,10
€ 0.50
410A
410E1000
ref: 410A
W-PLAIN-S
€ 0.50
481
481J3500
ref: 481
CIRCLIP-TYPE-C,35MM
€ 1.00
481A
920331040
ref: 481A
RING,SNAP,40M/M
€ 4.00
601
601A6203
ref: 601
BEARING-BALL,#6203
€ 10.50
601A
601B6202
ref: 601A
BEARING-BALL,#6202C3
€ 14.50
