Genuine ZX Kawasaki Parts delivered quickly!
home
CRANKCASE
ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA

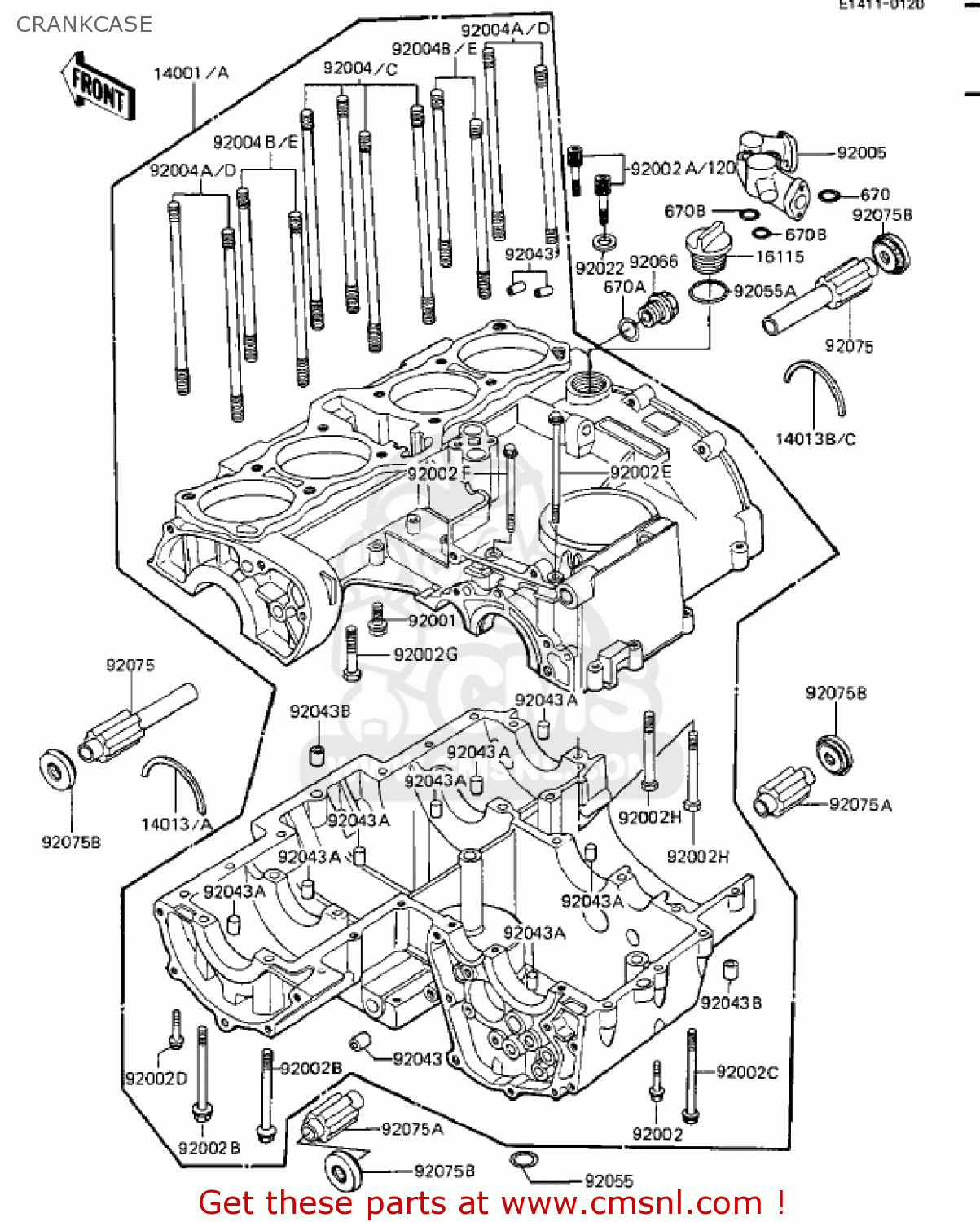

Crankcase diagram ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA
CRANKCASE ZX1100A2 GPZ 1984 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
14001
140015112
ref: 14001
SET-CRANKCASE,F.BLACK
€ 1,847.00
14001A
140015155
ref: 14001A
SET-CRANKCASE
€ 1,709.00
14013
14013013
ref: 14013
RING-POSITION,T=1.90
€ 7.50
14013A
140131004
ref: 14013A
RING-POSITION,CRANK
€ 3.00
14013B
140131005
ref: 14013B
RING-POSITION
€ 3.00
14013C
140131006
ref: 14013C
RING-POSITION,T=1.90
€ 3.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
92001
920011349
ref: 92001
BOLT,FLANGED,8X16
€ 3.50
92002
920021054
ref: 92002
BOLT,6X55
€ 3.00
92002A
920021073
ref: 92002A
BOLT,8X40
€ 6.00
92002B
920021077
ref: 92002B
BOLT,8X95
€ 7.50
92002C
920021078
ref: 92002C
BOLT,6X95
€ 2.50
92002D
920021080
ref: 92002D
BOLT,6X40
€ 3.50
92002E
921501140
ref: 92002E
BOLT
€ 4.00
92002F
920021141
ref: 92002F
BOLT,6X100
€ 2.50
92002G
920021329
ref: 92002G
BOLT,8X72
€ 6.50
92002H
920021330
ref: 92002H
BOLT,8X80
€ 4.50
92004
920041002
ref: 92004
STUD, 10X167
€ 10.50
92004A
920041003
ref: 92004A
STUD, 10X158
€ 10.50
92004B
920041004
ref: 92004B
STUD, 10X133
€ 11.50
92004C
920041115
ref: 92004C
STUD,10X167
€ 7.50
92004D
920041116
ref: 92004D
STUD,10X158
€ 8.50
92004E
920041117
ref: 92004E
STUD,10X133
€ 11.50
92005
920051101
ref: 92005
FITTING,OIL COOLER
€ 74.50
92022
920221086
ref: 92022
WASHER,8.2X16X1
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92043A
92042016
ref: 92043A
PIN,DOWEL,6X16
€ 3.50
92043B
920431037
ref: 92043B
PIN,DOWEL,10X8.2X14
€ 0.50
92055
92055048
ref: 92055
RING-O,OD=18
€ 3.00
92055A
92055049
ref: 92055A
'0'RING,31MM
€ 2.50
92066
920661098
ref: 92066
PLUG,14X12,F.BLACK
€ 12.50
92075
920751272
ref: 92075
DAMPER,ENGINE MOUNT,U
€ 32.50
92075A
920751273
ref: 92075A
DAMPER,ENGINE MOUNT,L
€ 19.00
92075B
920751274
ref: 92075B
DAMPER,ENG MOUNT,SIDE
€ 11.00
120
12QP0840
ref: 120
UNAVAILABLE IN PRICE BOOK
€ 0.00
670
670B1509
ref: 670
O RING,9MM
€ 1.00
670A
670B2015
ref: 670A
O RING,15MM
€ 1.00
670B
670B2018
ref: 670B
O RING,18MM
€ 1.00
