TRANSMISSION
ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA

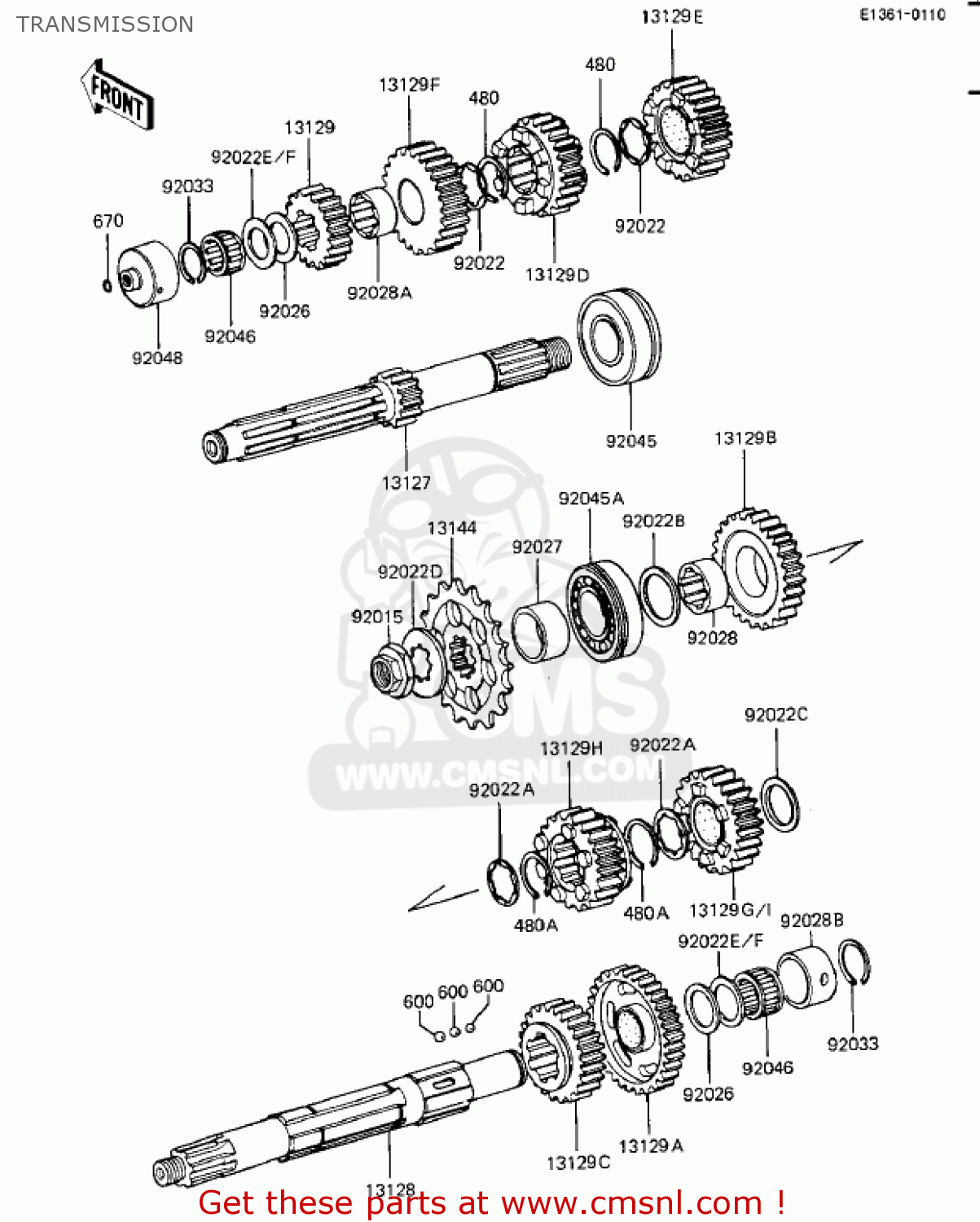

Transmission diagram ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA
TRANSMISSION ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
13127
131271038
ref: 13127
SHAFT-TRANSMISSION IN
€ 222.50
13126
131281048
ref: 13126
SHAFT-TRANSMISSION OU
€ 257.00
13129
131291235
ref: 13129
GEAR,INPUT 2ND,18T
€ 141.00
13129A
131291239
ref: 13129A
GEAR,OUTPUT LOW,37T
€ 188.00
13129B
131291240
ref: 13129B
GEAR,OUTPUT 2ND,33T
€ 159.50
13129C
131291242
ref: 13129C
GEAR,OUTPUT 4TH,27T
€ 120.50
13129D
131291566
ref: 13129D
GEAR,INPUT 3RD,19T
€ 163.00
13129E
131291567
ref: 13129E
GEAR,INPUT 4TH,23T
€ 179.50
13129F
131291568
ref: 13129F
GEAR,INPUT TOP,25T
€ 202.50
13129G
131291569
ref: 13129G
GEAR, OUTPUT 3RD, 27T
€ 100.50
13129H
131291570
ref: 13129H
GEAR,OUTPUT TOP,26T
€ 247.00
13129I
131291571
ref: 13129I
GEAR,OUTPUT 3RD,27T
€ 141.00
13144
131441083
ref: 13144
SPROCKET-OUTPUT,15T
€ 36.00
92015
920151210
ref: 92015
NUT,20MM
€ 12.00
92022
920221077
ref: 92022
WASHER,LOCK (O.D=35O)
€ 7.50
92022A
920221218
ref: 92022A
WASHER,TOOTHED,30X42X
€ 3.00
92022B
920221219
ref: 92022B
WASHER,28.3X42X2.9
€ 10.50
92022C
920221220
ref: 92022C
WASHER,32.3X42X3
€ 7.50
92022D
922001060
ref: 92022D
WASHER
€ 4.00
92022E
92022212
ref: 92022E
WASHER-PLAIN,22MM
€ 6.50
92022F
92022213
ref: 92022F
WASHER,22.3X35X1.2
€ 7.00
92026
920261020
ref: 92026
SPACER,22X35.5X1.0
€ 3.50
92027
920271339
ref: 92027
COLLAR,28X40X20.5
€ 19.00
92028
920281112
ref: 92028
BUSHING,2ND GEAR
€ 28.00
92028A
920281124
ref: 92028A
BUSHING,TOP GEAR
€ 31.00
92028B
92028123
ref: 92028B
BUSHING,OUTPUT SHAFT
€ 36.50
92033
92033025
ref: 92033
CIRCLIP,25MM
€ 3.00
92045
920451028
ref: 92045
BEARING-BALL,5305NSH2
€ 135.00
92045A
920451034
ref: 92045A
BEARING-BALL,63/28NC3
€ 53.50
92046
92046031
ref: 92046
BEARING-NEEDLE,FWF-22
€ 19.50
92048
920481012
ref: 92048
RACE,DRIVE SHAFT BEAR
€ 40.00
480
480J2800
ref: 480
CIRCLIP-TYPE-C,28MM
€ 3.50
480A
480J3200
ref: 480A
CIRCLIP-TYPE-C,32MM
€ 1.00
600
600A0600
ref: 600
BALL-STEEL,3/16
€ 0.50
670
670B1508
ref: 670
O RING,8MM
€ 1.00
