GEAR CHANGE MECHANISM

ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA

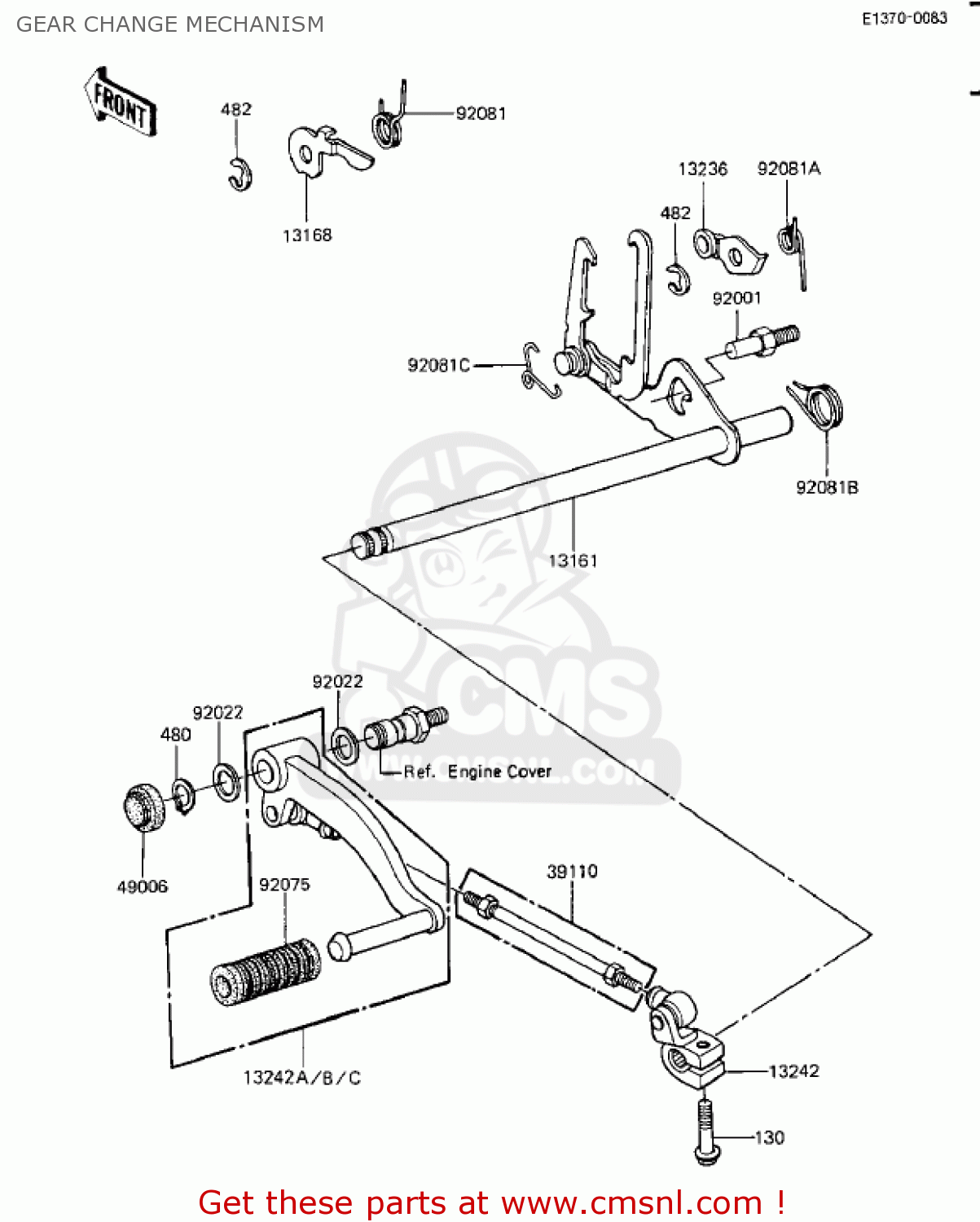

Gear change mechanism diagram ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM ZX1100A1 GPZ 1983 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13161
131611023
ref: 13161
LEVER-COMP-CHANGE SHA
131611023
€ 65.00
13168
131681143
ref: 13168
LEVER,GEAR POSITIONIN
€ 6.00
13236
132361029
ref: 13236
LEVER-COMP,NEUTRAL PO
132361029
€ 8.00
13242
132421048
ref: 13242
LEVER-ASSY-CHANGE,ROD
132421048
€ 32.50
13242A
132421153
ref: 13242A
(-JKAZXBA1 DA003887)
LEVER-ASSY-CHANGE,PDL
132421153
€ 51.50
13242B
132421156
ref: 13242B
LEVER-ASSY-CHANGE,PED
132421156
€ 24.00
13242C
132421156
ref: 13242C
(JKAZXBA1 DA003888-)
LEVER-ASSY-CHANGE,PED
132421156
€ 24.00
39110
391101016
ref: 39110
ROD-ASSY-TIE,L=60,BLA
391101016
€ 8.50
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
490061061
€ 6.00
92001
920011401
ref: 92001
BOLT,RETURN SPRING
920011401
€ 3.00
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
92022072
€ 2.50
92075
13157004
ref: 92075
RUBBER-CHANGE PEDAL
13157004
€ 4.00
92075
13157004
ref: 92075
RUBBER-CHANGE PEDAL
13157004
€ 4.00
92081
920811284
ref: 92081
SPRING,PSTNNG LEVER
920811284
€ 3.50
92081A
920811285
ref: 92081A
SPRING,NEUTRAL POSITI
920811285
€ 3.50
92081B
920811589
ref: 92081B
SPRING,CHANGE PEDAL R
920811589
€ 7.00
92081C
92083018
ref: 92081C
SPRING-KICK PAWL
92083018
€ 6.00
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
482
482J6000
ref: 482
CIRCLIP-TYPE-E,6MM
482J6000
€ 0.50
