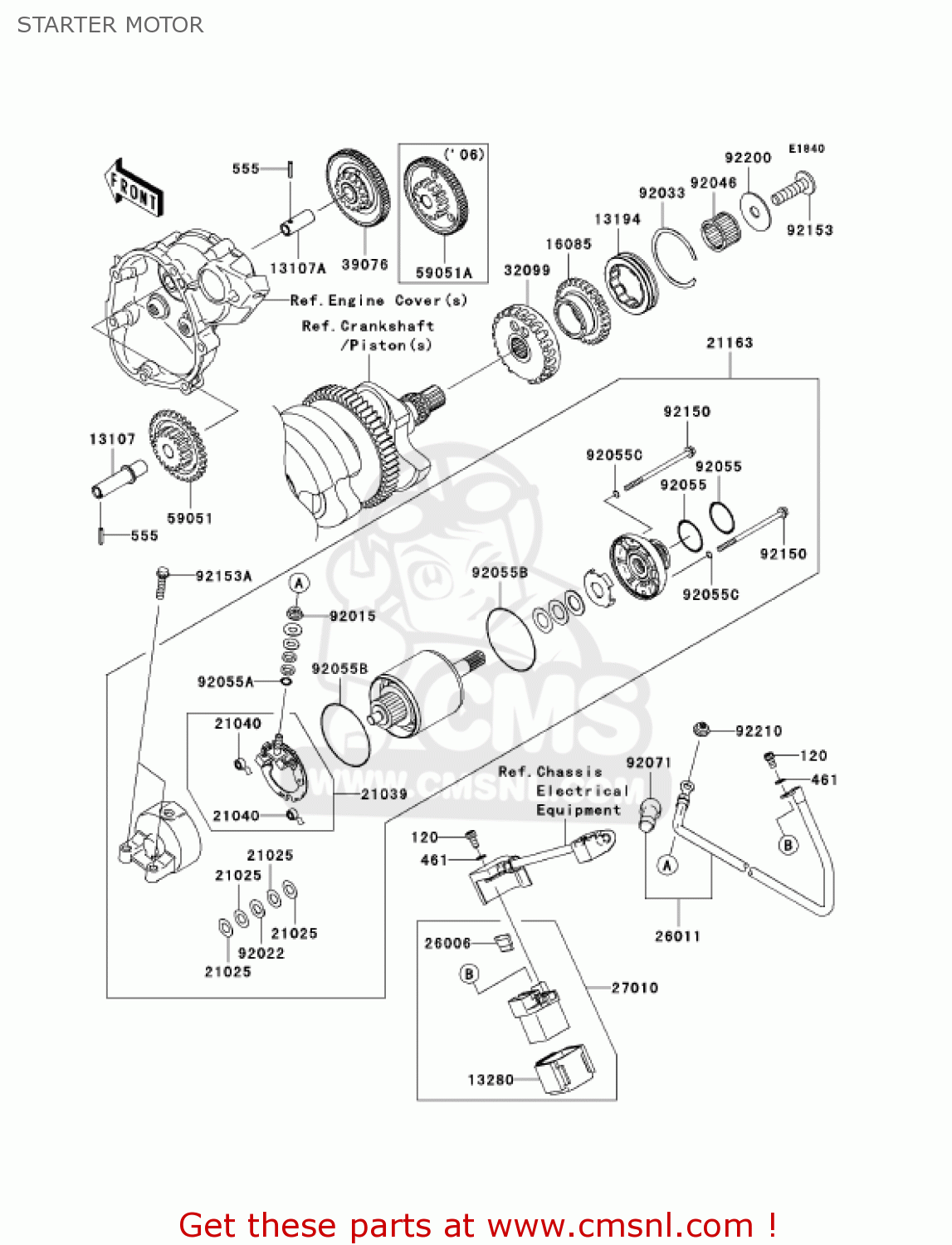

STARTER MOTOR

ref

part #

description

quantity

120

120S0510
ref: 120

BOLT-SOCKET

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

555

555A0316
ref: 555

PIN-SPRING,3X16

€ 1.00

13107

131070105
ref: 13107

SHAFT,ONEWAY CLUTCH S

€ 33.50

13107A

131070124
ref: 13107A

SHAFT,STARTER SIDE

€ 6.00

13194

131943704
ref: 13194

CLUTCH-ONEWAY

€ 81.50

13280

132801263
ref: 13280

HOLDER

€ 9.00

16085

160850102
ref: 16085

GEAR,29T

€ 113.50

21025

21025011
ref: 21025

WASHER, THRUST, 0.2T

€ 4.00

21039

210391066
ref: 21039

BRUSH

€ 27.50

21040

210401057
ref: 21040

SPRING-BRUSH

€ 5.50

21163

211630028
ref: 21163

STARTER-ELECTRIC

€ 703.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26011

260110100
ref: 26011

WIRE-LEAD

€ 30.50

27010

270101446
ref: 27010

SWITCH,MAGNETIC

€ 116.50

32099

320990019
ref: 32099

CASE,STARTER CLUTCH

€ 95.50

59051

590510057
ref: 59051

GEAR-SPUR,ONEWAY CLUT

€ 69.00

59051A

590510058
ref: 59051A

GEAR-SPUR,STARTER SID

€ 61.50

92015

920151476
ref: 92015

NUT,6MM

€ 2.50

92022

920221132
ref: 92022

WASHER,9.1X18X0.8

€ 4.00

92033

920333731
ref: 92033

RING-SNAP

€ 4.00

92046

920460004
ref: 92046

BEARING-NEEDLE,RS2630

€ 24.50

92055

920551276
ref: 92055

RING-O

€ 6.50

92055A

920551370
ref: 92055A

RING-O,4.5X2.0

€ 3.00

92055B

920551550
ref: 92055B

RING-O

€ 6.00

92055C

920551551
ref: 92055C

RING-O

€ 2.50

92071

920710024
ref: 92071

GROMMET

€ 7.50

92150

921501969
ref: 92150

BOLT

€ 4.00

92153

921531521
ref: 92153

BOLT,TORX,10X38

€ 6.50

92153A

921531563
ref: 92153A

BOLT-FLANGED,6X25

€ 2.00

92200

922000238
ref: 92200

WASHER,10.5X37X1.6

€ 2.50

92210

922100188
ref: 92210

NUT,6MM

€ 1.50
