CHASSIS ELECTRICAL EQUIPMENT

ZX1000D6F NINJA ZX10R 2006 USA CALIFORNIA CANADA

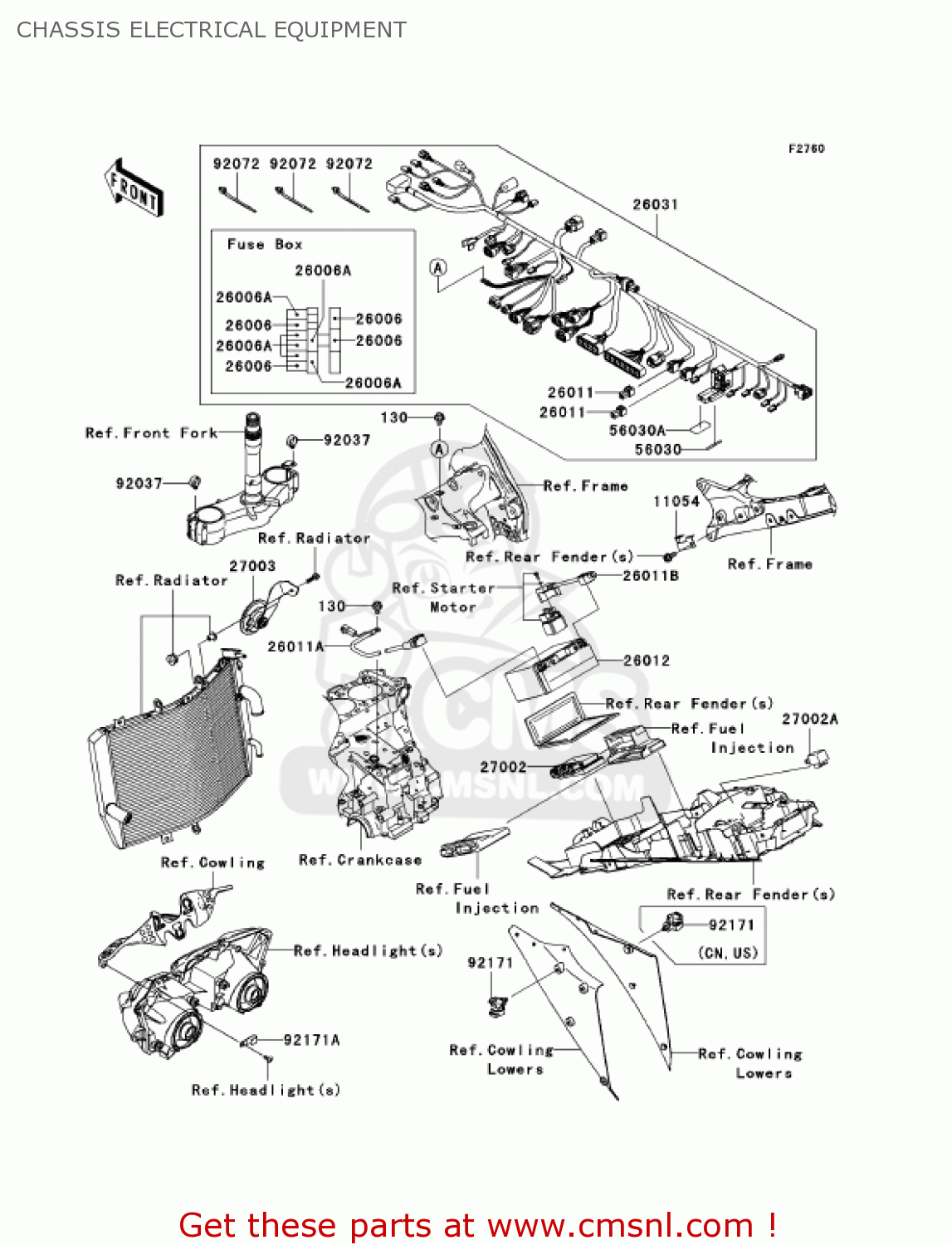

Chassis electrical equipment diagram ZX1000D6F NINJA ZX10R 2006 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130V0610
ref: 130

BOLT-FLANGED,6X10

€ 0.50

11054

110540043
ref: 11054

BRACKET

€ 4.00

26006

260060001
ref: 26006

FUSE,15A

€ 4.00

26006A

260061078
ref: 26006A

FUSE,10A

€ 3.50

26011

260110037
ref: 26011

WIRE-LEAD

€ 9.50

26011A

260110078
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 38.00

26011B

260110079
ref: 26011B

WIRE-LEAD,BATTERY(+)

€ 63.00

26012

260120036
ref: 26012

BATTERY,YT12B-BS,12V

€ 137.50

26031

260310450
ref: 26031

HARNESS,MAIN

€ 405.00

27002

270020007
ref: 27002

RELAY-ASSY

€ 112.50

27002A

270021101
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270030041
ref: 27003

HORN

€ 72.00

56030

560300098
ref: 56030

LABEL,FUSE BOX

€ 2.50

56030A

560300109
ref: 56030A

LABEL,FUSE BOX

€ 2.50

92037

920371827
ref: 92037

CLAMP,HOSE

€ 5.00

92072

920721414
ref: 92072

BAND

€ 2.00

92171

921710068
ref: 92171
[CA]

CLAMP,CLIP,DIA=20

€ 2.00

92171

921710068
ref: 92171
[CN,US

CLAMP,CLIP,DIA=20

€ 2.00

92171A

921710305
ref: 92171A

CLAMP

€ 4.50
