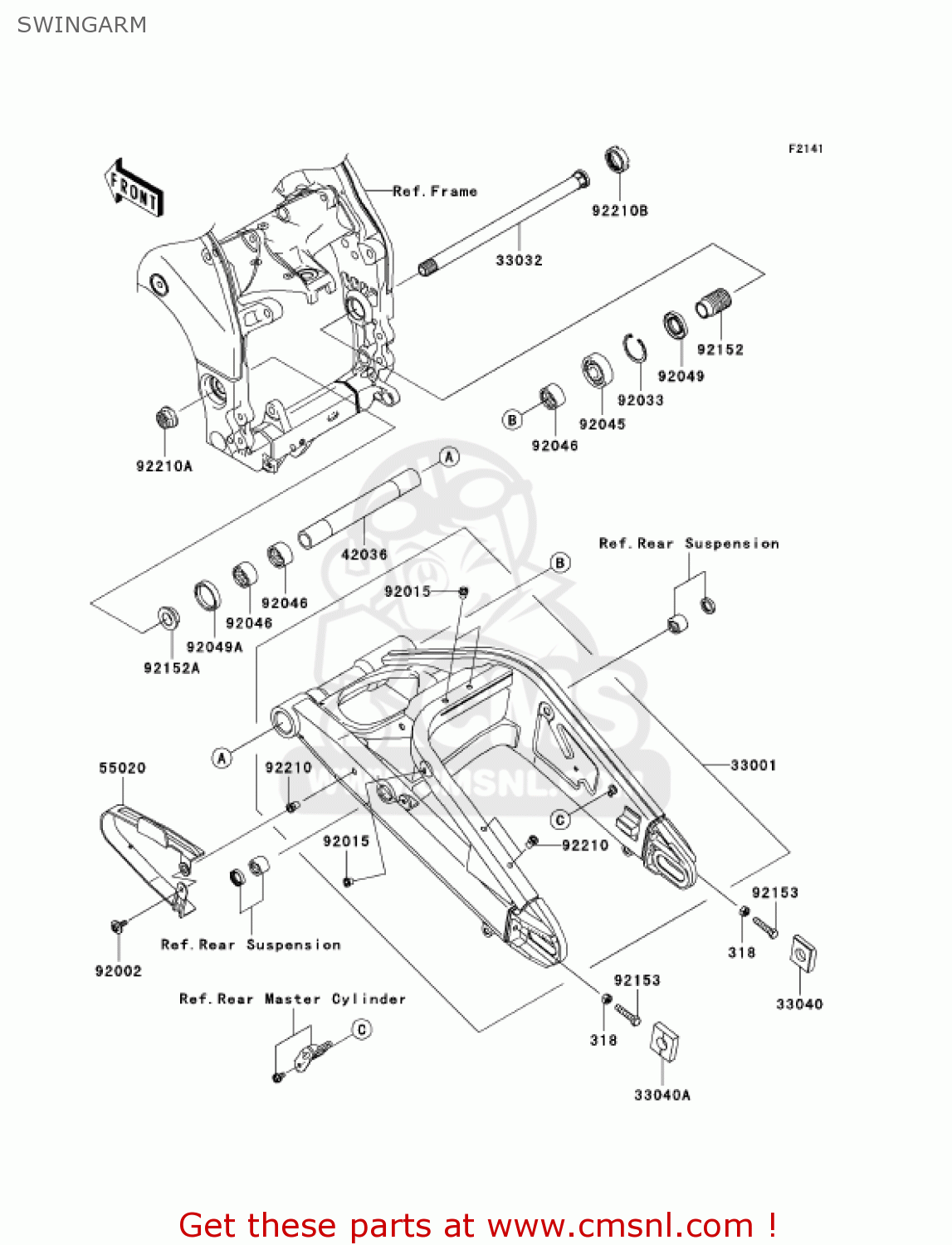

SWINGARM

ref

part #

description

quantity

318

318L0800
ref: 318

NUT-HEX-SMALL

€ 2.00

33001

3300100398F
ref: 33001

ARM-COMP-SWING,F.S.BL

€ 1,098.50

33032

330320009
ref: 33032

SHAFT-SWING ARM

€ 79.50

33040

330400008
ref: 33040

ADJUSTER-CHAIN,RH

€ 27.50

33040A

330401109
ref: 33040A

ADJUSTER-CHAIN

€ 13.00

42036

420361341
ref: 42036

SLEEVE,SWING ARM PIVO

€ 55.00

55020

550200101
ref: 55020

GUARD,CHAIN

€ 35.00

92002

920021187
ref: 92002

BOLT,6X16

€ 2.50

92015

920151791
ref: 92015

NUT,POP,6MM

€ 3.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92045

920450017
ref: 92045

BEARING-BALL,6004UL11

€ 14.00

92046

920460008
ref: 92046

BEARING-NEEDLE,7E-HVS

€ 21.00

92049

920491314
ref: 92049

SEAL-OIL,MHSA25 42 6

€ 9.00

92049A

920491352
ref: 92049A

SEAL-OIL

€ 7.50

92152

921520154
ref: 92152

COLLAR,SWING ARM,L=12

€ 29.50

92152A

921521234
ref: 92152A

COLLAR

€ 7.50

92153

921530736
ref: 92153

BOLT,8X40

€ 3.00

92210

922100099
ref: 92210

NUT,6MM

€ 3.50

92210A

922100106
ref: 92210A

NUT,FLANGED,20MM

€ 9.00

92210B

922100134
ref: 92210B

NUT,30MM

€ 20.50
