GEAR CHANGE MECHANISM

ZX1000B3 ZX10 1990 USA CALIFORNIA

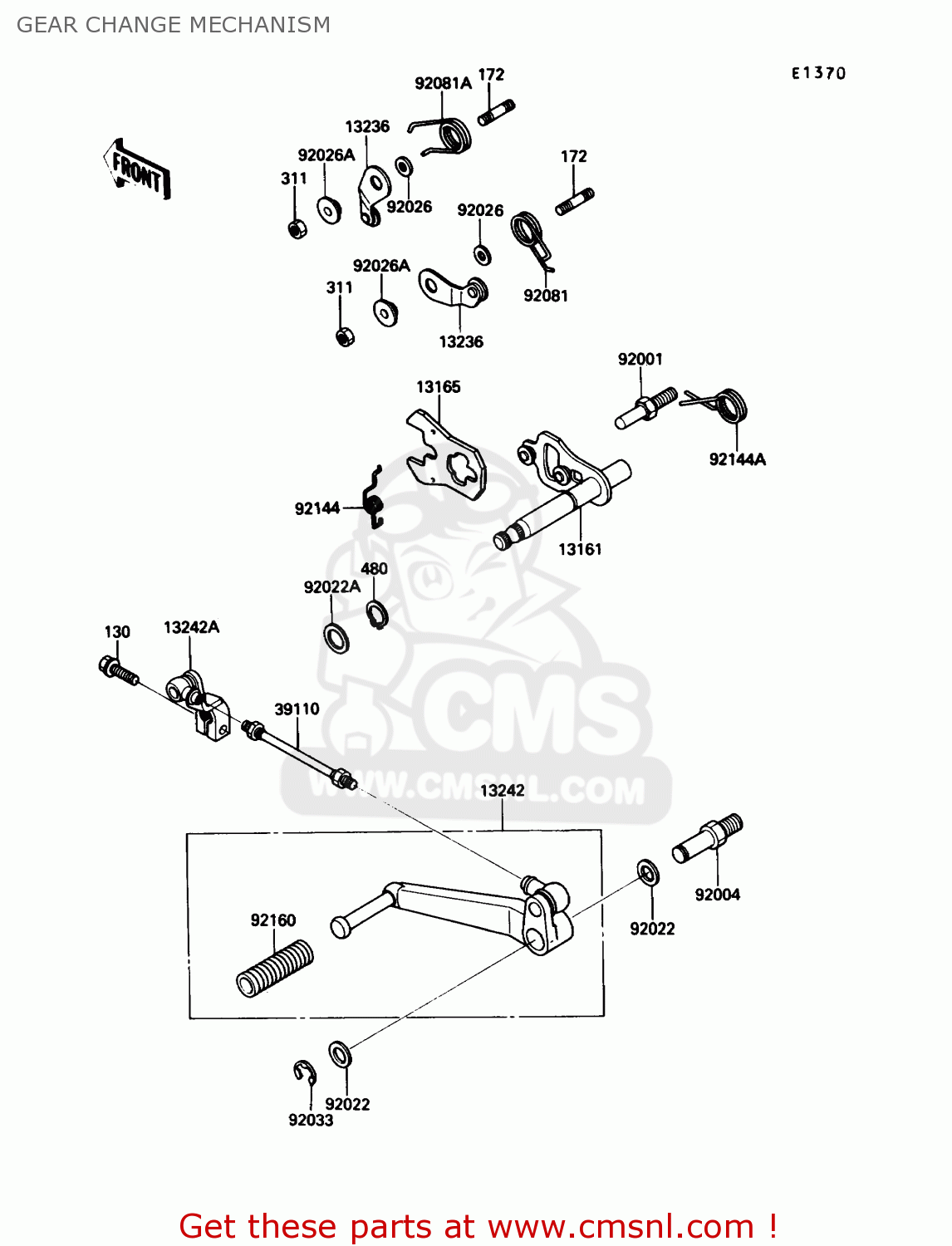

Gear change mechanism diagram ZX1000B3 ZX10 1990 USA CALIFORNIA

GEAR CHANGE MECHANISM ZX1000B3 ZX10 1990 USA CALIFORNIA
GEAR CHANGE MECHANISM ZX1000B3 ZX10 1990 USA CALIFORNIA
GEAR CHANGE MECHANISM ZX1000B3 ZX10 1990 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
130S0620
€ 2.50
172
172G0614
ref: 172
STUD,6X14
172G0614
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
311G0600
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13161
131611155
ref: 13161
LEVER-COMP-CHANGE SHA
131611155
€ 76.50
13165
131651120
ref: 13165
PAWL
131651120
€ 9.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
132361103
€ 13.00
13242
132421191
ref: 13242
LEVER-ASSY-CHANGE,PED
132421191
€ 42.00
13242A
132421242
ref: 13242A
LEVER-ASSY-CHANGE,BOS
132421242
€ 26.00
39110
391101015
ref: 39110
ROD-ASSY-TIE,CHANGE L
391101015
€ 8.50
92001
920011455
ref: 92001
BOLT
920011455
€ 3.00
92004
920041164
ref: 92004
STUD,CHANGE PEDAL,PIV
920041164
€ 10.00
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
920221593
€ 3.00
92022A
920221772
ref: 92022A
WASHER
920221772
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
92026094
€ 6.50
92026A
920261217
ref: 92026A
SPACER
920261217
€ 3.50
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
920331178
€ 2.50
92081
920811645
ref: 92081
SPRING
920811645
€ 9.00
92081A
920811742
ref: 92081A
SPRING
920811742
€ 7.00
92144
921441029
ref: 92144
SPRING
921441029
€ 5.00
92144A
921441345
ref: 92144A
SPRING,CHANGE PEDAL R
921441345
€ 11.50
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
921601036
€ 3.50
