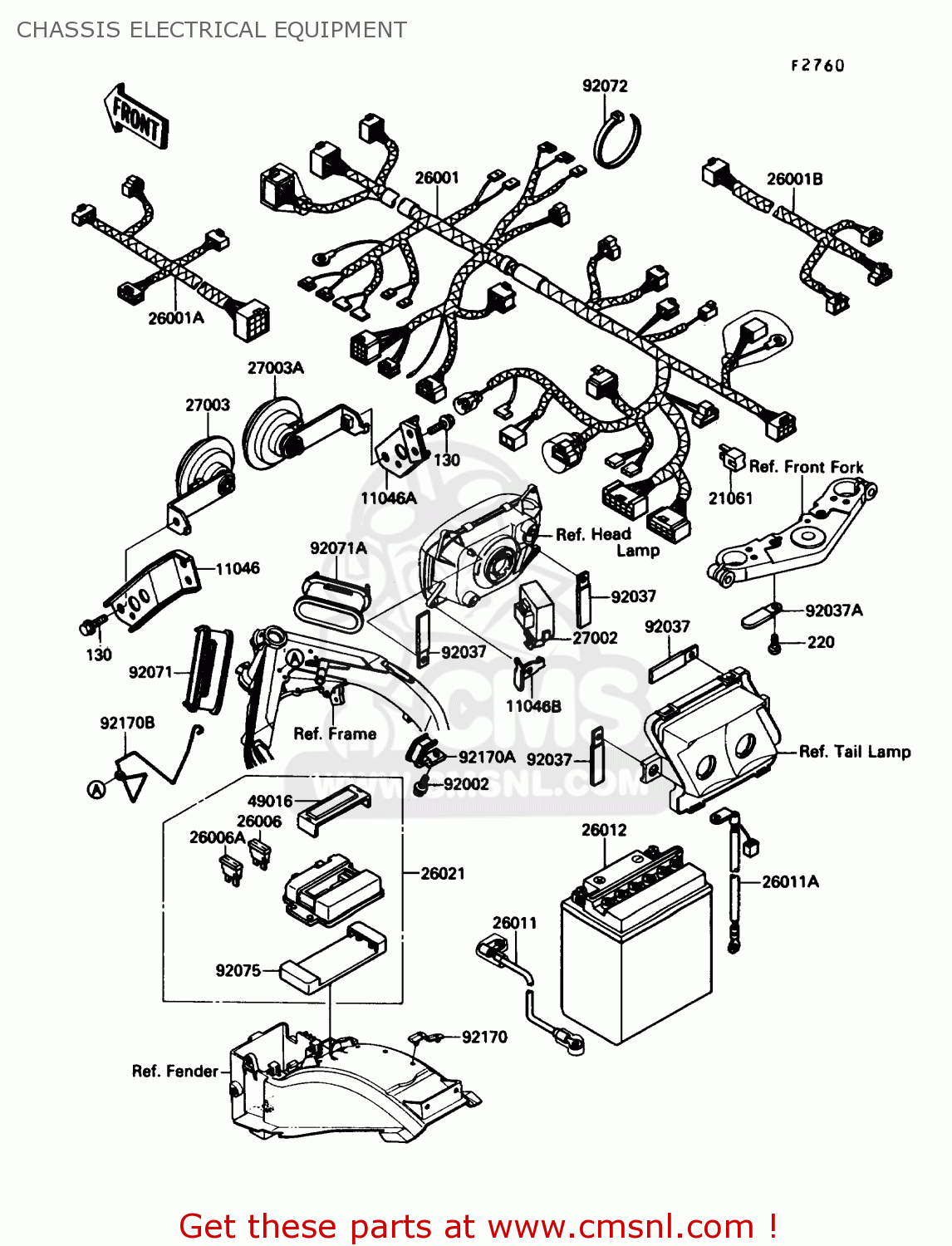

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130J0812
ref: 130

BOLT-FLANGED

€ 0.50

220

220C0510
ref: 220

SCREW-PAN-CROS

€ 2.50

11046

110461255
ref: 11046

BRACKET,HORN,LH

€ 6.00

11046A

110461256
ref: 11046A

BRACKET,HORN,RH

€ 6.50

11046B

110461373
ref: 11046B

BRACKET,RELAY

€ 4.00

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26001

260011896
ref: 26001

HARNESS,MAIN

€ 177.00

26001A

260011897
ref: 26001A

HARNESS,FRONT

€ 43.00

26001B

260011920
ref: 26001B

HARNESS,RR

€ 20.00

26006

260061006
ref: 26006

FUSE,30A-G

€ 3.00

26006A

260061007
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111427
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 23.00

26011A

260111428
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 18.50

26012

260121224
ref: 26012

BATTERY,12V 15AH,FB14

€ 88.00

26021

260211071
ref: 26021

JUNCTION BOX

€ 159.00

27002

270021063
ref: 27002

RELAY-ASSY,SIGNAL LAM

€ 49.50

27003

270031299
ref: 27003

HORN,LH

€ 45.00

27003A

270031300
ref: 27003A

HORN,RH

€ 45.00

49016

490161125
ref: 49016

COVER-SEAL,FUSE

€ 6.00

92002

920021628
ref: 92002

BOLT,6X10

€ 3.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371539
ref: 92037A

CLAMP,L=45

€ 3.00

92071

920711169
ref: 92071

GROMMET,HARNESS,LH

€ 14.50

92071A

920711170
ref: 92071A

GROMMET,HARNESS,RH

€ 12.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92170

921701015
ref: 92170

CLAMP,HARNESS

€ 3.00

92170A

921701024
ref: 92170A

CLAMP,HARNESS

€ 3.00

92170B

921701029
ref: 92170B

CLAMP,HARNESS

€ 9.50
