RADIATOR
ZX1000A3A GPZ1000RX 1988 UNITED KINGDOM

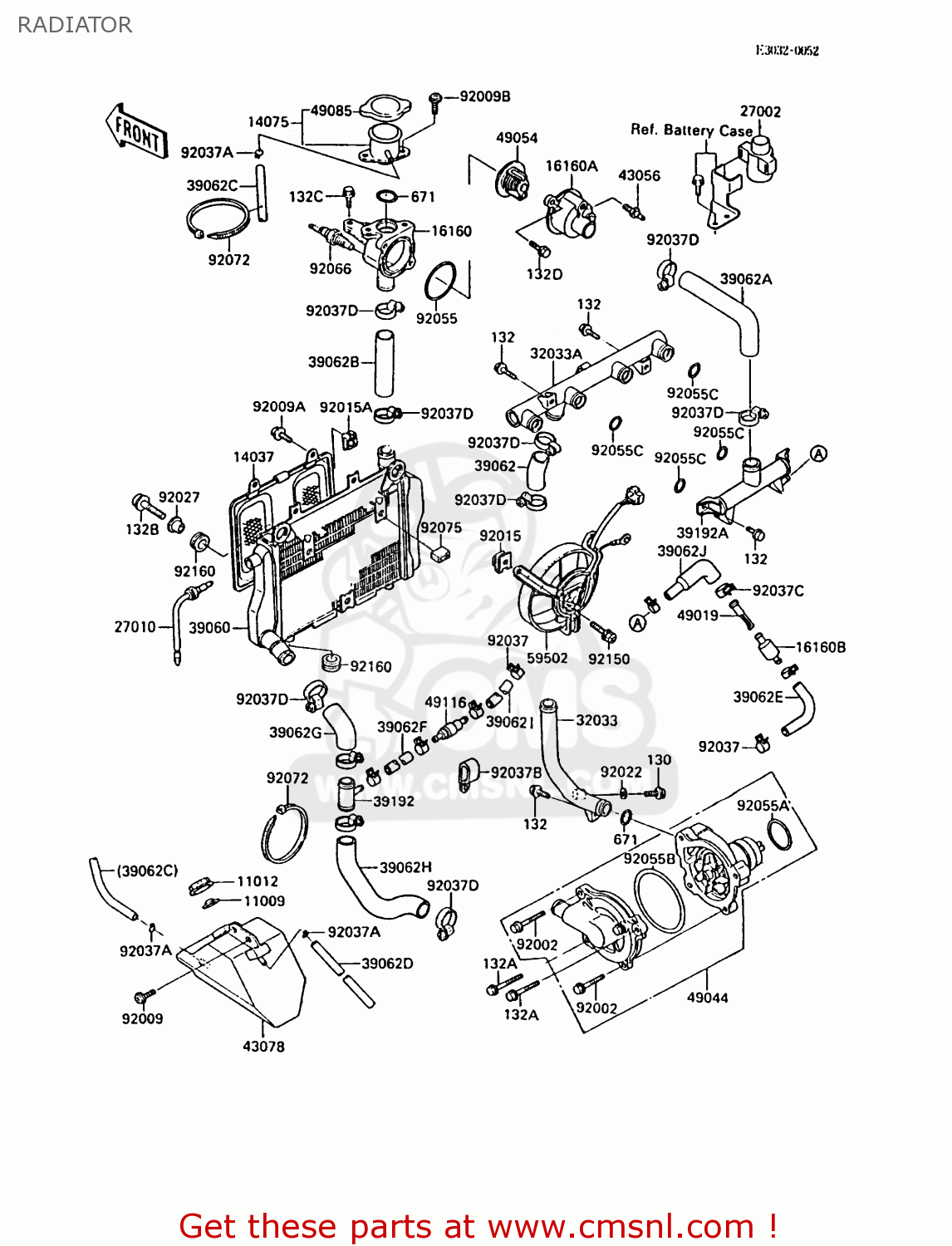

Radiator diagram ZX1000A3A GPZ1000RX 1988 UNITED KINGDOM
RADIATOR ZX1000A3A GPZ1000RX 1988 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14037
140371070
ref: 14037
SCREEN,RADIATOR
€ 66.00
14075
140751062
ref: 14075
CAP-ASSY,RADIATOR
€ 89.50
16160
161601100
ref: 16160
BODY
€ 41.00
16160A
161601111
ref: 16160A
BODY
€ 31.50
16160B
161601151
ref: 16160B
BODY,FILTER
€ 6.50
27002
270021054
ref: 27002
RELAY-ASSY
€ 31.50
27010
270101180
ref: 27010
SWITCH,FAN
€ 104.50
32033
320331206
ref: 32033
PIPE
€ 98.00
32033A
320331262
ref: 32033A
PIPE
€ 124.50
39060
390601063
ref: 39060
RADIATOR
€ 728.00
39062
390621072
ref: 39062
HOSE-COOLING
€ 14.00
39062A
390621118
ref: 39062A
HOSE-COOLING
€ 48.50
39062B
390621119
ref: 39062B
HOSE-COOLING
€ 9.50
39062C
390621121
ref: 39062C
HOSE-COOLING,5.5X10.5
€ 16.50
39062D
390621144
ref: 39062D
HOSE-COOLING,5.5X10.5
€ 25.00
39062E
390621304
ref: 39062E
HOSE-COOLING,FILTER-C
€ 4.50
39062F
390621305
ref: 39062F
HOSE-COOLING,CHECK VA
€ 5.50
39062G
390621306
ref: 39062G
HOSE-COOLING,RADIATOR
€ 16.50
39062H
390621307
ref: 39062H
HOSE-COOLING,PUMP
€ 30.00
39062I
390621308
ref: 39062I
HOSE-COOLING,CARB-CHE
€ 5.50
39062J
390621310
ref: 39062J
HOSE-COOLING,HEAD PIP
€ 9.00
39192
391921004
ref: 39192
PIPE-WATER
€ 41.50
39192A
391921005
ref: 39192A
PIPE-WATER
€ 92.50
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781063
ref: 43078
RESERVOIR
€ 46.50
49019
490191063
ref: 49019
FILTER-FUEL
€ 4.00
49044
490441058
ref: 49044
PUMP-WATER
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851053
ref: 49085
CAP-ASSY-PRESSURE
€ 23.50
49116
491161071
ref: 49116
VALVE-ASSY
€ 102.00
59502
595021056
ref: 59502
FAN-ASSY
€ 625.50
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92009
920091258
ref: 92009
SCREW
€ 3.00
92009A
920091261
ref: 92009A
SCREW,TAPPING,6MM
€ 2.00
92009B
920091288
ref: 92009B
SCREW,6X14
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
130
130J0610
ref: 130
BOLT-FLANGED
€ 1.50
132
132W0612
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132W0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
132B
132W0825
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132Y0616
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132Y0620
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
920371461
ref: 92037
CLAMP,TUBE
€ 1.00
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92037B
920371608
ref: 92037B
CLAMP
€ 5.50
92037C
920371861
ref: 92037C
CLAMP
€ 5.50
92037D
920371985
ref: 92037D
CLAMP,COOLING HOSE
€ 7.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551266
ref: 92055A
RING-O,33.8MM
€ 12.00
92055B
920551271
ref: 92055B
RING-O,WATER PUMP
€ 7.00
92055C
920551282
ref: 92055C
RING-O
€ 3.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92072
920721197
ref: 92072
BAND
€ 5.00
92075
920751446
ref: 92075
DAMPER,SIDE COVER
€ 3.00
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
