FRAME FITTINGS

ZX1000A3A GPZ1000RX 1988 UNITED KINGDOM

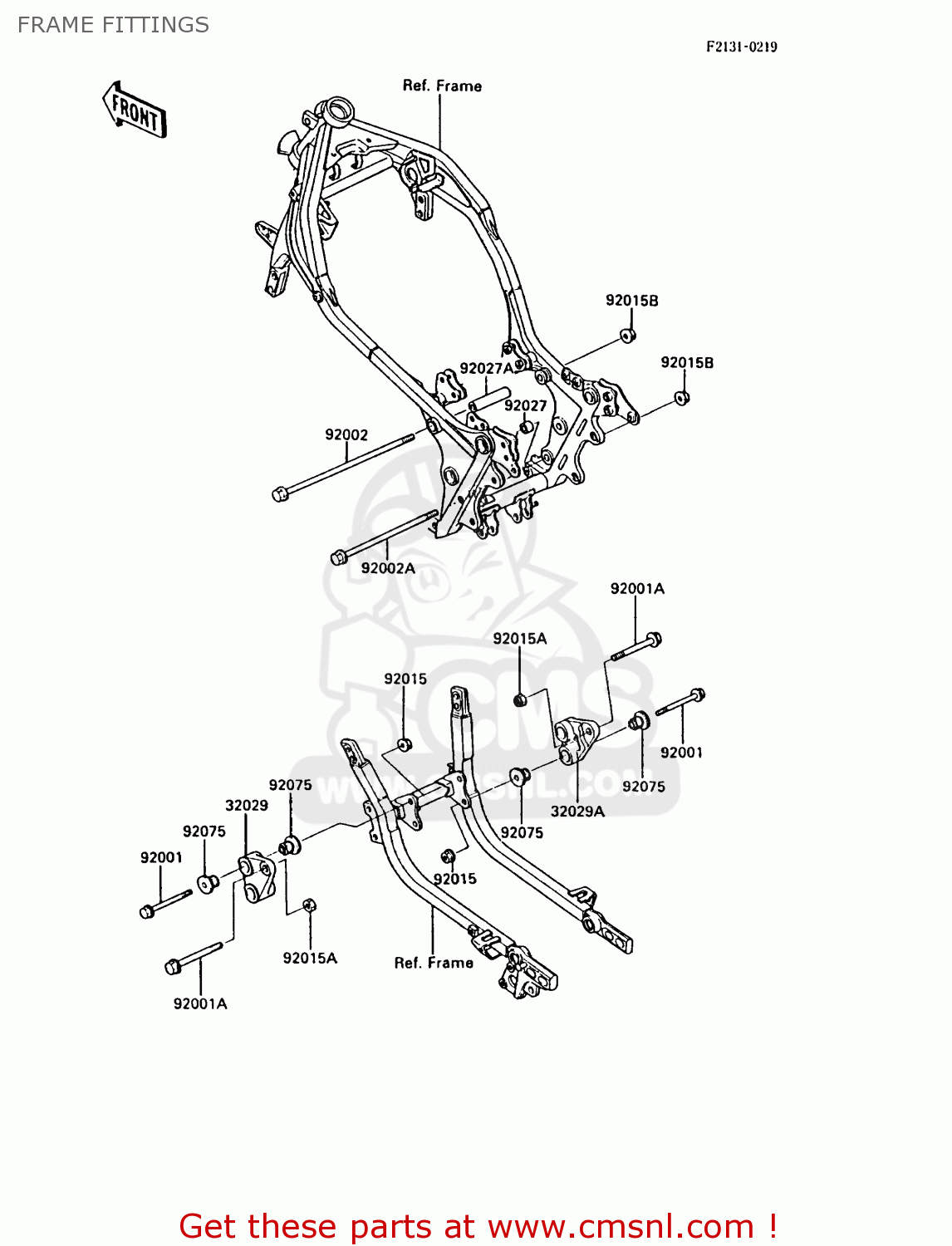

Frame fittings diagram ZX1000A3A GPZ1000RX 1988 UNITED KINGDOM

prices are in EUR

ref

part #

description

quantity

32029

320291396
ref: 32029

BRACKET-ENGINE,FR,LH

€ 36.00

32029A

320291397
ref: 32029A

BRACKET-ENGINE,FR,RH

€ 36.00

92001

920011581
ref: 92001

BOLT,FLANGED,8X60

€ 3.50

92001A

920011599
ref: 92001A

BOLT,FLANGED,10X60

€ 4.50

92002

920021519
ref: 92002

BOLT,FLANGED,10X295

€ 11.00

92002A

920021520
ref: 92002A

BOLT,FLANGED,10X230

€ 10.50

92015

920151406
ref: 92015

NUT,8MM

€ 3.00

92015A

920151429
ref: 92015A

NUT,10MM

€ 4.50

92015B

920151502
ref: 92015B

NUT,FLANGED,10MM

€ 7.00

92027

920271893
ref: 92027

COLLAR,10.5X23X20

€ 6.50

92027A

920271894
ref: 92027A

COLLAR,10.5X23X68.5

€ 12.00

92075

920751721
ref: 92075

DAMPER,ENGINE MOUNT

€ 12.50
