CYLINDER HEAD

ZR750H5 2005 CANADA

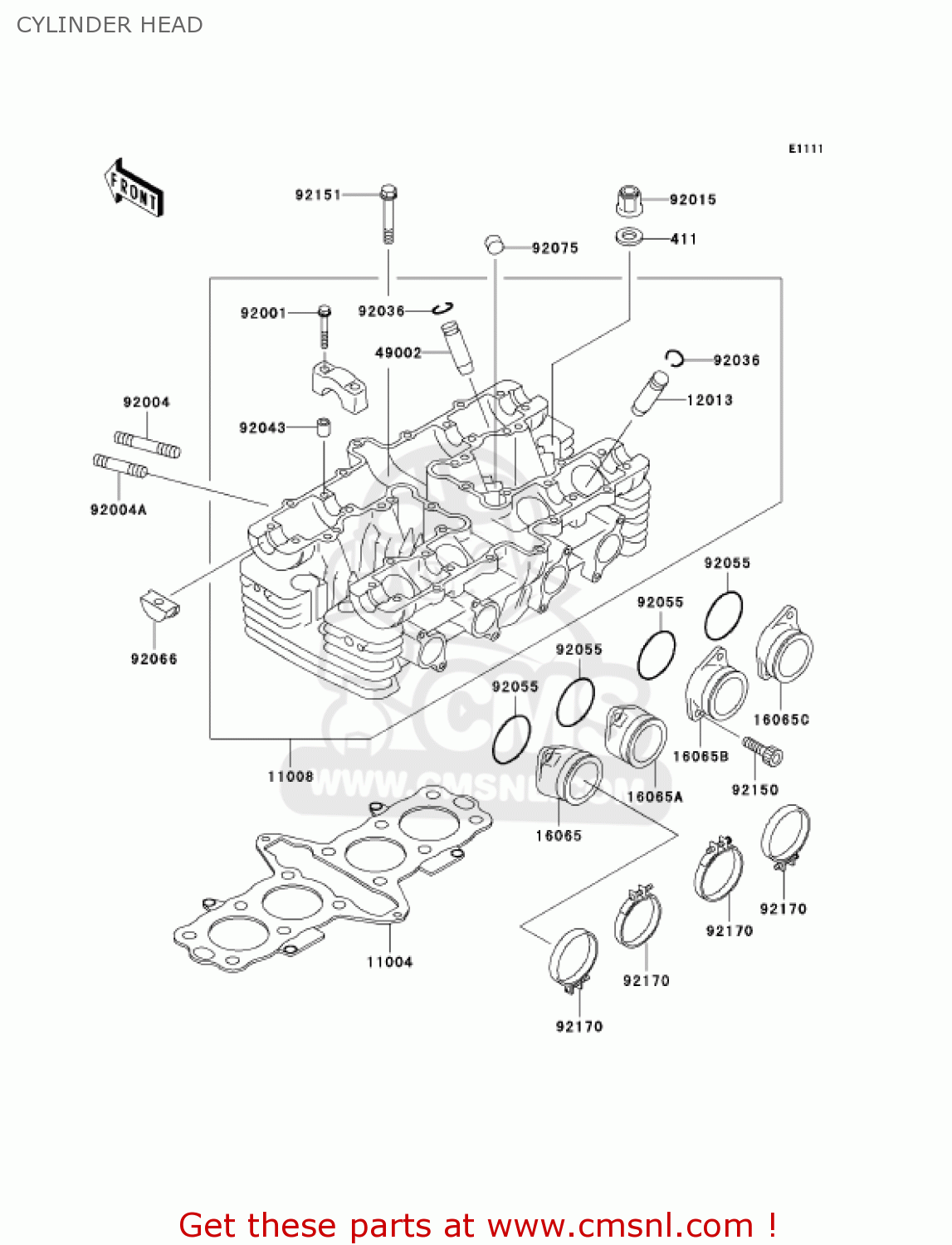

Cylinder head diagram ZR750H5 2005 CANADA

CYLINDER HEAD ZR750H5 2005 CANADA
CYLINDER HEAD ZR750H5 2005 CANADA
CYLINDER HEAD ZR750H5 2005 CANADA
prices are in EUR
ref
part #
description
quantity
411
411B1000
ref: 411
WASHER-PLAIN,10MM
411B1000
€ 0.50
11004
110041342
ref: 11004
GASKET-HEAD (NAS)
110041342
€ 67.50
11008
110081363
ref: 11008
HEAD-COMP-CYLINDER
110081363
€ 2,356.50
12013
12013009
ref: 12013
GUIDE-VALVE,INTAKE
12013009
€ 18.00
16065
160651256
ref: 16065
HOLDER-CARBURETOR,#1
160651256
€ 27.50
16065A
160651257
ref: 16065A
HOLDER-CARBURETOR,#2
160651257
€ 27.50
16065B
160651258
ref: 16065B
HOLDER-CARBURETOR,#3
160651258
€ 27.50
16065C
160651259
ref: 16065C
HOLDER-CARBURETOR,#4
160651259
€ 27.50
49002
490021002
ref: 49002
GUIDE,EXHAUST VALVE
490021002
€ 16.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92004
920041208
ref: 92004
STUD
920041208
€ 4.50
92004A
920041209
ref: 92004A
STUD
920041209
€ 4.50
92015
92015076
ref: 92015
NUT,FLANGED CAP,10MM
92015076
€ 9.00
92036
92036023
ref: 92036
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551256
ref: 92055
RING-O,32MM
920551256
€ 9.00
92066
920661509
ref: 92066
PLUG,HEAD COVER
920661509
€ 21.00
92075
92075182
ref: 92075
DAMPER
92075182
€ 2.50
92150
921501818
ref: 92150
BOLT,SOCKET,6X14
921501818
€ 3.00
92151
921511485
ref: 92151
BOLT,8X43
€ 1.50
92170
921701438
ref: 92170
CLAMP
921701438
€ 5.50
