AIR CLEANER
ZR750H5 2005 CANADA

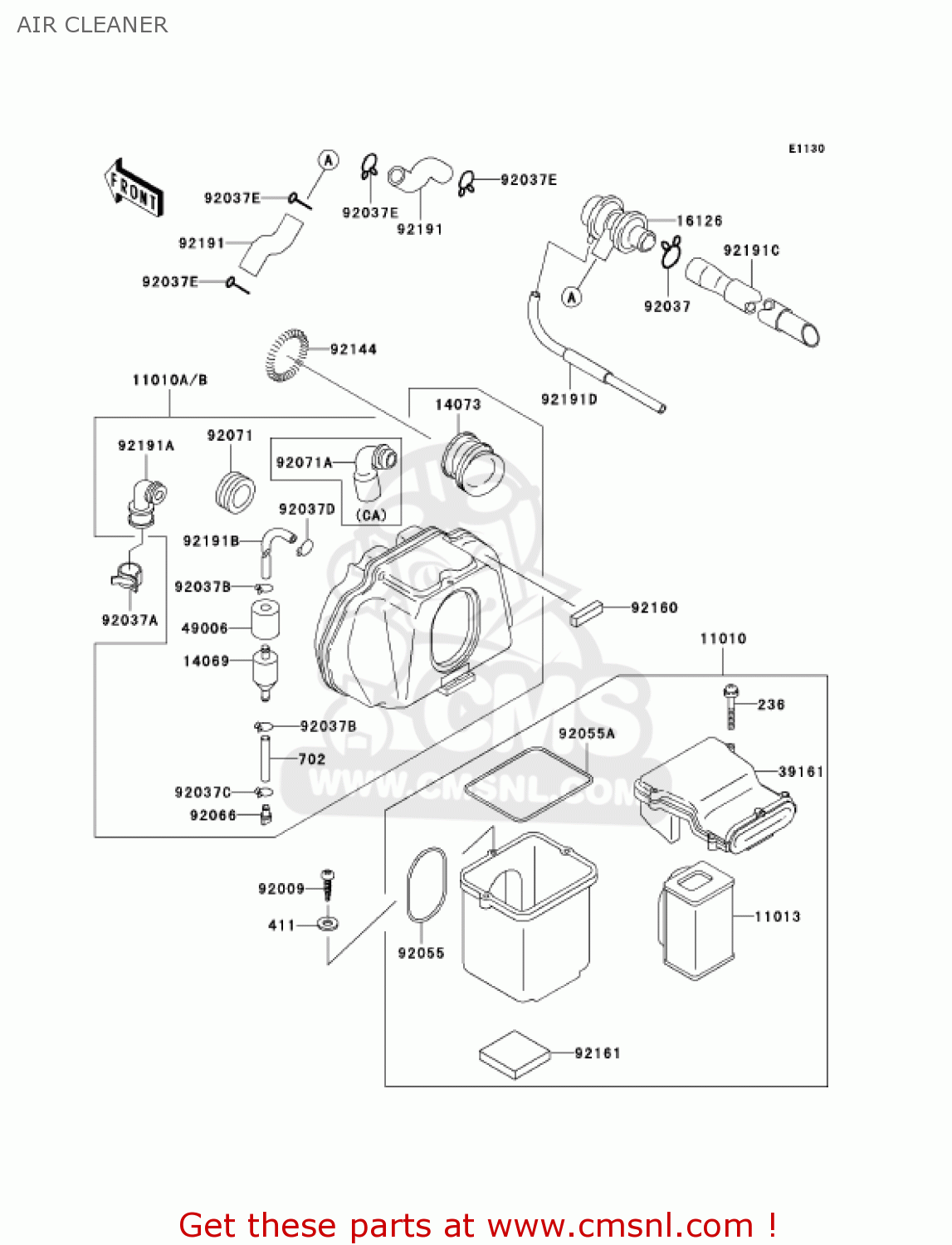

Air cleaner diagram ZR750H5 2005 CANADA
AIR CLEANER ZR750H5 2005 CANADA
×
prices are in EUR
ref
part #
description
quantity
236
236B0540
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
411
411F0500
ref: 411
WASHER,PLANE,5MM
€ 0.50
702
702A0745
ref: 702
TUBE-RUBBER
€ 4.00
11010
110101692
ref: 11010
FILTER-ASSY-AIR
€ 183.00
11010A
110101705
ref: 11010A
FILTER-ASSY-AIR,FR
€ 181.00
11013
110131157
ref: 11013
ELEMENT-AIR FILTER
€ 28.50
14069
140691051
ref: 14069
BREATHER
€ 6.50
14073
140731211
ref: 14073
DUCT,CARBURETOR
€ 24.00
16126
161261005
ref: 16126
VALVE,AIR SWITCH
€ 130.50
39161
391611078
ref: 39161
SILENCER-ASSY-INTAKE
€ 52.50
49006
490061267
ref: 49006
BOOT,BREATHER
€ 5.00
92009
920091399
ref: 92009
SCREW,TAPPING,5X20
€ 2.00
92037
920371076
ref: 92037
CLAMP,TUBE
€ 4.00
92037A
920371460
ref: 92037A
CLAMP
€ 7.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371712
ref: 92037C
CLAMP
€ 3.00
92037D
920371972
ref: 92037D
CLAMP,TUBE
€ 2.50
92037E
92037213
ref: 92037E
CLAMP, BREATHER TUBE
€ 2.50
92055
920551137
ref: 92055
RING-O,91X6
€ 6.00
92055A
920551457
ref: 92055A
RING-O,AIR FILTER CAP
€ 5.50
92066
920661211
ref: 92066
PLUG
€ 5.50
92071
920711028
ref: 92071
GROMMET AIR FILTER
€ 4.50
92144
921441771
ref: 92144
SPRING,AIR FILTER DUC
€ 8.00
92160
921601183
ref: 92160
DAMPER
€ 2.50
92161
921611082
ref: 92161
DAMPER
€ 3.00
92191
921911408
ref: 92191
TUBE,AIR SWITCH
€ 6.00
92191A
921911431
ref: 92191A
TUBE,BREATHER
€ 8.00
92191B
921911432
ref: 92191B
TUBE,AIR FILTER
€ 9.50
92191C
921911444
ref: 92191C
TUBE,SWITCH-CLEANER
€ 12.50
92191D
921911445
ref: 92191D
TUBE,3 WAY-CARBURETOR
€ 9.00
