IGNITION SYSTEM
ZR750H4 2004 CANADA

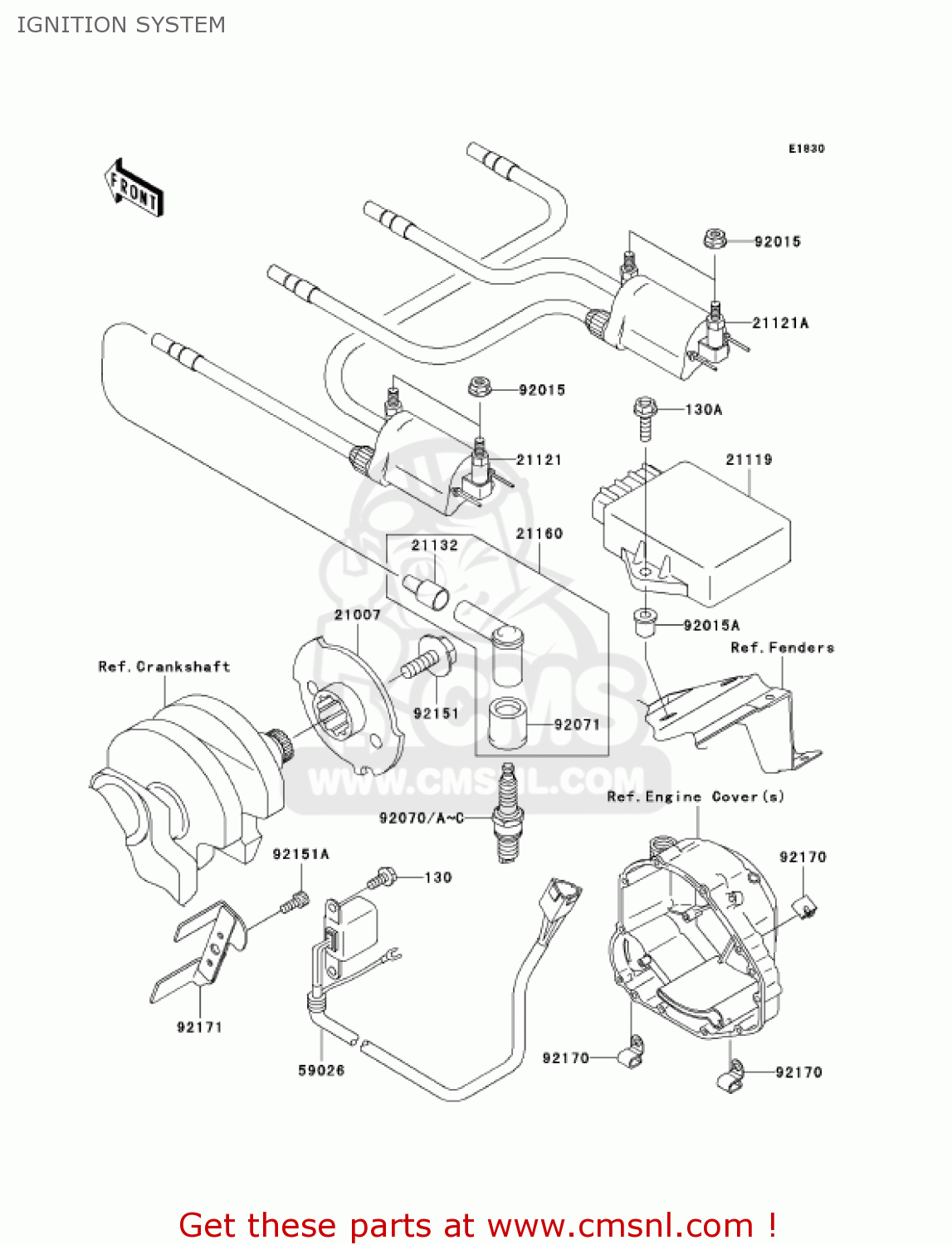

Ignition system diagram ZR750H4 2004 CANADA
IGNITION SYSTEM ZR750H4 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0512
ref: 130
BOLT-FLANGED
€ 1.00
130A
130J0620
ref: 130A
BOLT-FLANGED,6X20
€ 2.50
21007
210071353
ref: 21007
ROTOR
€ 39.00
21119
211191541
ref: 21119
IGNITER
€ 668.50
21121
211211177
ref: 21121
COIL-IGNITION,#1
€ 161.00
21121A
211211178
ref: 21121A
COIL-IGNITION,#2
€ 161.00
21132
21132005
ref: 21132
GROMMET,SPARK PLUG CP
€ 2.50
21160
211601085
ref: 21160
CAP-ASSY-PLUG
€ 15.00
59026
590261152
ref: 59026
COIL-PULSING
€ 85.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151700A
ref: 92015A
NUT
€ 5.50
92070
?
ref: 92070
(LOCAL PROCUREMENT I
?
92070A
?
ref: 92070A
(LOCAL PROCUREMENT I
?
92070B
920701189
ref: 92070B
DR9EA (NGK SPARKPLUG)
€ 4.00
92070C
920701199
ref: 92070C
(OPTION)
DR8EA (NGK SPARKPLUG)
€ 4.00
92071
920711184
ref: 92071
GROMMET,PLUG CAP
€ 4.00
92151
921511308
ref: 92151
BOLT,FLANGED,M8X23
€ 6.00
92151A
921511365
ref: 92151A
BOLT,SOCKET,5X12
€ 1.50
92170
921701577
ref: 92170
CLAMP
€ 3.00
92171
921711150
ref: 92171
CLAMP
€ 6.50
