IGNITION SWITCH/LOCKS/REFLECTORS
ZR750H4 2004 CANADA

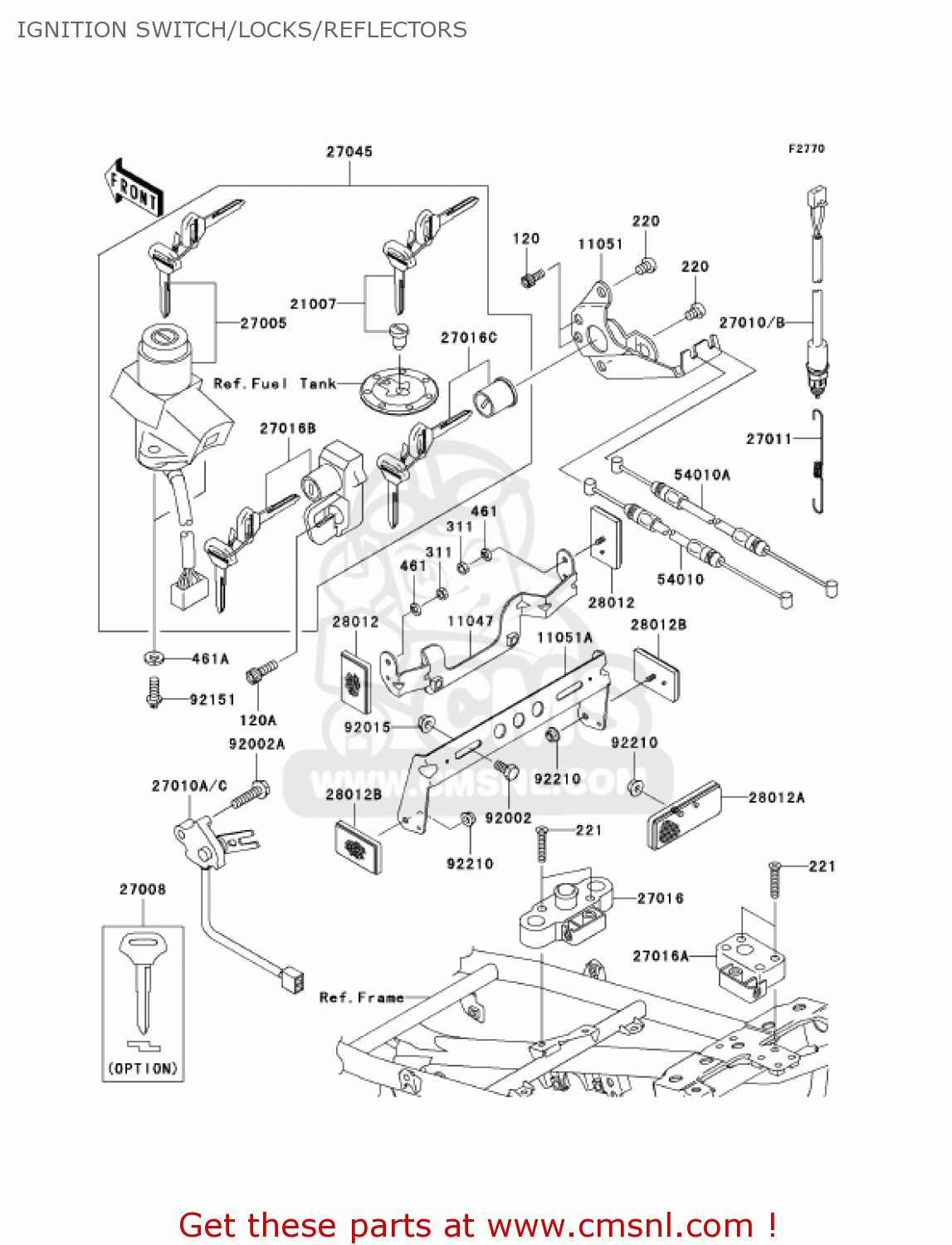

Ignition switch/locks/reflectors diagram ZR750H4 2004 CANADA
IGNITION SWITCH/LOCKS/REFLECTORS ZR750H4 2004 CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
120A
120S0618
ref: 120A
BOLT-SOCKET
€ 1.00
220
220F0608
ref: 220
SCREW-PAN-CROSS
€ 1.00
221
221F0630
ref: 221
SCREW-CSK-CROSS
€ 1.00
311
311C0500
ref: 311
NUT-HEX
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
461A
461L0600
ref: 461A
WASHER-SPRING
€ 0.50
11047
110471280
ref: 11047
BRACKET,REFLECTOR
€ 26.50
11051
110511268
ref: 11051
BRACKET,SEAT LOCK
€ 8.00
11051A
110511276
ref: 11051A
REFLECTOR BRACKET,SIDE
€ 14.00
21007
210075042
ref: 21007
ROTOR,LOCK,TANK CAP
€ 65.50
27005
270055122
ref: 27005
SWITCH-ASSY-IGNITION
€ 100.00
27008
270081189
ref: 27008
(OPTION)
KEY-LOCK,BLANK
€ 12.50
27010B
270101452
ref: 27010B
SWITCH,BRAKE LAMP
€ 20.00
27010C
270101469
ref: 27010C
SWITCH,SIDE STAND
€ 49.50
27011
27011021
ref: 27011
SPRING,BRAKE LAMP SW
€ 15.50
27016
270161098
ref: 27016
LOCK-ASSY,SEAT STRIKE
€ 72.50
27016A
270161113
ref: 27016A
LOCK-ASSY,SEAT STRIKE
€ 58.00
27016B
270165249
ref: 27016B
LOCK-ASSY,HELMET
€ 56.50
27016C
270165257
ref: 27016C
LOCK-ASSY,SEAT
€ 58.00
27045
270455147
ref: 27045
SWITCH-ASSY
€ 202.00
28012
280121003
ref: 28012
REFLECTOR,REFLEX
€ 15.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
€ 16.00
28012B
280121088
ref: 28012B
REFLECTOR-REFLEX
€ 15.00
54010
540101115
ref: 54010
CABLE,SEAT LOCK,FR
€ 10.50
54010A
540101116
ref: 54010A
CABLE,SEAT LOCK,TANDE
€ 10.50
92002
920021132
ref: 92002
BOLT,6X12
€ 2.50
92002A
920021582
ref: 92002A
BOLT,6X25
€ 3.00
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92151
921511911
ref: 92151
BOLT,TORX,6X16
€ 1.50
92210
922100007
ref: 92210
NUT,FLANGED,5MM
€ 2.00
