STARTER MOTOR
ZR750F2 ZR7 2000 USA CALIFORNIA

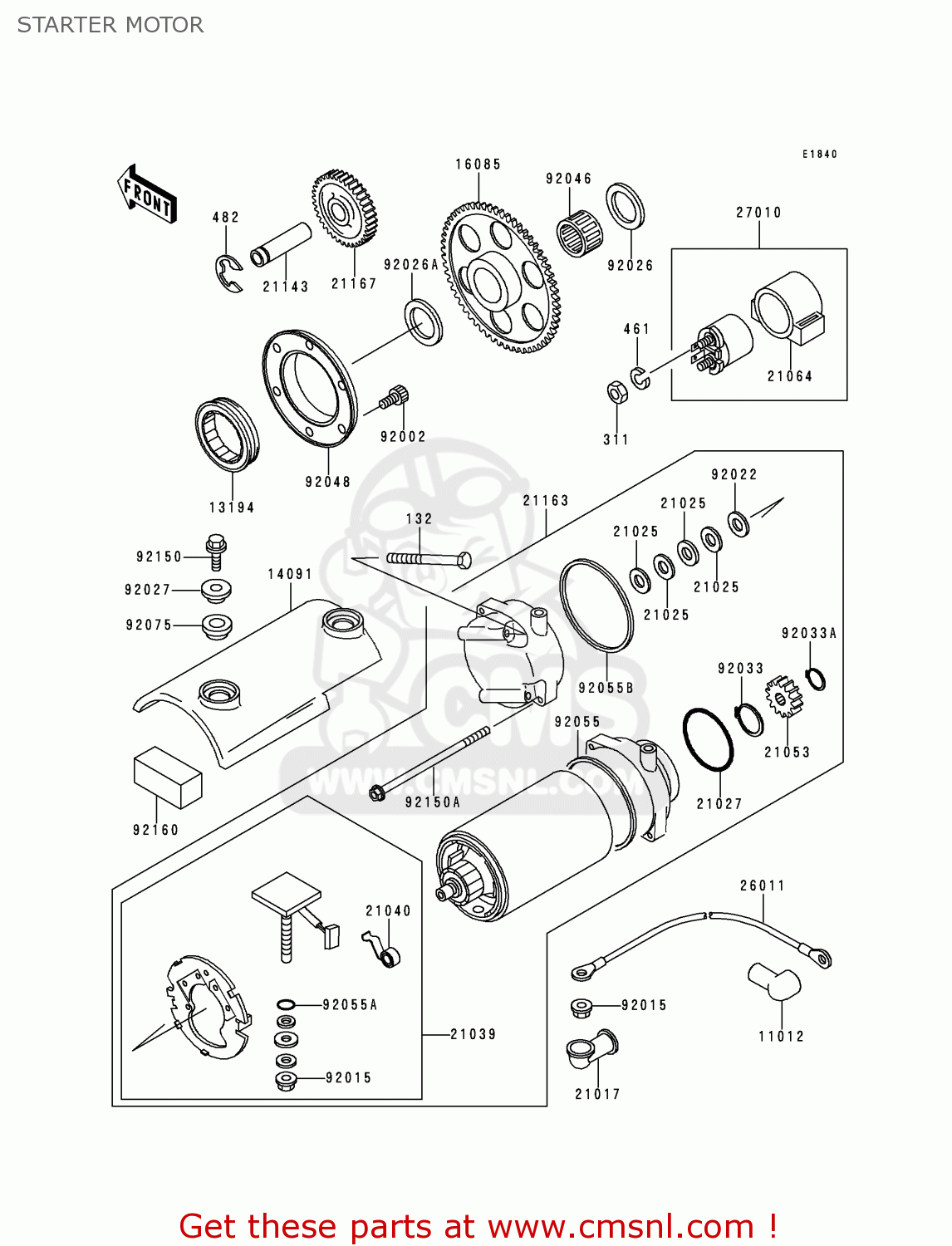

Starter motor diagram ZR750F2 ZR7 2000 USA CALIFORNIA
STARTER MOTOR ZR750F2 ZR7 2000 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
132
132G0660
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13194
131941086
ref: 13194
CLUTCH-ONEWAY
€ 81.00
14091
140911104
ref: 14091
COVER,STERTERMOTOR
€ 46.50
16085
160851300
ref: 16085
GEAR,STARTER,58T
€ 95.50
21017
21017017
ref: 21017
GROMMET-CORD
€ 6.50
21025
21025011
ref: 21025
WASHER, THRUST, 0.2T
€ 4.00
21027
21027008
ref: 21027
O RING, 40M/M
€ 8.50
21039
210391062
ref: 21039
BRUSH,CARBON
€ 81.00
21040
210401057
ref: 21040
SPRING-BRUSH
€ 5.50
21053
21053004
ref: 21053
PINION, STARTER
€ 69.00
21064
21064002
ref: 21064
DAMPER,MAGNETIC SWITC
€ 13.50
21143
21143003
ref: 21143
SHAFT,IDLE GEAR
€ 10.00
21163
211631222
ref: 21163
STARTER-ELECTRIC
€ 633.50
21167
21167004
ref: 21167
GEAR-SPUR,IDLE,29T
€ 69.50
26011
260111135
ref: 26011
WIRE-LEAD,STARTER MOT
€ 51.50
27010
270101410
ref: 27010
SWITCH,MAGNETIC
€ 106.50
92002
920021796
ref: 92002
BOLT,SOCKET,6X12
€ 3.00
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
920221132
ref: 92022
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92026A
920261533
ref: 92026A
SPACER,25.3X36X2.0
€ 9.00
92027
920271848
ref: 92027
COLLAR,L=7.4
€ 2.50
92033
92033034
ref: 92033
CIRCLIP
€ 7.00
92033A
92033037
ref: 92033A
RING-SNAP,13MM
€ 6.50
92046
92046056
ref: 92046
BEARING-NEEDLE,K25301
€ 24.00
92048
920481068
ref: 92048
RACE,ONEWAY CLUTCH
€ 58.50
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92055A
920551370
ref: 92055A
RING-O,4.5X2.0
€ 3.00
92055B
920551381
ref: 92055B
RING-O,STARTER MOTOR
€ 6.50
92075
920751244
ref: 92075
DAMPER
€ 3.00
92150
921501506
ref: 92150
BOLT
€ 3.00
92150A
921501729
ref: 92150A
BOLT,FLANGED,6X120
€ 5.50
92160
921601272
ref: 92160
DAMPER
€ 3.50
