REAR WHEEL/CHAIN

ZR750F2 ZR7 2000 USA CALIFORNIA

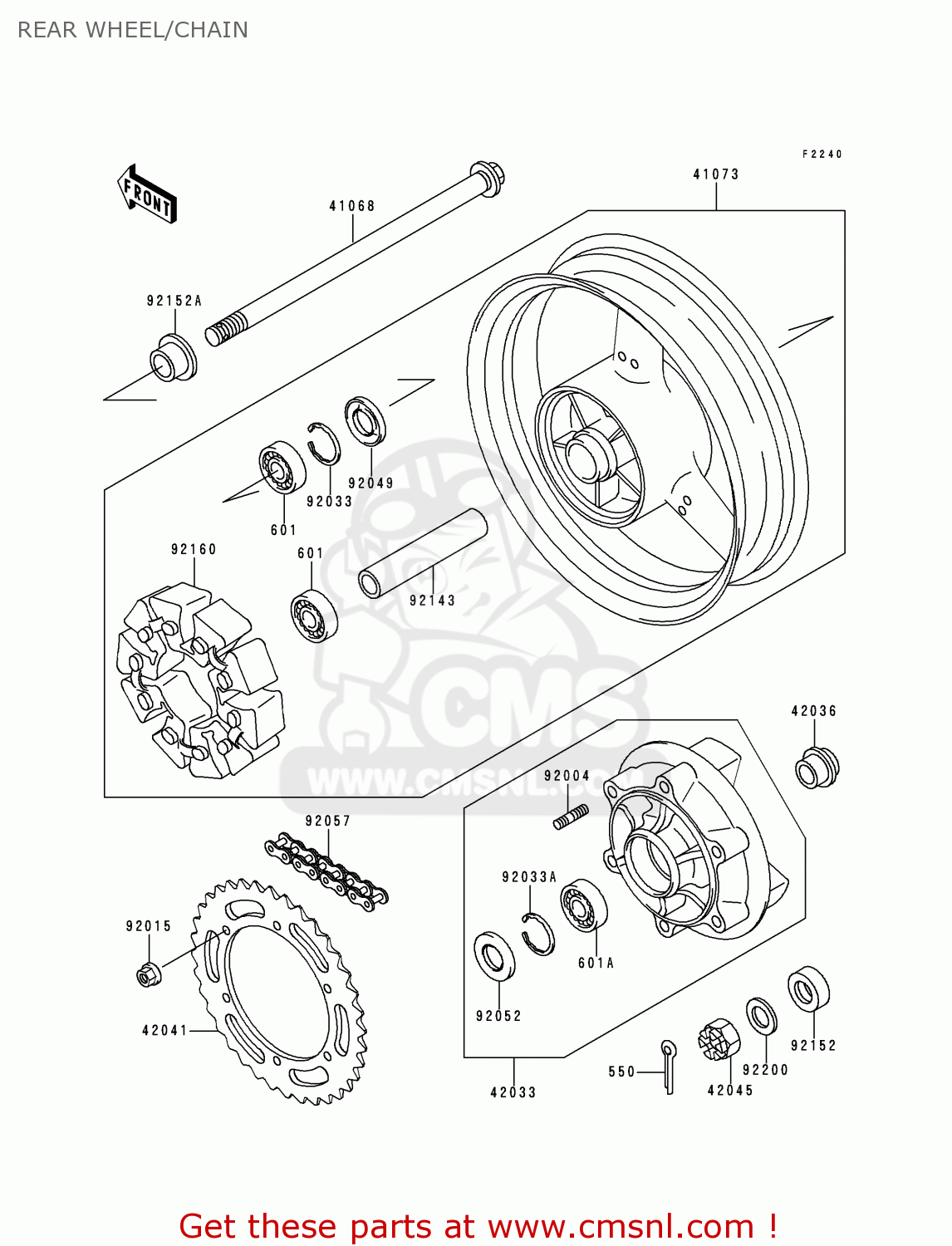

Rear wheel/chain diagram ZR750F2 ZR7 2000 USA CALIFORNIA

REAR WHEEL/CHAIN ZR750F2 ZR7 2000 USA CALIFORNIA
REAR WHEEL/CHAIN ZR750F2 ZR7 2000 USA CALIFORNIA
REAR WHEEL/CHAIN ZR750F2 ZR7 2000 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6204UU
ref: 601
BEARING-BALL,6204UUC3
601B6204UU
€ 28.00
601A
601B6205G
ref: 601A
BEARING BALL
601B6205G
€ 14.00
41068
410681414
ref: 41068
AXLE,RR
410681414
€ 65.00
41073
410731589DH
ref: 41073
WHEEL-ASSY,RR,C.GRAY
€ 833.50
42033
420331171
ref: 42033
COUPLING-ASSY,RR HUB
€ 288.00
42036
420361251
ref: 42036
SLEEVE,RR HUB,L=23
420361251
€ 18.00
42041
420411520
ref: 42041
SPROCKET-HUB,38T
€ 45.00
42045
42045018
ref: 42045
NUT,18MM
42045018
€ 7.50
92004
920041151
ref: 92004
STUD,10X19.5
920041151
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92033A
920331043
ref: 92033A
RING,SNAP,56.2M/M
920331043
€ 6.00
92049
920491056
ref: 92049
OIL SEAL,BJN28475
920491056
€ 8.50
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571398
ref: 92057
CHAIN,DRIVE,EK525MV-X
920571398
€ 82.00
92143
921431303
ref: 92143
COLLAR,RR HUB,L=133
921431303
€ 27.50
92152
921521161
ref: 92152
COLLAR,RR AXLE,LH,L=1
€ 12.50
92152A
921521162
ref: 92152A
COLLAR,RR AXLE,RH,L=2
921521162
€ 16.50
92160
921601524
ref: 92160
DAMPER,SHOCK,RR HUB
921601524
€ 52.00
92200
922001489
ref: 92200
WASHER
922001489
€ 1.50
