MUFFLER(S)

ZR750F1 ZR7 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST

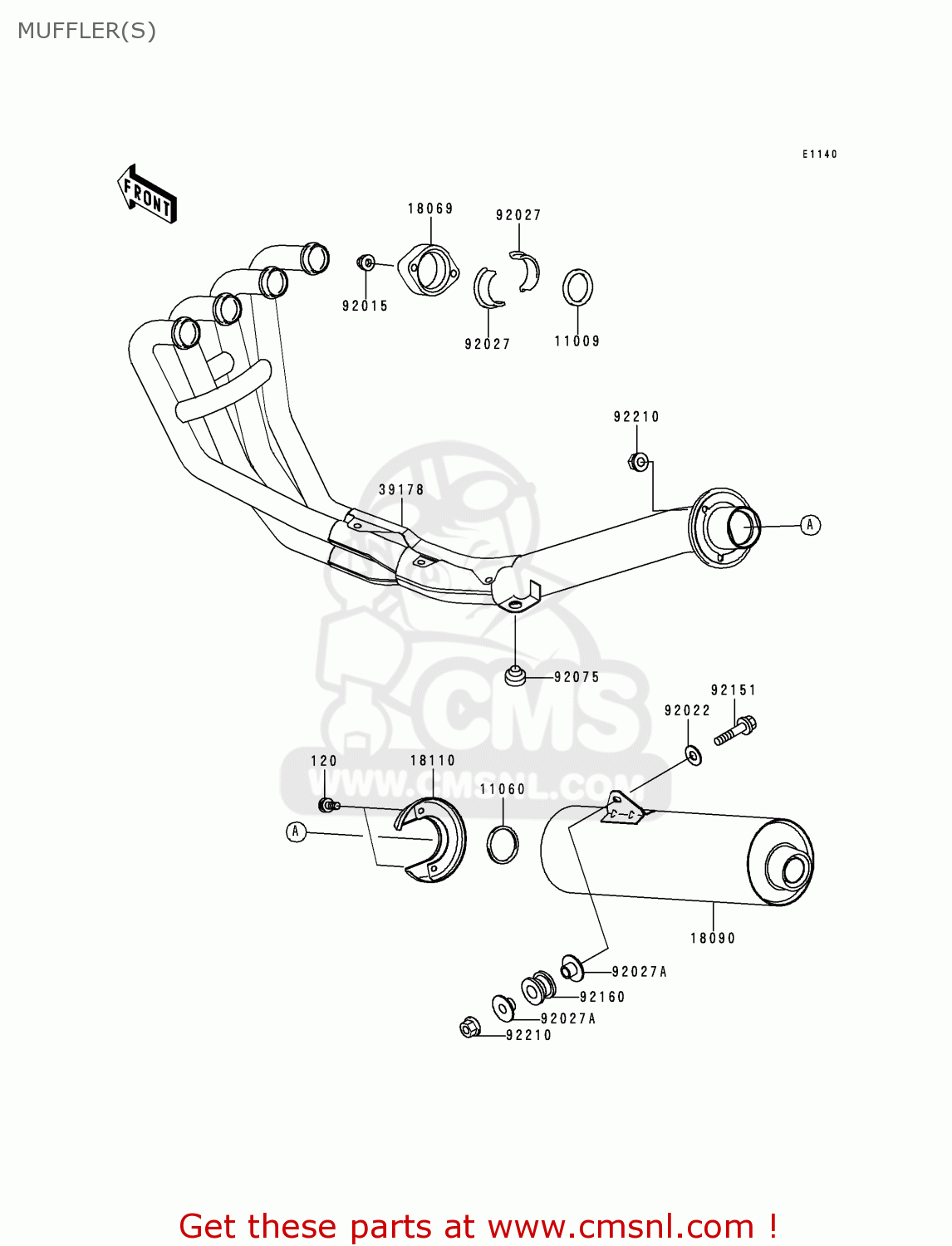

Muffler(s) diagram ZR750F1 ZR7 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

120

120R0610
ref: 120

BOLT-SOCKET

€ 1.50

11009

110091866
ref: 11009

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

11060

110601213
ref: 11060

GASKET,MUFFLER CONNEC (NAS)

€ 14.00

18069

180691153
ref: 18069

HOLDER-EXHAUST PIPE

€ 18.00

18090

180901685
ref: 18090

BODY-COMP-MUFFLER

€ 636.50

18110

181101135
ref: 18110

BODY END-MUFFLER

€ 46.00

39178

391781302
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 1,249.00

92015

920151371
ref: 92015

NUT,CAP,8MM

€ 3.00

92022

920223730
ref: 92022

WASHER,8.5X19X1.2

€ 2.50

92027

920271142
ref: 92027

COLLAR,L=14.5

€ 3.00

92027A

920271653
ref: 92027A

COLLAR,FLNG,8.8X10.6

€ 7.00

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

92151

921511520
ref: 92151

BOLT,8X35

€ 3.00

92160

921601116
ref: 92160

DAMPER

€ 3.50

92210

922101114
ref: 92210

NUT,8MM

€ 1.50

MUFFLER(S)

all assemblies
