CYLINDER/PISTON(S)

ZR750F1 ZR7 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST

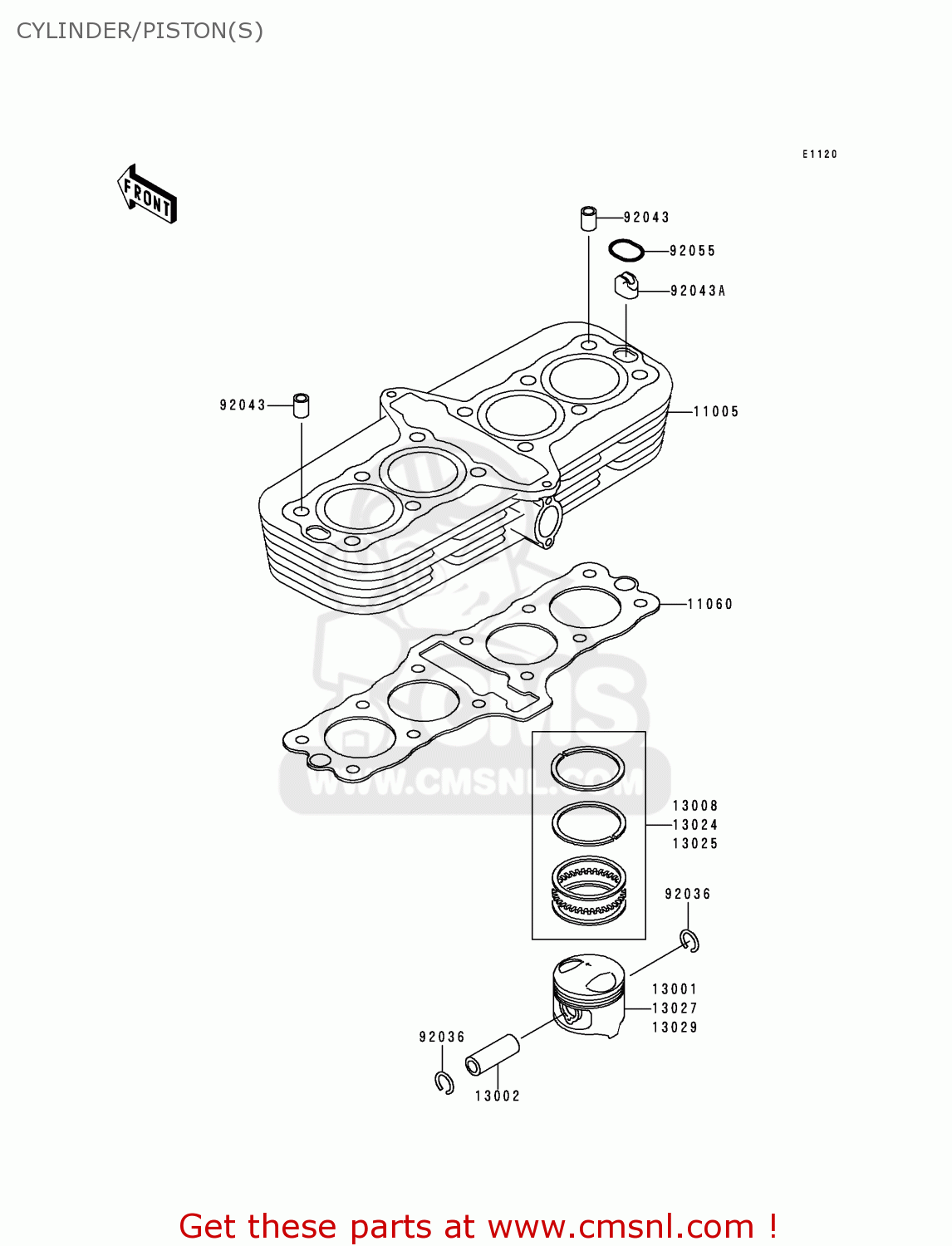

Cylinder/piston(s) diagram ZR750F1 ZR7 1999 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11005

110051899
ref: 11005

CYLINDER-ENGINE

€ 1,518.50

11060

110601898
ref: 11060

GASKET,CYLINDER BASE (NAS)

€ 21.50

13001

130011572
ref: 13001

PISTON-ENGINE,STD

€ 80.50

13002

130021001
ref: 13002

PIN-PISTON

€ 4.00

13008

130081195
ref: 13008

RING-SET-PISTON,STD

€ 57.00

13024

130241124
ref: 13024

RING-SET-PISTON LL,O/

€ 57.50

13025

130251153
ref: 13025

RING-SET-PISTON L,O/S

€ 57.00

13027

130271206
ref: 13027

PISTON-ENGINE LL,O/S

€ 78.00

13029

130291272
ref: 13029

PISTON-ENGINE L,O/S 0

€ 84.50

92036

92036005
ref: 92036

CIRCLIP-PISTON PIN

€ 2.50

92043

920431266
ref: 92043

PIN,11X14X12.3

€ 1.00

92043A

920431546
ref: 92043A

PIN,OIL LINE

€ 4.50

92055

920551147
ref: 92055

RING-O,CYLINDER OIL L

€ 6.00
