Genuine ZR Kawasaki Parts delivered quickly!


REAR MASTER CYLINDER

ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST

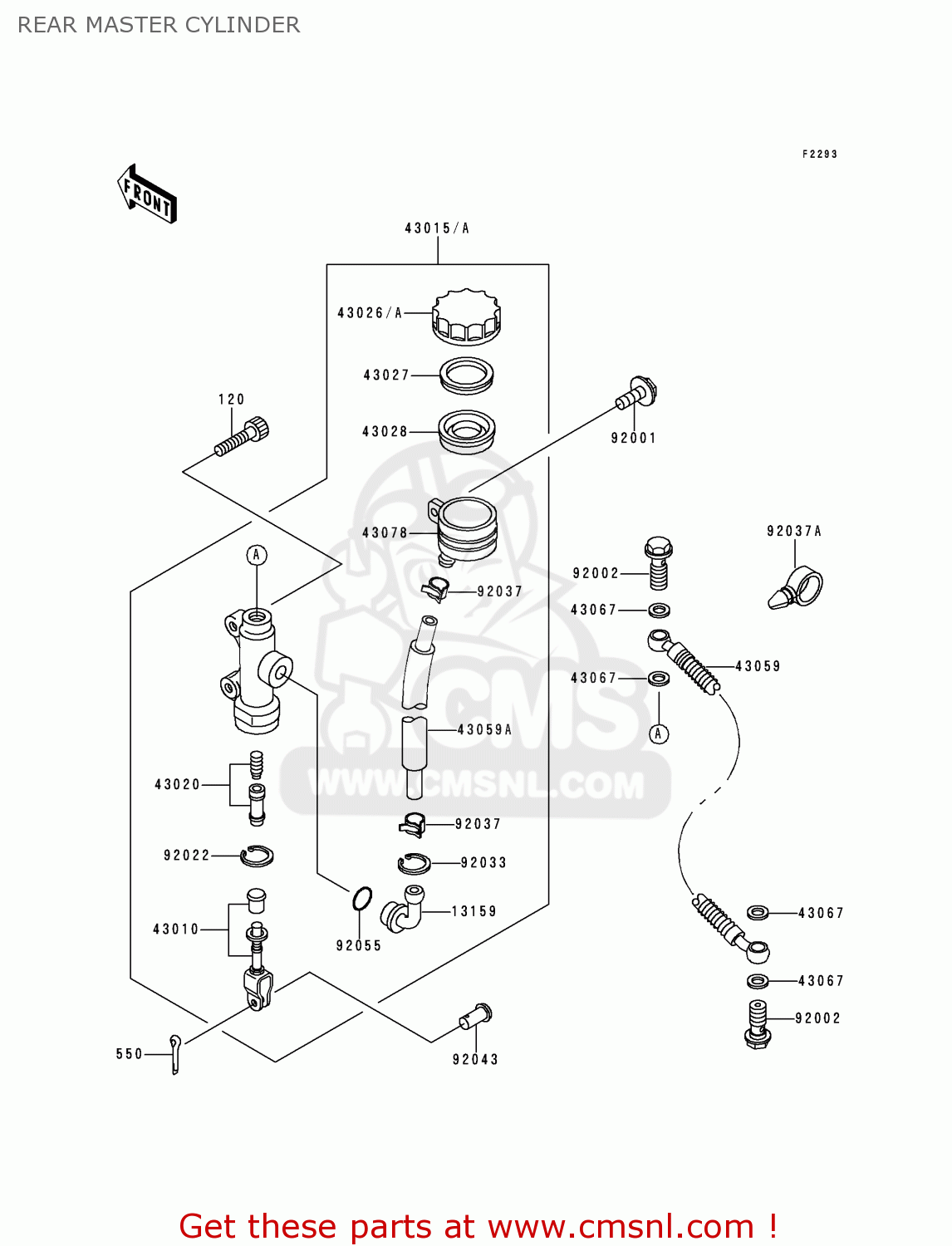

Rear master cylinder diagram ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST

REAR MASTER CYLINDER ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST
REAR MASTER CYLINDER ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST
REAR MASTER CYLINDER ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST
prices are in EUR
ref
part #
description
quantity
120
120S0835
ref: 120
BOLT-SOCKET,8X35,BLAC
120S0835
€ 3.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43015A
430151502
ref: 43015A
CYLINDER-ASSY-MASTER,
€ 353.00
43020
430201067
ref: 43020
PISTON-COMP-BRAKE,RR
430201067
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591668
ref: 43059
HOSE-BRAKE,RR
€ 82.00
43059A
430591669
ref: 43059A
HOSE-BRAKE,RR MASTER
430591669
€ 32.00
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781058
ref: 43078
RESERVOIR,RR MASTER C
430781058
€ 20.00
92001
920011860
ref: 92001
BOLT,W/P,6X16
920011860
€ 2.50
92002
920021888
ref: 92002
BOLT,OIL,L=23
920021888
€ 3.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92037A
920371827
ref: 92037A
CLAMP,HOSE
920371827
€ 5.00
92043
920431303
ref: 92043
PIN,8MM
920431303
€ 2.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
