MUFFLER

ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST

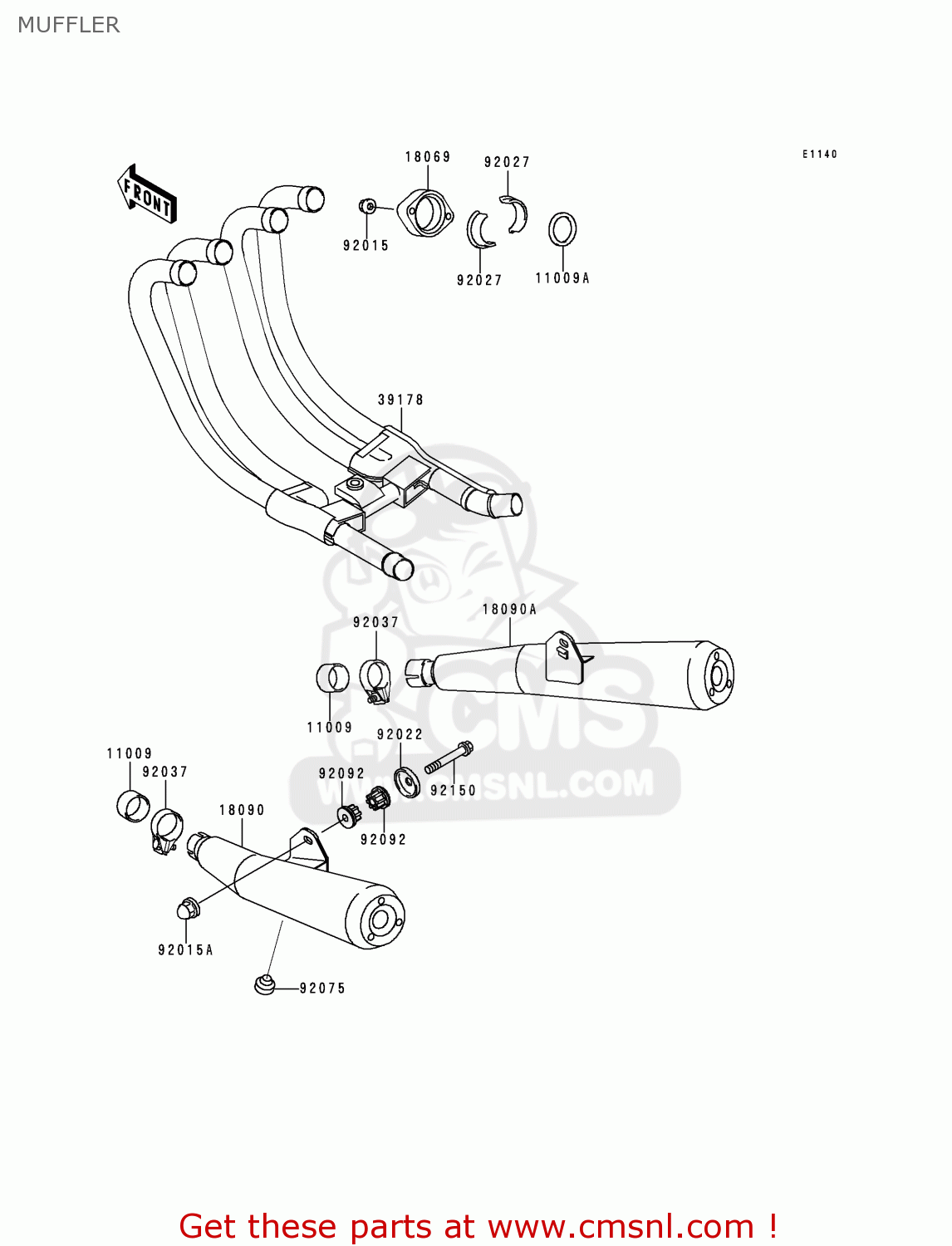

Muffler diagram ZR750C3 ZEPHYR 750 1993 EUROPE UK FR AR FG GR IT NR SP ST

prices are in EUR

ref

part #

description

quantity

11009

110091667
ref: 11009

GASKET,EXHAUST PIPE C (NAS)

€ 15.00

11009A

110091866
ref: 11009A

GASKET,EXHAUST PIPE H (NAS)

€ 7.50

18069

180691030
ref: 18069

HOLDER-EXHAUST PIPE

€ 18.00

18090

180901141
ref: 18090

BODY-COMP-MUFFLER,LH

€ 395.00

18090A

180901143
ref: 18090A

BODY-COMP-MUFFLER,RH

€ 395.00

39178

391781191
ref: 39178

MANIFOLD-COMP-EXHAUST

€ 669.00

92015

920151371
ref: 92015

NUT,CAP,8MM

€ 3.00

92015A

920151649
ref: 92015A

NUT,10MM

€ 3.50

92022

92022289
ref: 92022

WASHER,PLAIN

€ 11.50

92027

920271142
ref: 92027

COLLAR,L=14.5

€ 3.00

92037

920371349
ref: 92037

CLAMP,42MM

€ 8.50

92075

92075015
ref: 92075

DAMPER RUBB-MAIN STND

€ 3.00

92092

920921013
ref: 92092

BUSHING-RUBBER,MUFFLE

€ 11.50

92150

921501792
ref: 92150

BOLT,10X55

€ 5.50

MUFFLER

all assemblies
