FRAME FITTING

ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

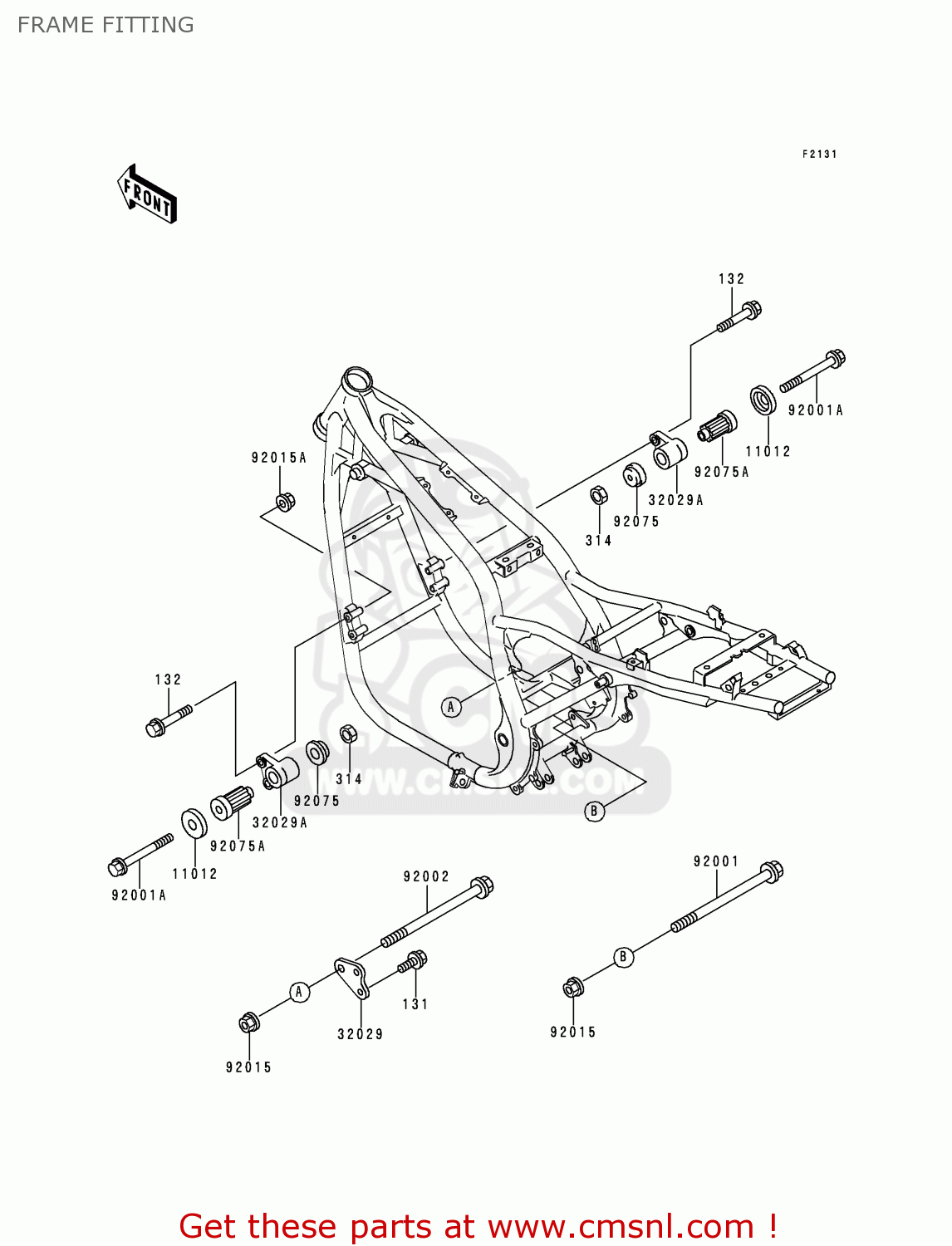

Frame fitting diagram ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

131

131J0820
ref: 131

BOLT-FLANGED,8X20

€ 0.50

132

132J0860
ref: 132

BOLT-FLANGED-SMALL,8X

€ 3.50

314

314B1000
ref: 314

NUT,10MM

€ 0.50

11012

110121228
ref: 11012

CAP,ENGINE BRACKET

€ 4.50

32029

320291745
ref: 32029

BRACKET-ENGINE,RR,UPP

€ 6.00

32029A

320291754EZ
ref: 32029A

BRACKET-ENGINE,FR,C.G

€ 10.50

92001

920011621
ref: 92001

BOLT,FLANGED,10X180

€ 15.00

92001A

920011780
ref: 92001A

BOLT,FLANGED,10X115,B

€ 10.00

92002

920021548
ref: 92002

BOLT,FLANGED,10X190

€ 11.00

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151183
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.00

92075

920751274
ref: 92075

DAMPER,ENG MOUNT,SIDE

€ 11.00

92075A

920751377
ref: 92075A

DAMPER,ENGINE BRACKET

€ 19.50
