Genuine ZR Kawasaki Parts delivered quickly!


CYLINDER HEAD

ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

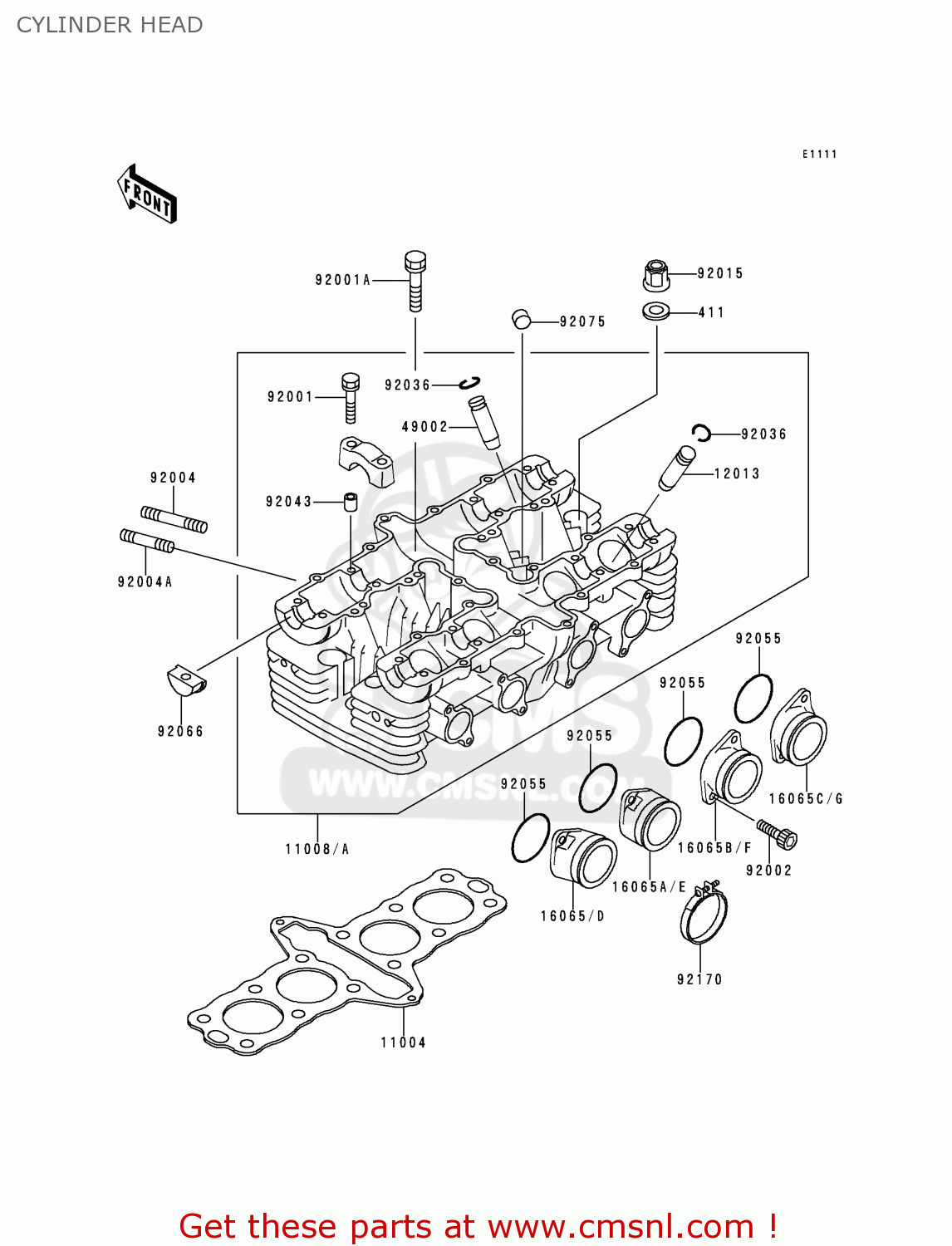

Cylinder head diagram ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST

CYLINDER HEAD ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CYLINDER HEAD ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
CYLINDER HEAD ZR750C2 ZEPHYR 750 1992 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11004
110041101
ref: 11004
GASKET-HEAD,CYLINDER (NAS)
110041101
€ 67.50
11008
110081245
ref: 11008
ARST
HEAD-COMP-CYLINDER
€ 2,357.00
11008A
110081246
ref: 11008A
EUFGFRGRITNRSDSPUK
HEAD-COMP-CYLINDER
€ 1,777.00
12013
12013009
ref: 12013
GUIDE-VALVE,INTAKE
12013009
€ 18.00
16065
160651226
ref: 16065
AREUFGFRGRITNRSDSPST
HOLDER-CARBURETOR,#1
160651226
€ 22.50
16065A
160651227
ref: 16065A
AREUFGFRGRITNRSDSPST
HOLDER-CARBURETOR,#2
160651227
€ 22.50
16065B
160651228
ref: 16065B
AREUFGFRGRITNRSDSPST
HOLDER-CARBURETOR,#3
160651228
€ 22.50
16065C
160651229
ref: 16065C
AREUFGFRGRITNRSDSPST
HOLDER-CARBURETOR,#4
160651229
€ 22.50
16065D
160651256
ref: 16065D
UK
HOLDER-CARBURETOR,#1
160651256
€ 27.50
16065E
160651257
ref: 16065E
UK
HOLDER-CARBURETOR,#2
160651257
€ 27.50
16065F
160651258
ref: 16065F
UK
HOLDER-CARBURETOR,#3
160651258
€ 27.50
16065G
160651259
ref: 16065G
UK
HOLDER-CARBURETOR,#4
160651259
€ 27.50
49002
490021002
ref: 49002
GUIDE,EXHAUST VALVE
490021002
€ 16.00
92001
920011105
ref: 92001
BOLT,HEX HEAD,6X38
920011105
€ 3.00
92001A
920011445
ref: 92001A
BOLT,FLANGED,8X43
920011445
€ 6.00
92002
920021592
ref: 92002
BOLT,6X12
920021592
€ 2.50
92004
920041208
ref: 92004
STUD
920041208
€ 4.50
92004A
920041209
ref: 92004A
STUD
920041209
€ 4.50
92015
92015076
ref: 92015
NUT,FLANGED CAP,10MM
92015076
€ 9.00
92036
92036023
ref: 92036
CIRCLIP,VALVE GUIDE
92036023
€ 0.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551256
ref: 92055
UK
RING-O,32MM
920551256
€ 9.00
92066
920661111
ref: 92066
PLUG,CAMSHAFT,11.35X1
920661111
€ 8.00
92075
92075182
ref: 92075
DAMPER
92075182
€ 2.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
411B1000
€ 0.50
92170
921701438
ref: 92170
CLAMP
921701438
€ 5.50
