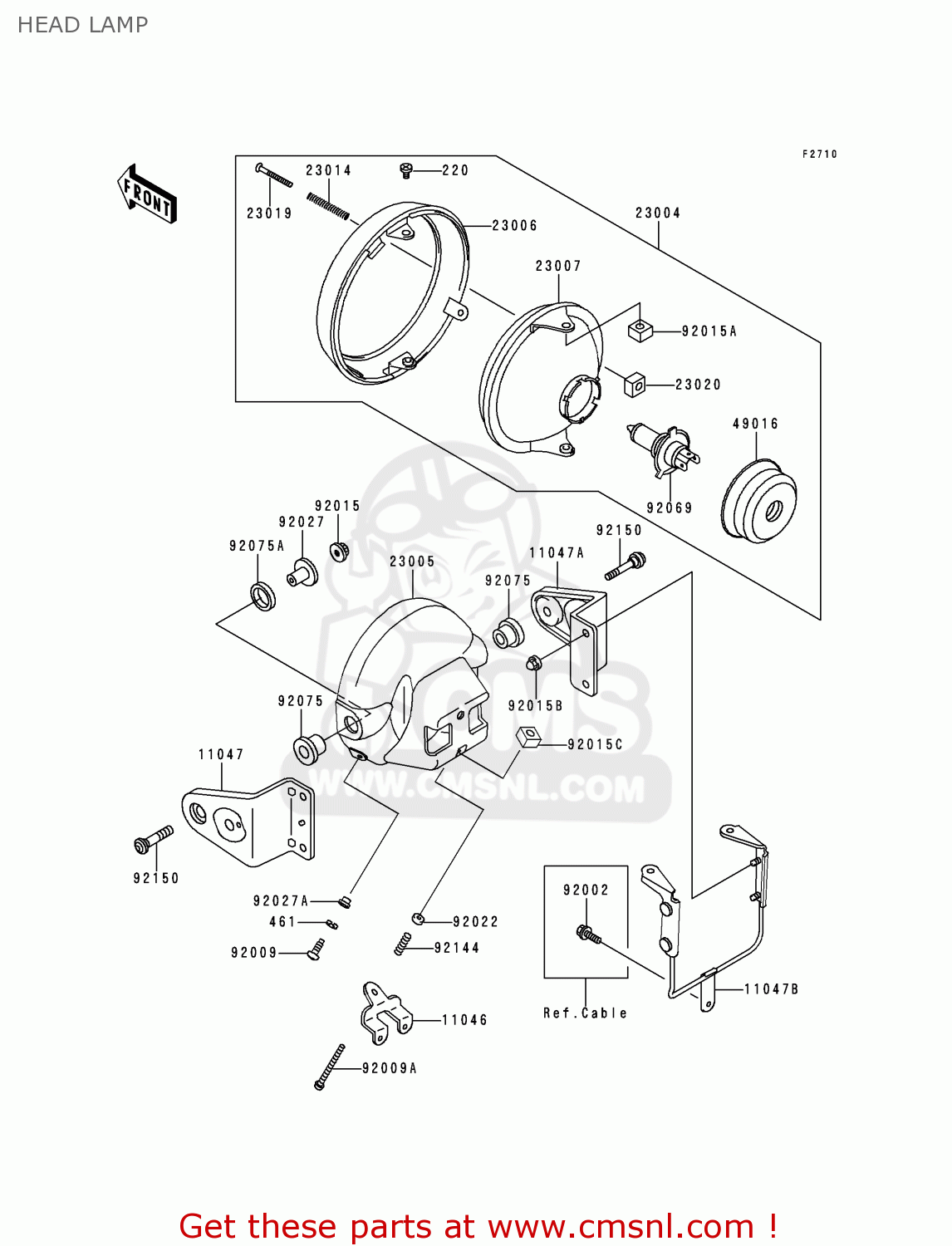

HEAD LAMP

ref

part #

description

quantity

220

220D0510
ref: 220

SCREW-PAN-CROS

€ 0.50

461

461K0500
ref: 461

WASHER-SPRING,5MM,BLA

€ 0.50

11046

110461796
ref: 11046

BRACKET,HEAD LAMP BOD

€ 9.00

11047

110471128
ref: 11047

BRACKET,HEAD LAMP,LH

€ 39.50

11047A

110471129
ref: 11047A

BRACKET,HEAD LAMP,RH

€ 39.50

11047B

110471130
ref: 11047B

BRACKET,HEAD LAMP

€ 43.00

23004

230041275
ref: 23004

HEADLAMP

€ 270.00

23005

23005110221
ref: 23005

BODY-COMP-HEAD LAMP,F

€ 78.50

23006

230061020
ref: 23006

RIM-LAMP,CR PLATED

€ 34.50

23007

230071224
ref: 23007

LENS-COMP,HEAD LAMP

€ 115.00

23014

23014005
ref: 23014

SPRING-FOCUS ADJUST

€ 2.50

23019

23019021
ref: 23019

SCREW-FORCUS ADJUST

€ 3.00

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

49016

490161046
ref: 49016

COVER-SEAL,HEAD LAMP

€ 7.50

92002

920021626
ref: 92002

BOLT

€ 3.00

92009

920091157
ref: 92009

SCREW,5MM,BLACK

€ 2.50

92009A

920091580
ref: 92009A

SCREW,ADJUST

€ 4.00

92015

920151014
ref: 92015

NUT,8MM

€ 0.50

92015A

920151157
ref: 92015A

NUT,5MM

€ 3.50

92015B

920151170
ref: 92015B

NUT,CAP 6MM,BLACK

€ 0.50

92015C

920151799
ref: 92015C

NUT,5MM,FOCUS ADJUST

€ 3.00

92022

920221380
ref: 92022

WASHER,5.2X13X1

€ 2.50

92027

920271131
ref: 92027

COLLAR,HEAD LAMP FITT

€ 6.00

92027A

920271503
ref: 92027A

COLLAR,HEAD LAMP,BLAC

€ 2.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92075

920751109
ref: 92075

DAMPER,HEAD LAMP FITT

€ 4.00

92075A

920751110
ref: 92075A

DAMPER,HEAD LAMP FITT

€ 3.00

92144

921441417
ref: 92144

SPRING

€ 3.00

92150

921501403
ref: 92150

BOLT

€ 8.00
