FRONT FORK

ZR750C2 ZEPHYR 1992 USA CALIFORNIA CANADA

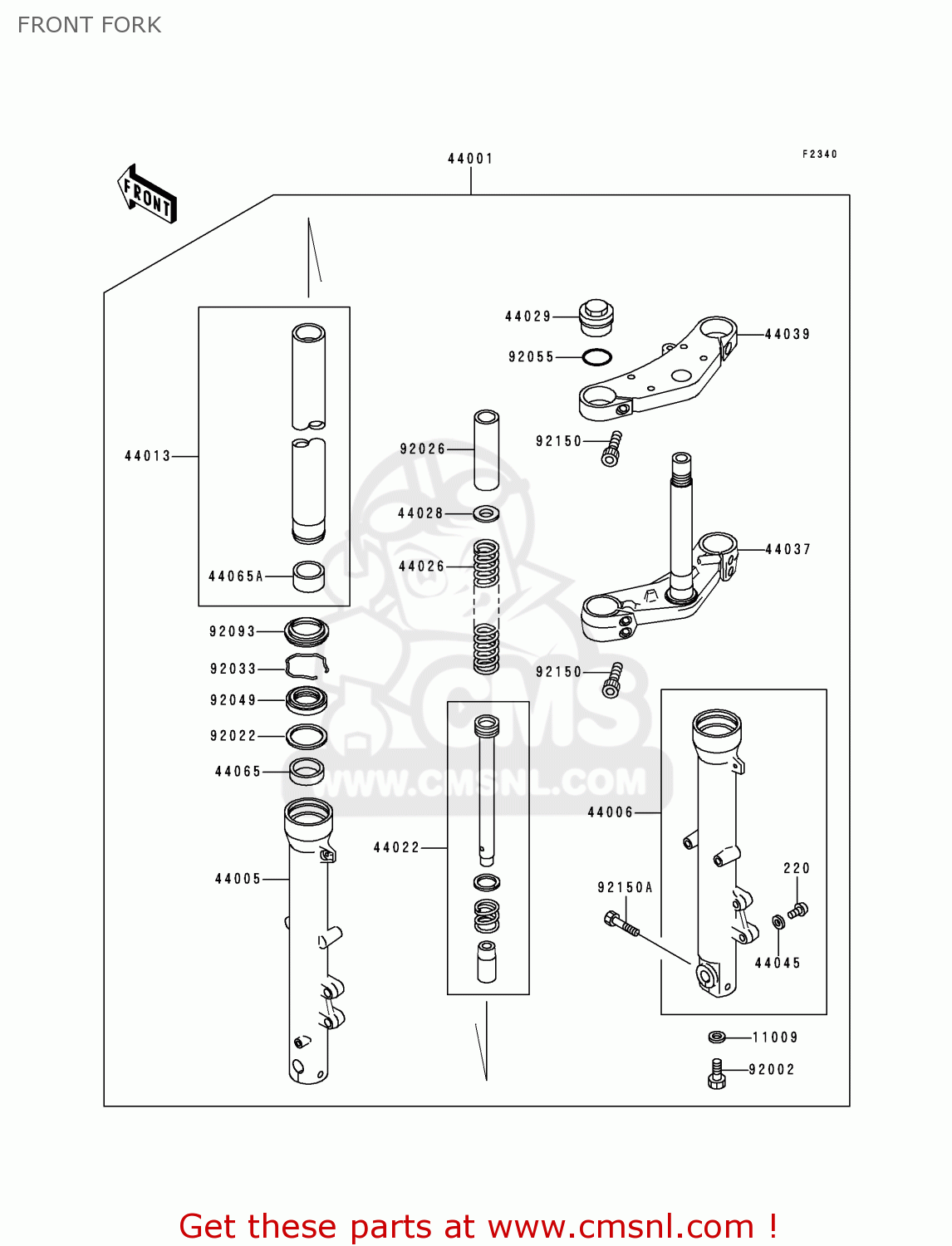

Front fork diagram ZR750C2 ZEPHYR 1992 USA CALIFORNIA CANADA

FRONT FORK ZR750C2 ZEPHYR 1992 USA CALIFORNIA CANADA
FRONT FORK ZR750C2 ZEPHYR 1992 USA CALIFORNIA CANADA
FRONT FORK ZR750C2 ZEPHYR 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
220
220B0408
ref: 220
SCREW-PAN-CROS
220B0408
€ 0.50
11009
110091553
ref: 11009
GASKET,FORK DRAIN PLU (NAS)
110091553
€ 3.00
44001
440011806
ref: 44001
FORK-FRONT
€ 2,198.50
44005
440051312
ref: 44005
PIPE-LEFT FORK OUTER
440051312
€ 332.00
44006
440061309
ref: 44006
PIPE-RIGHT FORK OUTER
440061309
€ 167.00
44013
440131339
ref: 44013
PIPE-FORK INNER
440131339
€ 194.50
44022
440221263
ref: 44022
CYLINDER-FORK
€ 114.00
44026
440261481
ref: 44026
SPRING-FRONT FORK
€ 51.00
44028
440281060
ref: 44028
GUIDE-FORK SPRING
€ 7.50
44029
440291147
ref: 44029
SEAT-FORK SPRING
440291147
€ 31.50
44037
440371278
ref: 44037
HOLDER-FORK UNDER
€ 283.00
44039
440391209
ref: 44039
HOLDER-FORK UPPER
440391209
€ 242.00
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44065
440651085
ref: 44065
BUSHING-FRONT FORK
440651085
€ 21.00
44065A
440651086
ref: 44065A
BUSHING-FRONT FORK,IN
440651086
€ 21.00
92002
920021650
ref: 92002
BOLT,FORK DRAIN
920021650
€ 10.00
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92026
920261404
ref: 92026
SPACER
€ 5.50
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491347
ref: 92049
SEAL-OIL,FORK OUTER T
920491347
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92093
920931290
ref: 92093
SEAL, FORK-OUTER-TUBE
920931290
€ 14.00
92150
921501172
ref: 92150
BOLT,SOCKET,8X25
€ 1.50
92150A
921501468
ref: 92150A
BOLT
921501468
€ 6.00
