OIL COOLER

ZR750C1 ZEPHYR 750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

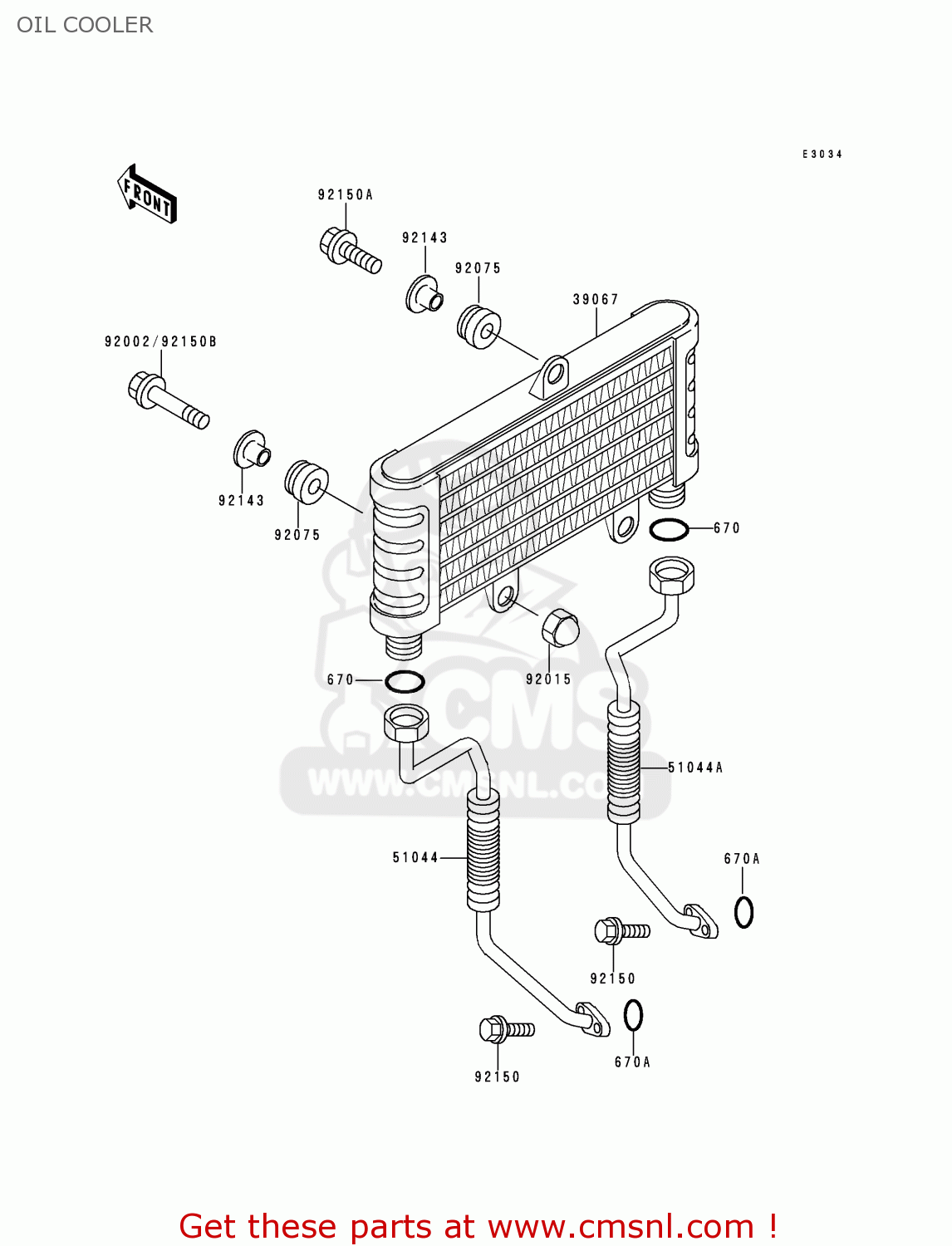

Oil cooler diagram ZR750C1 ZEPHYR 750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

670

670B1508
ref: 670

O RING,8MM

€ 1.00

670A

670B2010
ref: 670A

O RING,10MM

€ 1.00

39067

390671055
ref: 39067

COOLER-OIL

€ 476.00

51044

510441139
ref: 51044

TUBE-ASSY,LH

€ 314.50

51044A

510441140
ref: 51044A

TUBE-ASSY,RH

€ 251.50

92002

920021088
ref: 92002
AR

BOLT,6X45

€ 3.00

92015

920151170
ref: 92015
EUFGFRGRITNRSDSPSTUK

NUT,CAP 6MM,BLACK

€ 0.50

92075

92075277
ref: 92075

DAMPER

€ 1.00

92143

921431677
ref: 92143

COLLAR,L=12.5

€ 6.00

92150

921501732
ref: 92150

BOLT,6X16

€ 3.00

92150A

921501733
ref: 92150A

BOLT,6X25

€ 2.00

92150B

921501734
ref: 92150B
EUFGFRGRITNRSDSPSTUK

BOLT,6X40

€ 1.50

OIL COOLER

all assemblies
