FRONT HUB

ZR750C1 ZEPHYR 750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

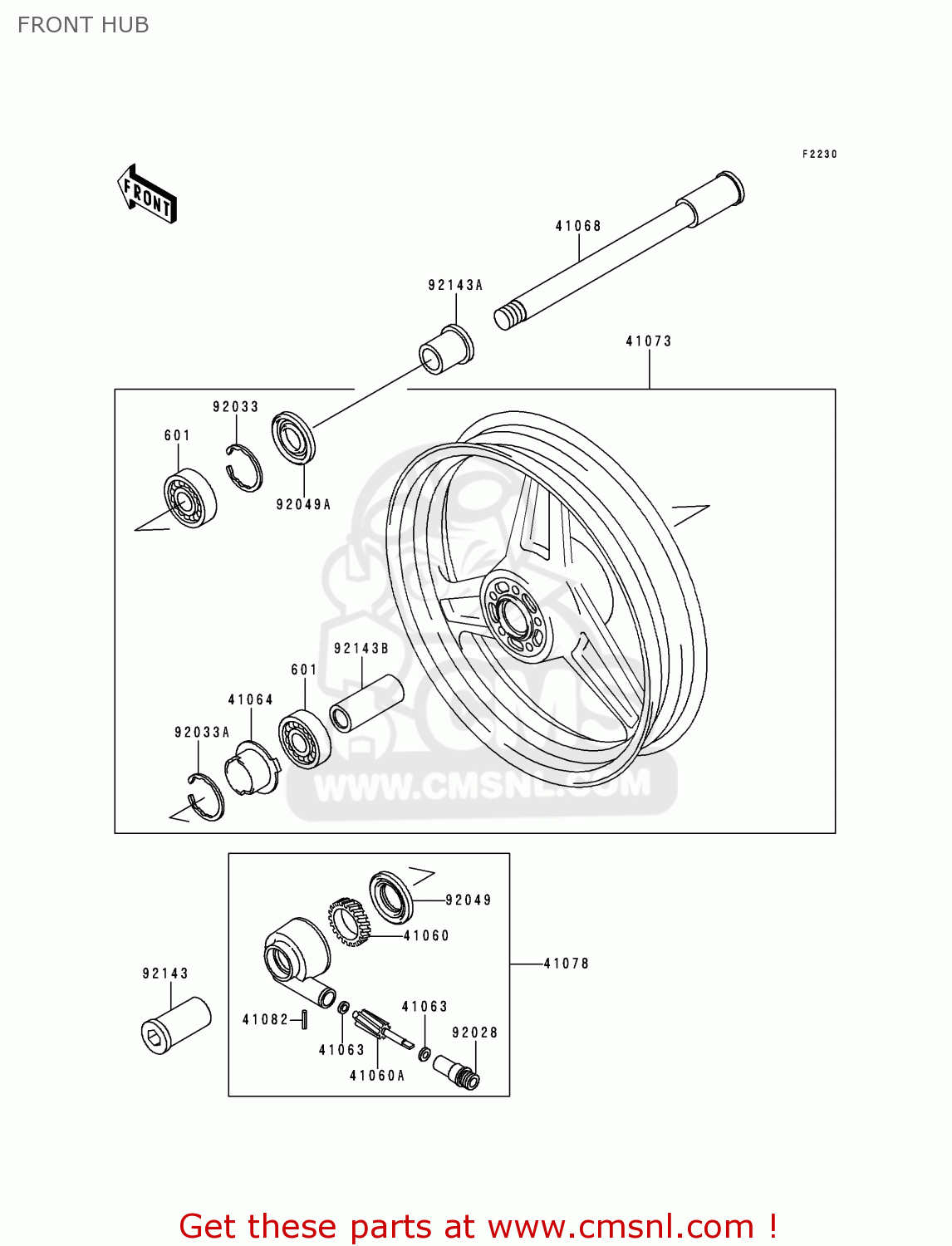

Front hub diagram ZR750C1 ZEPHYR 750 1991 EUROPE UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

601

601B6203UU
ref: 601

BEARING-BALL,#6203UUC

€ 25.00

41060

410601025
ref: 41060

GEAR,SPEEDOMETER

€ 18.50

41060A

410601123
ref: 41060A

GEAR-METER SCREW,9T

€ 19.50

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641006
ref: 41064

RECEIVER,SPEEDOMETER

€ 9.50

41068

410681255
ref: 41068

AXLE,FR

€ 52.50

41073

410731480JF
ref: 41073

WHEEL-ASSY,FR,G.GRAY

€ 807.50

41078

410781069
ref: 41078

CASE-ASSY-METER GEAR

€ 105.50

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92028

920281066
ref: 92028

BUSHING,SPEEDOMET CAB

€ 7.50

92033

920331040
ref: 92033

RING,SNAP,40M/M

€ 4.00

92033A

920331041
ref: 92033A

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491110
ref: 92049A

SEAL-OIL,AG1258A0

€ 6.50

92143

921431206
ref: 92143

COLLAR,FR AXLE NUT,L=

€ 18.50

92143A

921431335
ref: 92143A

COLLAR,FR AXLE,L=19.5

€ 16.00

92143B

921431392
ref: 92143B

COLLAR,FR HUB,L=87.5

€ 8.00
