CHANGE DRUM/SHIFT FORK
ZR550B1 1990 USA CALIFORNIA

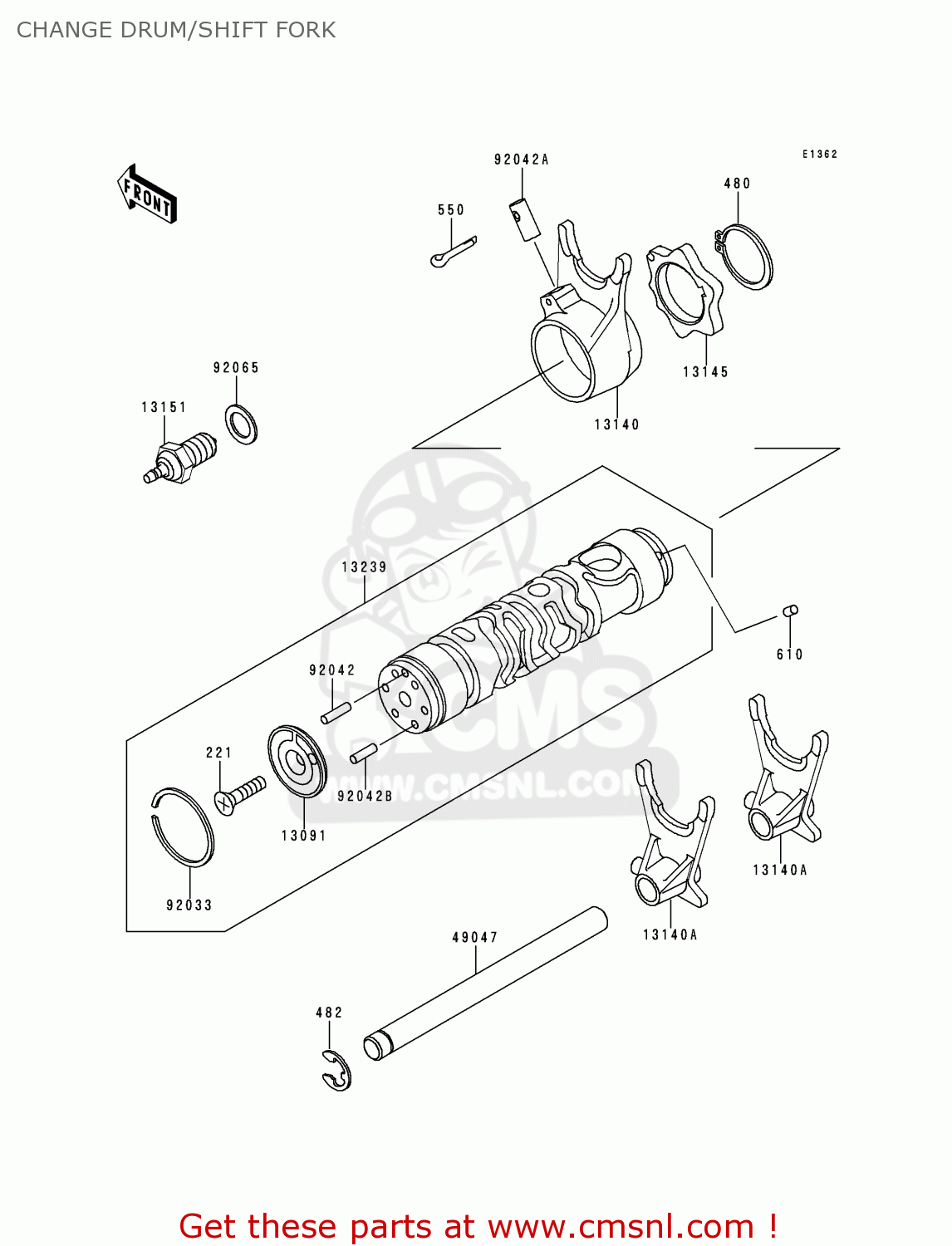

Change drum/shift fork diagram ZR550B1 1990 USA CALIFORNIA
CHANGE DRUM/SHIFT FORK ZR550B1 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
€ 0.50
480
480J3000
ref: 480
CIRCLIP-TYPE-C,30MM
€ 3.50
482
482J0100
ref: 482
CIRCLIP-TYPE-E,10MM
€ 0.50
550
550D3020
ref: 550
PIN-COTTER,3.0X20
€ 2.00
610
610A0406
ref: 610
ROLLER,4X6
€ 2.50
13091
130911104
ref: 13091
HOLDER,CHANGE DRUM PI
€ 16.50
13140
131401016
ref: 13140
FORK-SHIFT,DRIVE
€ 74.50
13140A
131401062
ref: 13140A
FORK-SHIFT,OUTPUT
€ 74.50
13145
131451058
ref: 13145
CAM-CHANGE DRUM
€ 15.00
13151
131511007
ref: 13151
SWITCH,NEUTRAL
€ 9.00
13239
132391119
ref: 13239
DRUM-ASSY-CHANGE
€ 175.50
49047
490471069
ref: 49047
ROD-SHIFT
€ 15.50
92033
92033035
ref: 92033
RING-SNAP,37MM
€ 4.00
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
€ 0.50
92042A
92042021
ref: 92042A
PIN,DOWEL,8X18
€ 7.00
92042B
92042030
ref: 92042B
PIN,GEAR CHNGE DRUM
€ 2.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
