CARBURETOR
ZR550B1 1990 USA CALIFORNIA

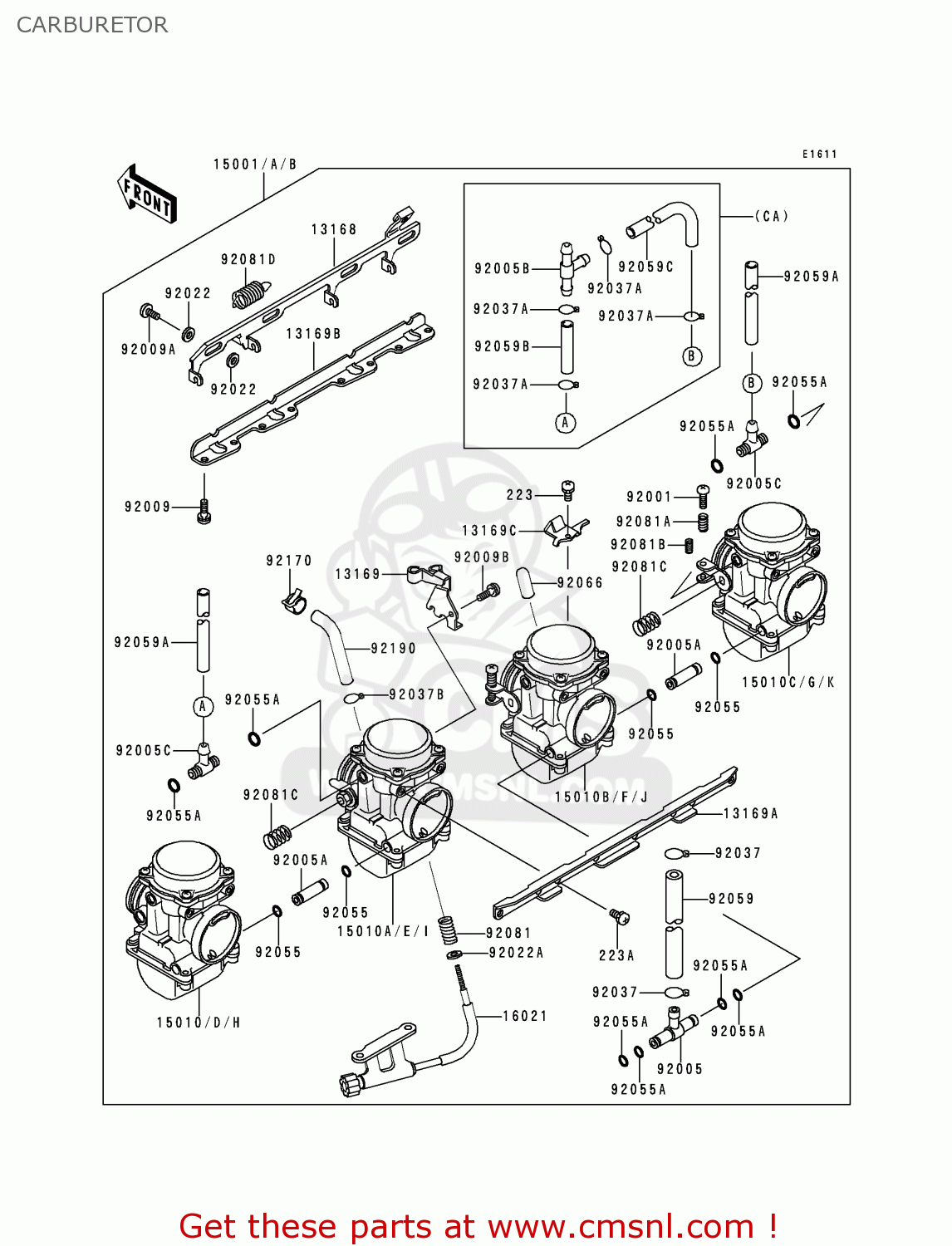

Carburetor diagram ZR550B1 1990 USA CALIFORNIA
CARBURETOR ZR550B1 1990 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
13168
131681280
ref: 13168
LEVER,DL
€ 92.00
13169
131691962
ref: 13169
PLATE,THROTTLE CABLE
€ 48.00
13169A
131691963
ref: 13169A
PLATE,CARBURETOR STAY
€ 85.00
13169B
131691964
ref: 13169B
PLATE,CARBURETOR STAY
€ 85.00
13169C
131691965
ref: 13169C
PLATE,STARTER CABLE
€ 26.50
15001
150011666
ref: 15001
US
CARBURETOR-ASSY
€ 1,536.00
15001A
150011667
ref: 15001A
CA
CARBURETOR ASSEMBLY
€ 936.50
15010
150101141
ref: 15010
US
CARBURETOR,LH,OUTSIDE
€ 492.00
15010A
150101142
ref: 15010A
US
CARBURETOR,LH,INSIDE
€ 492.00
15010B
150101143
ref: 15010B
US
CARBURETOR,RH,INSIDE
€ 492.00
15010C
150101144
ref: 15010C
US
CARBURETOR,RH,OUTSIDE
€ 492.00
15010D
150101145
ref: 15010D
CA
CARBURETOR,OUTSIDE,LH
€ 269.00
15010E
150101146
ref: 15010E
CA
CARBURETOR,INSIDE,LH
€ 269.00
15010F
150101147
ref: 15010F
CA
CARBURETOR,INSIDE,RH
€ 317.50
15010G
150101148
ref: 15010G
CA
CARBURETOR,OUTSIDE,RH
€ 317.50
16021
160211136
ref: 16021
SCREW-THROTTLE STOP
€ 75.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005
920051108
ref: 92005
FITTING,FUEL,T-TYPE
€ 16.50
92005A
920051109
ref: 92005A
FITTING,FUEL,I-TYPE
€ 25.00
92005B
920051119
ref: 92005B
CA
FITTING,T-TYPE
€ 17.50
92005C
920051125
ref: 92005C
FITTING,T-TYPE
€ 18.00
223
223C0420
ref: 223
SCREW-PAN-WS-CROS
€ 3.00
223A
223C0510
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
92009
920091129
ref: 92009
SCREW,6X16
€ 3.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371194
ref: 92037A
CA
CLAMP,TUBE,TAP DIAPRM
€ 4.00
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92059
920591236
ref: 92059
TUBE,FUEL
€ 25.00
92059A
920591376
ref: 92059A
US
TUBE,6.5X9.5X290
€ 20.50
92059B
920591476
ref: 92059B
CA
TUBE,7X11X100
€ 13.00
92059C
920591863
ref: 92059C
CA
TUBE,7X11X220
€ 17.00
92068
92068006
ref: 92068
US
RUBBER PLUG
€ 2.50
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811913
ref: 92081D
SPRING,STARTER LEVER
€ 15.00
92170
921701143
ref: 92170
CLAMP,TUBE
€ 3.00
92190
921901105
ref: 92190
TUBE,5X9X133
€ 12.50
