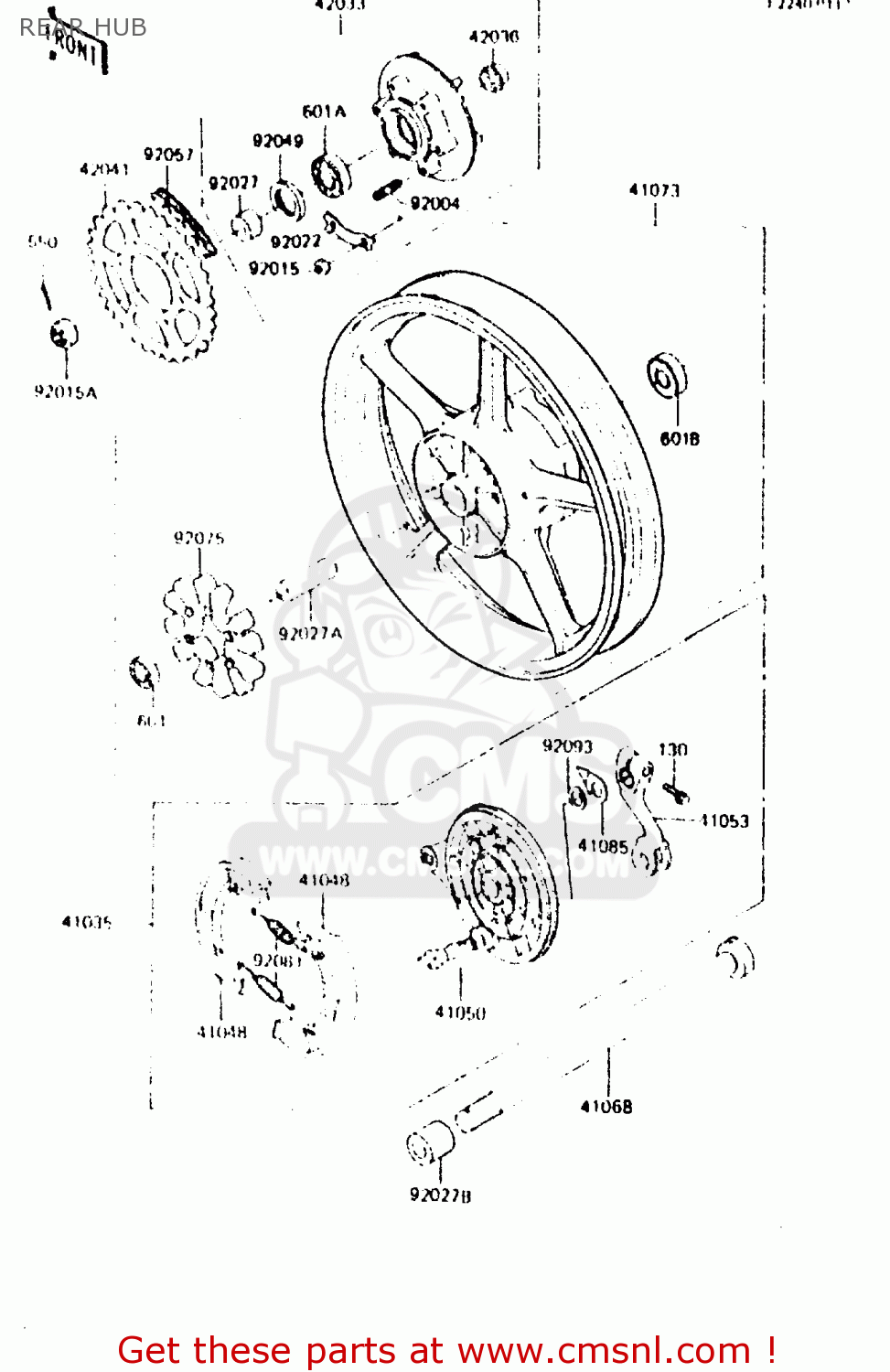

REAR HUB

ref

part #

description

quantity

41035

410351106
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 330.00

41048

41048020
ref: 41048

SHOE,BRAKE (MCA)

€ 26.00

41050

410501008
ref: 41050

CAM-BRAKE

€ 21.50

41053

410531031
ref: 41053

LEVER-BRAKE CAM

€ 49.00

41068

410681086
ref: 41068

AXLE,RR

€ 49.00

41073

41073118121
ref: 41073

WHEEL-ASSY,RR,F.BLACK

€ 534.50

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42035

420331049
ref: 42035

COUPLING-ASSY

€ 224.50

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411054
ref: 42041

SPROCKET,REAR,38T

€ 43.00

92004

920041050
ref: 92004

STUD,10X21

€ 4.50

92015

42045005
ref: 92015

NUT,10MM

€ 5.00

92015A

92015055
ref: 92015A

NUT,16MM

€ 8.00

92022

920221212
ref: 92022

WASHER,LOCK

€ 4.00

92027

920271434
ref: 92027

COLLAR,L=22.5

€ 12.00

92027A

920271525
ref: 92027A

COLLAR,WHEEL,RR,L=77

€ 6.00

92027B

920271526
ref: 92027B

COLLAR,AXLE,RR,RH,L=4

€ 10.50

92049

92052006
ref: 92049

OIL SEAL WTC35527

€ 6.50

92057

920571077
ref: 92057

CHAIN,DRIVE,EK530SH-O

€ 126.00

92075

920751393
ref: 92075

DAMPER,COUPLING

€ 61.00

92081

42020004
ref: 92081

SPRING-BRAKE SHOE

€ 5.50

92093

41051003
ref: 92093

DUST SHIELD-BRAKE CAM

€ 2.50

130

130G0825
ref: 130

BOLT,FLANGED,8X25

€ 0.50

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203Z
ref: 601

BEARING-BALL,#6203ZC3

€ 24.00

601A

601B6205
ref: 601A

BEARING-BALL,#6205C3

€ 14.00

601B

601B6303Z
ref: 601B

BEARING-BALL,#6303ZC3

€ 17.50

all assemblies
