CARBURETOR
ZR550A2 1984 EUROPE UK WG

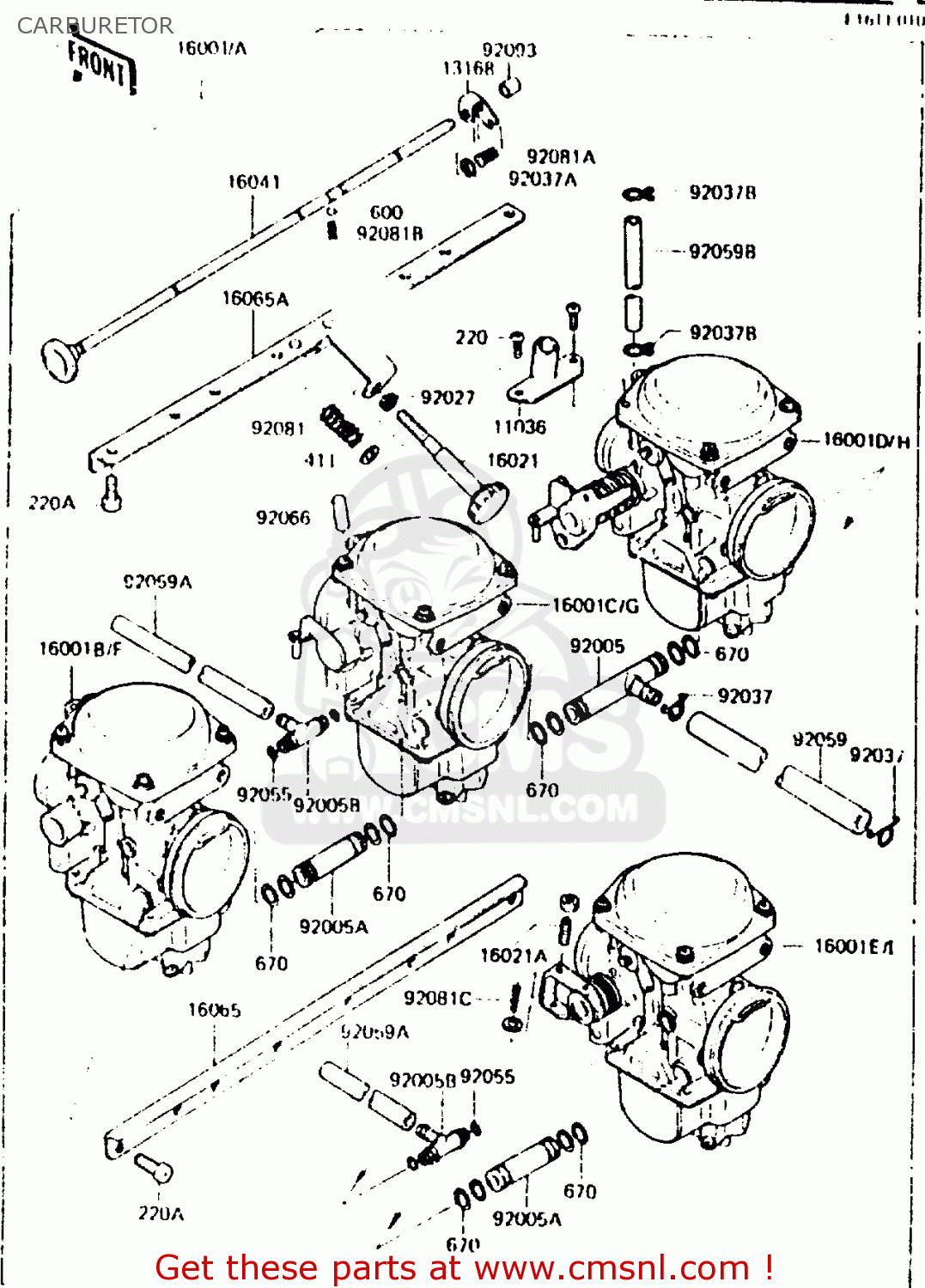

Carburetor diagram ZR550A2 1984 EUROPE UK WG
CARBURETOR ZR550A2 1984 EUROPE UK WG
×
prices are in EUR
ref
part #
description
quantity
11036
110361760
ref: 11036
BRACKET-A,THROTTLE
€ 16.50
13168
131681110
ref: 13168
LEVER
€ 3.50
16001
160011785
ref: 16001
EU, UK
CARBURETOR
€ 1,037.50
16001A
160011786
ref: 16001A
WG
CARBURETOR
€ 869.50
16001B
160011854
ref: 16001B
EU, UK
CARBURETOR,LH,OUTSIDE
€ 271.50
16001C
160011855
ref: 16001C
EU, UK
CARBURETOR,LH,INSIDE
€ 271.50
16001D
160011856
ref: 16001D
EU, UK
CARBURETOR,RH,INSIDE
€ 271.50
16001E
160011857
ref: 16001E
EU, UK
CARBURETOR,RH,OUTSIDE
€ 271.50
16001F
160011872
ref: 16001F
WG
CARBURETOR,LH,OUTSIDE
€ 271.50
16001G
160011873
ref: 16001G
WG
CARBURETOR,LH,INSIDE
€ 271.50
16001H
160011874
ref: 16001H
WG
CARBURETOR,RH,INSIDE
€ 271.50
16001I
160011875
ref: 16001I
WG
CARBURETOR,RH,OUTSIDE
€ 271.50
16021
160211038
ref: 16021
SCREW-THROTTLE STOP
€ 12.00
16021A
160211043
ref: 16021A
SCREW-THROTTLE STOP
€ 6.50
16041
160411027
ref: 16041
SHAFT-CARBURETOR,STAR
€ 40.50
16065
160651057
ref: 16065
HOLDER-CARBURETOR
€ 42.00
16065A
160651058
ref: 16065A
HOLDER-CARBURETOR
€ 20.50
92005
920051020
ref: 92005
FITTING,FUEL,T-TYPE
€ 20.50
92005A
920051021
ref: 92005A
FITTING,FUEL,I-TYPE
€ 20.00
92005B
920051058
ref: 92005B
FITTING
€ 9.50
92027
920271432
ref: 92027
COLLAR,STOP SCREW
€ 6.00
92037
920371158
ref: 92037
CLAMP,FUEL HOSE
€ 4.50
92037A
920371302
ref: 92037A
CLAMP
€ 2.00
92037B
920371378
ref: 92037B
CLAMP,TUBE
€ 6.00
92055
920551134
ref: 92055
RING-O
€ 4.50
92059
920591214
ref: 92059
TUBE
€ 10.50
92059A
920591215
ref: 92059A
TUBE
€ 7.50
92059B
920591260
ref: 92059B
TUBE,5X9X220
€ 10.50
92066
92068006
ref: 92066
RUBBER PLUG
€ 2.50
92081
920811193
ref: 92081
SPRING,ADJUST SCREW
€ 4.50
92081A
920811439
ref: 92081A
SPRING
€ 2.50
92081B
920811440
ref: 92081B
SPRING,SHAFT STOP
€ 3.00
92081C
920811442
ref: 92081C
SPRING
€ 2.50
92093
920931074
ref: 92093
SEAL
€ 6.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
220A
220B0614
ref: 220A
SCREW-PAN HEAD,6X14
€ 2.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
600
600A0400
ref: 600
BALL-STEEL,1/8
€ 2.00
670
670B1507
ref: 670
O RING,7MM
€ 1.00
