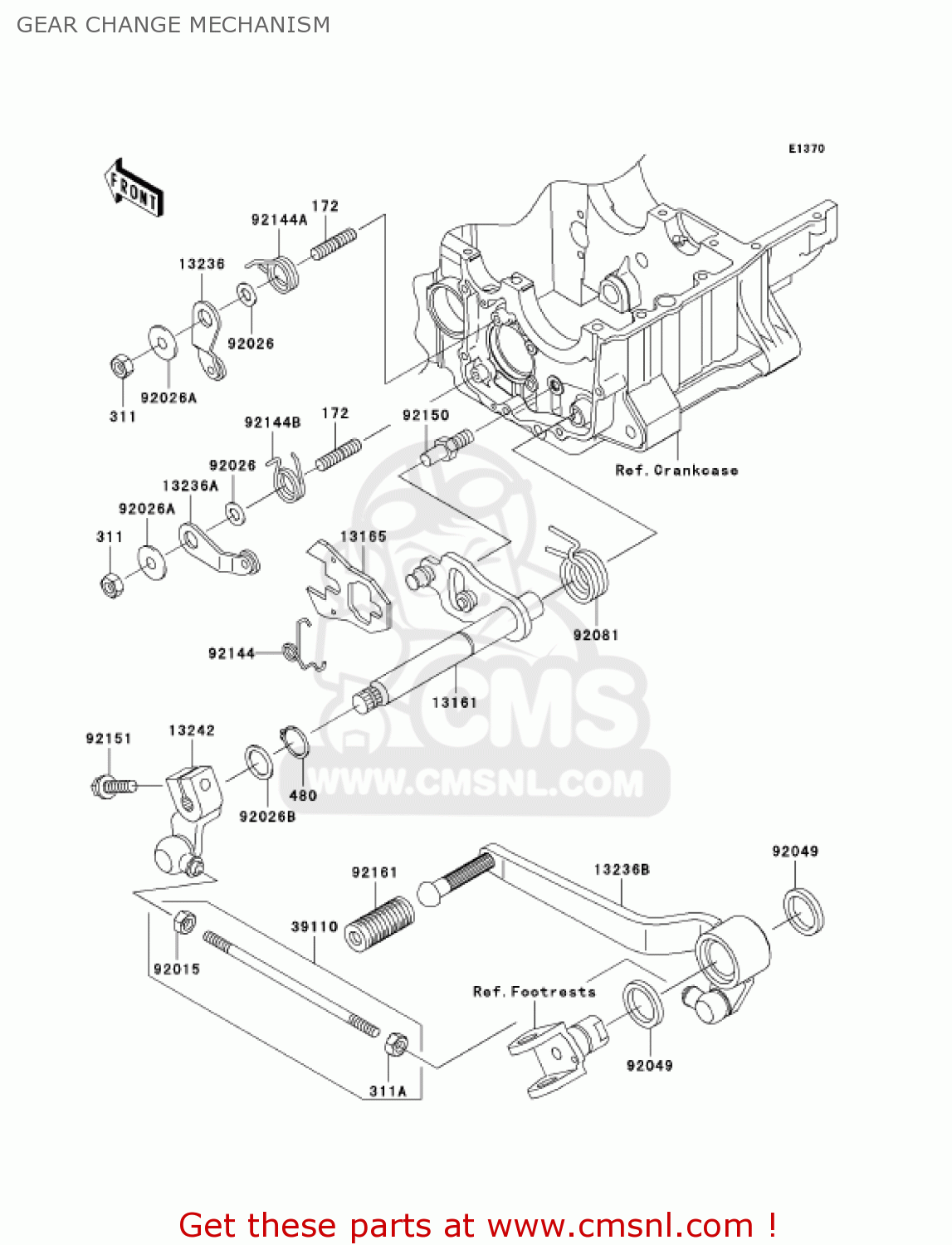

GEAR CHANGE MECHANISM

ref

part #

description

quantity

172

172G0614
ref: 172

STUD,6X14

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

311A

311J0600
ref: 311A

NUT-HEX

€ 1.00

480

480J1300
ref: 480

CIRCLIP-TYPE-C,13MM

€ 2.50

13161

131611155
ref: 13161

LEVER-COMP-CHANGE SHA

€ 76.50

13165

131651120
ref: 13165

PAWL

€ 9.50

13236

132361103
ref: 13236

LEVER-COMP,GEAR POSIT

€ 13.00

13236A

132361216
ref: 13236A

LEVER-COMP,GEAR POSIT

€ 9.00

13236B

132361365
ref: 13236B

LEVER-COMP,PEDAL

€ 51.50

13242

132421323
ref: 13242

LEVER-ASSY-CHANGE,LIN

€ 32.50

39110

391101106
ref: 39110

ROD-ASSY-TIE

€ 8.00

92015

920151178
ref: 92015

NUT

€ 2.50

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92026B

920261532
ref: 92026B

SPACER

€ 3.00

92049

920491492
ref: 92049

SEAL-OIL

€ 6.00

92081

920811869
ref: 92081

SPRING,CHANGE PEDAL R

€ 7.00

92144

921441029
ref: 92144

SPRING

€ 5.00

92144A

921441856
ref: 92144A

SPRING

€ 6.50

92144B

921441857
ref: 92144B

SPRING,GEAR POSITION

€ 6.00

92150

921501869
ref: 92150

BOLT,RETURN SPRING

€ 7.00

92151

921511450
ref: 92151

BOLT,6X20

€ 1.50

92161

921611300
ref: 92161

DAMPER,CHANGE PEDAL

€ 4.00
