Genuine ZR Kawasaki Parts delivered quickly!


CHASSIS ELECTRICAL EQUIPMENT

ZR1200A5 ZRX1200R 2005 USA CALIFORNIA CANADA

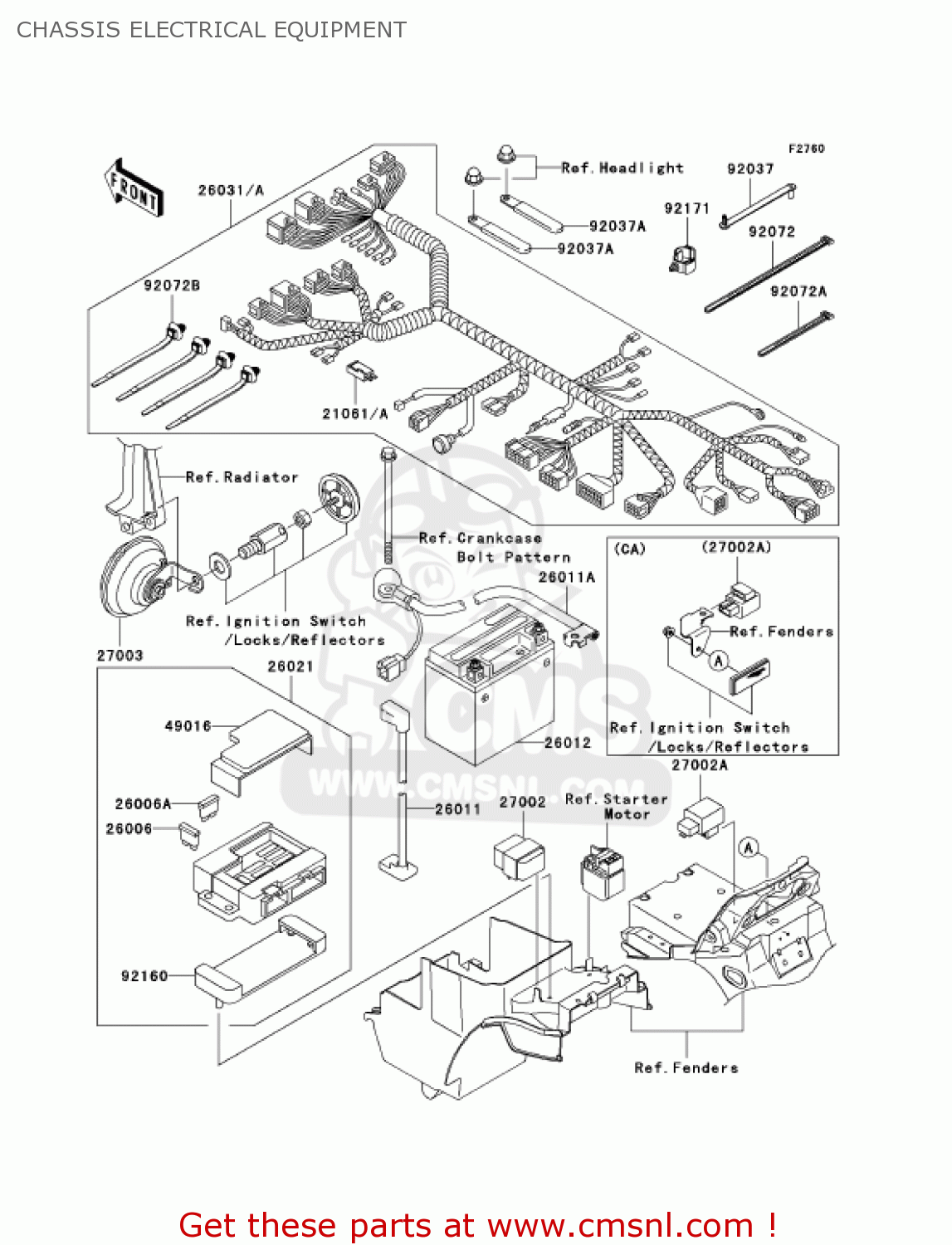

Chassis electrical equipment diagram ZR1200A5 ZRX1200R 2005 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT ZR1200A5 ZRX1200R 2005 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZR1200A5 ZRX1200R 2005 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT ZR1200A5 ZRX1200R 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
21061
210610001
ref: 21061
[CA]
RECTIFIER
210610001
€ 24.00
21061A
210611059
ref: 21061A
[CN,US
RECTIFIER
210611059
€ 29.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111792
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 26.50
26011A
260111793
ref: 26011A
WIRE-LEAD,BATTERY(-)
€ 27.50
26012
260120047
ref: 26012
BATTERY,FTX14-BS,12V
€ 135.50
26021
260211096
ref: 26021
JUNCTION BOX
260211096
€ 112.00
26031
260310005
ref: 26031
[CN,US
HARNESS,MAIN
€ 112.00
26031A
260310232
ref: 26031A
[CA]
HARNESS,MAIN
€ 198.00
27002
270021078
ref: 27002
RELAY-ASSY,HEAD LAMP
270021078
€ 60.00
27002A
270021101
ref: 27002A
RELAY-ASSY,TURN SIGNA
270021101
€ 49.50
27003
270031424
ref: 27003
HORN,RH
270031424
€ 61.00
49016
490161177
ref: 49016
COVER-SEAL,FUSE
490161177
€ 7.00
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037A
920371993
ref: 92037A
CLAMP
920371993
€ 3.50
92072
920721237
ref: 92072
BAND,L=250
920721237
€ 2.00
92072A
920721293
ref: 92072A
BAND
920721293
€ 6.50
92072B
920721414
ref: 92072B
BAND
920721414
€ 2.00
92160
921601650
ref: 92160
DAMPER,JUNCTION BOX
921601650
€ 9.50
92171
921711415
ref: 92171
CLAMP,C CRIP,DIA=13
921711415
€ 1.50
