IGNITION SYSTEM

ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST

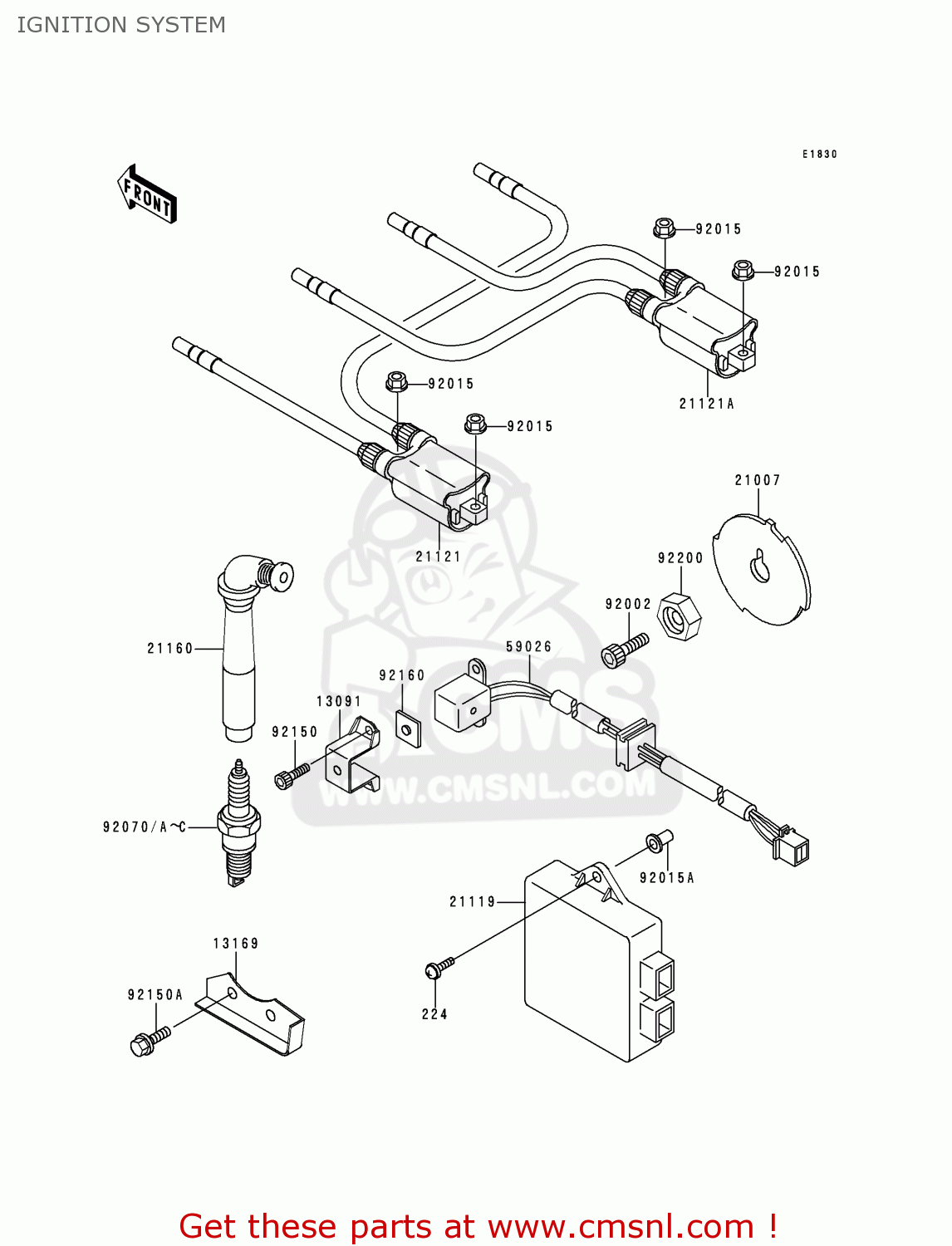

Ignition system diagram ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST

IGNITION SYSTEM ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST
IGNITION SYSTEM ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST
IGNITION SYSTEM ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST
prices are in EUR
ref
part #
description
quantity
224
224C0625
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
13091
130911562
ref: 13091
HOLDER
130911562
€ 5.50
13169
131691748
ref: 13169
PLATE,CHAIN GUIDE
131691748
€ 10.50
21007
210071277
ref: 21007
ROTOR,PULSING
210071277
€ 31.50
21119
211191491
ref: 21119
IGNITER
€ 587.50
21121
211211267
ref: 21121
COIL-IGNITION,#1&#4
211211267
€ 178.50
21121A
211211268
ref: 21121A
COIL-IGNITION,#2&#3
211211268
€ 167.50
21160
211601087
ref: 21160
CAP-ASSY-PLUG
211601087
€ 30.50
59026
590261132
ref: 59026
COIL-PULSING
590261132
€ 114.50
92002
920021442
ref: 92002
BOLT,SOCKET,8X25
920021442
€ 3.00
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92015A
920151700A
ref: 92015A
NUT
920151700A
€ 5.50
92070

ref: 92070
92070A

ref: 92070A
92070B
920701264
ref: 92070B
CR9EK (NGK SPARKPLUG)
€ 8.50
92070C
920701265
ref: 92070C
CR8EK (NGK SPARKPLUG)
€ 10.00
92150
921501180
ref: 92150
BOLT
921501180
€ 2.50
92150A
921501841
ref: 92150A
BOLT,6X12
€ 3.50
92160
921601091
ref: 92160
DAMPER
921601091
€ 3.00
92200
922001173
ref: 92200
WASHER,ROTOR
922001173
€ 6.50
