BRAKE PEDAL

ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST

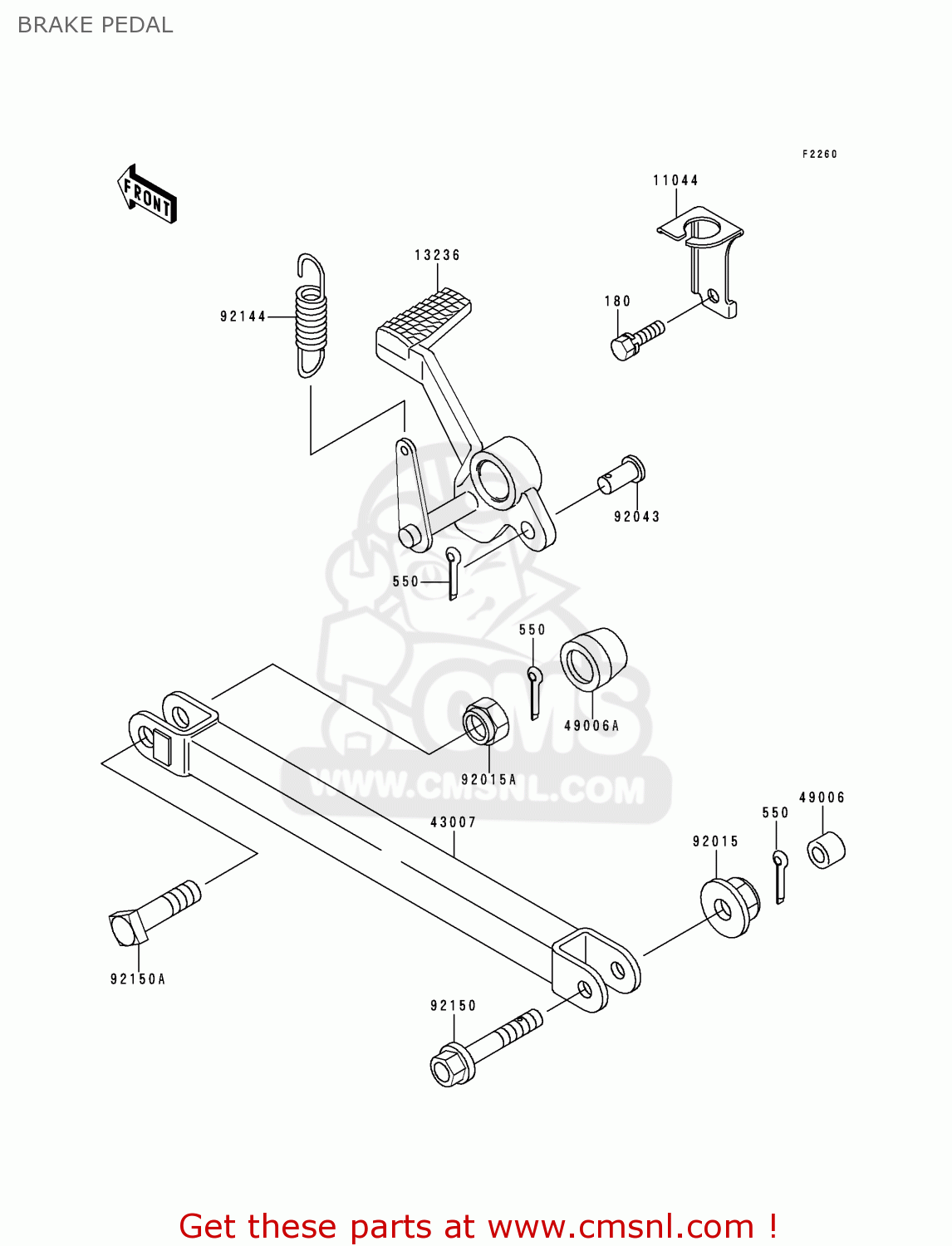

Brake pedal diagram ZR1100D3 ZRX1100 1999 EUROPE FR NL GR IT NR ST

prices are in EUR

ref

part #

description

quantity

180

180H0614
ref: 180

BOLT-UPSET-WS

€ 1.00

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

11044

110441107
ref: 11044

BRACKET,RR BRAKE SWIT

€ 6.50

13236

132361293
ref: 13236

LEVER-COMP,PEDAL

€ 81.00

43007

430071184
ref: 43007

ROD-TORQUE

€ 35.50

49006

490061218
ref: 49006

BOOT

€ 3.50

49006A

490061275
ref: 49006A

BOOT

€ 3.00

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151883
ref: 92015A

NUT,10MM

€ 6.00

92043

920431303
ref: 92043

PIN,8MM

€ 2.50

92144

921441470
ref: 92144

SPRING,EXHAUST CONNEC

€ 4.00

92150

921501539
ref: 92150

BOLT,FLANGED,8X47

€ 6.50

92150A

921501598
ref: 92150A

BOLT,10X39.5

€ 5.00
